Anytronics 4 Way Lighting Dimming Panel Analogue or DMX

Code: AMD4
Availability: Please select an option
  • 0 to +10V Analogue or DMX Control
  • Plug & Play with Anytronics Dimmers
  • 4 Way Horizontal Manual Faders
  • Fits a Standard UK Double Pattress Box
  • Robust 60mm Metal Construction Sliders
  • Vertical or Horizontal Mounting
Please Select:
From £98.00 inc VAT

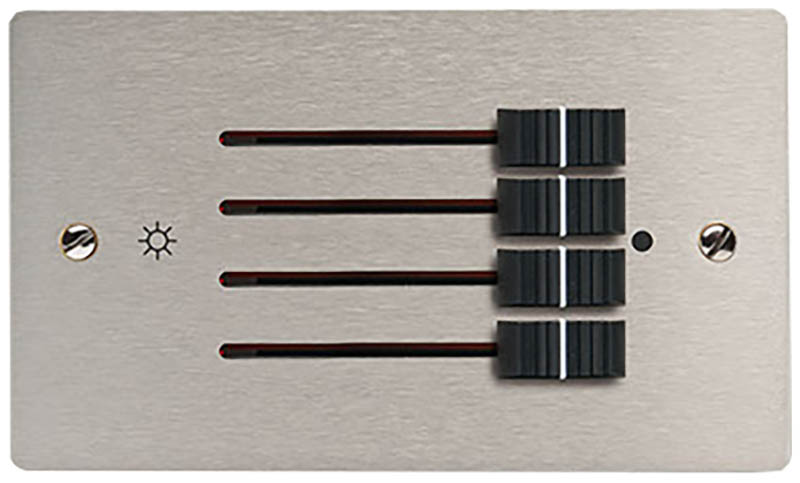

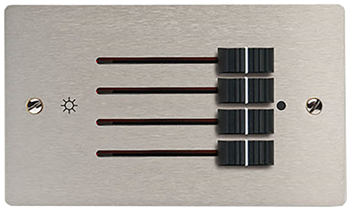

A 4 Channel dimmer controller available in an analogue or DMX version. The analogue wall panel uses the +10V reference supply available from most of the Anytronics range of dimming packs to control between 1 and 4 channels of dimming via the 4 sliders, connections are controlled via wired terminals. The DMX version can be connected to most of the Anytronic range of Dimmers via a RJ45 connector. The panel can be mounted vertically or horizontally and fits a standard UK double pattress box (to be purchased separately). A brushed stainless steel finish with robust 60mm metal sliders make this ideal for any installation.

Dimensions: 148 x 86 x 15mm
Weight: 0.5Kg
