1 to 2 Zone 100V Mixer Amplifier with Media Player Bluetooth USB SD Card 240W

Code: QAMP240L
Availability: Expected Soon
  • 100V Line Amplifier 240W
  • Mixer Section with 1 x Line Level & 3 x Microphone Sources
  • Switchable Music Source
  • Internal Media Player, USB, Tuner, SD and Bluetooth
  • MP3 File Name Readout
  • Jingle Player with up to 3 Jingles
  • Adjustable Auto Talk-Over
  • Phoenix Compatible Speaker Output

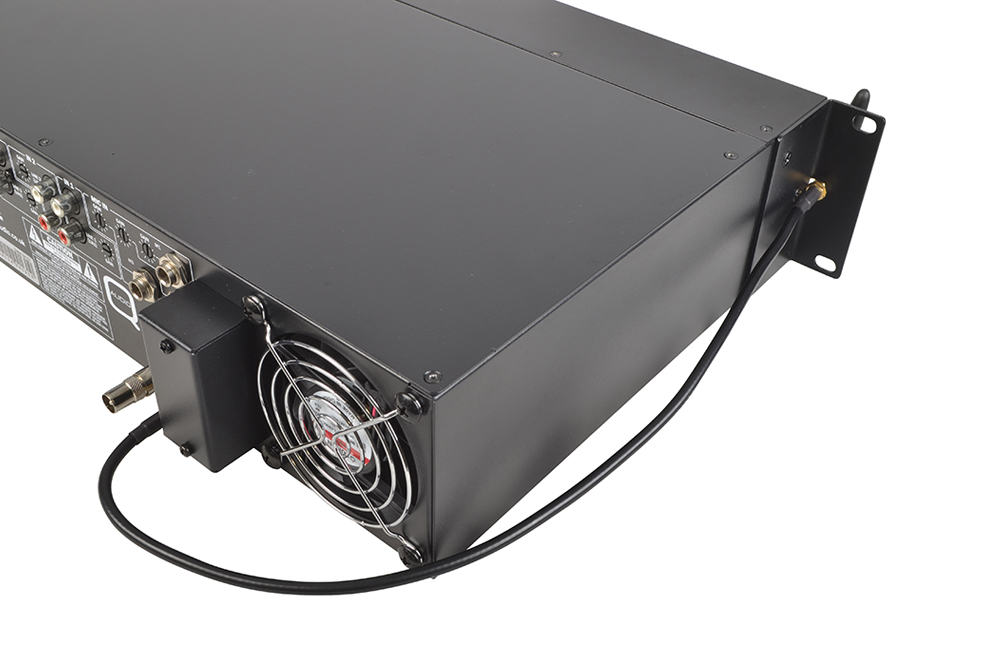

  • Silent Fan Cooling
  • Emergency Priority Input & Output
£499.00 inc VAT

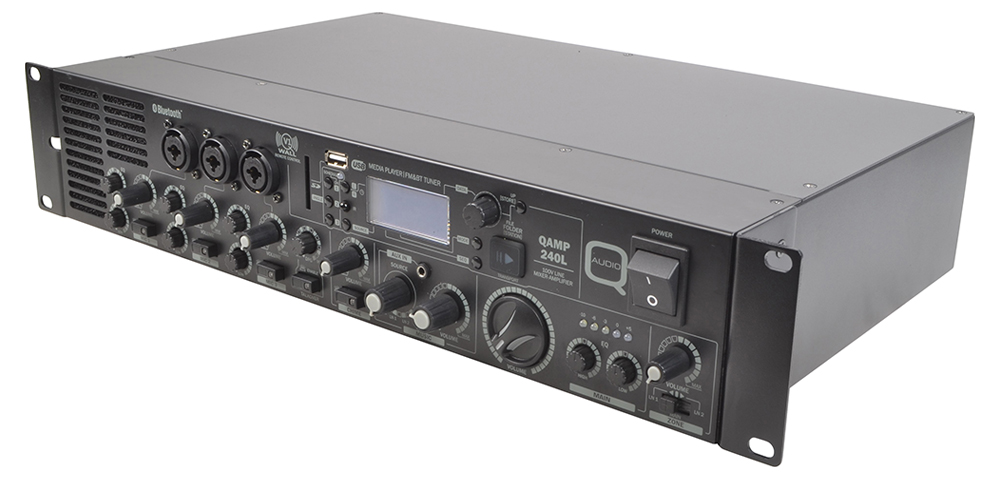

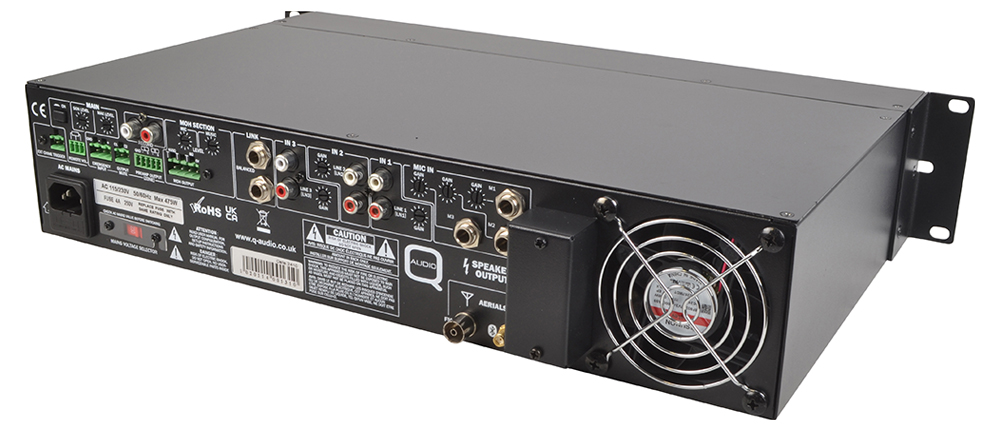

The Q Audio QAMP240L is a high-impedance installation amplifier, delivering a powerful 240W output at 100V line, ideal for professional audio applications in bars, restaurants, gyms, and schools. Featuring a versatile mixer section, it accommodates one music source and three microphone inputs. The music source can be switched between an internal media player and three external line inputs, with adjustable gain and an additional 3.5mm front-panel jack for quick device connection.

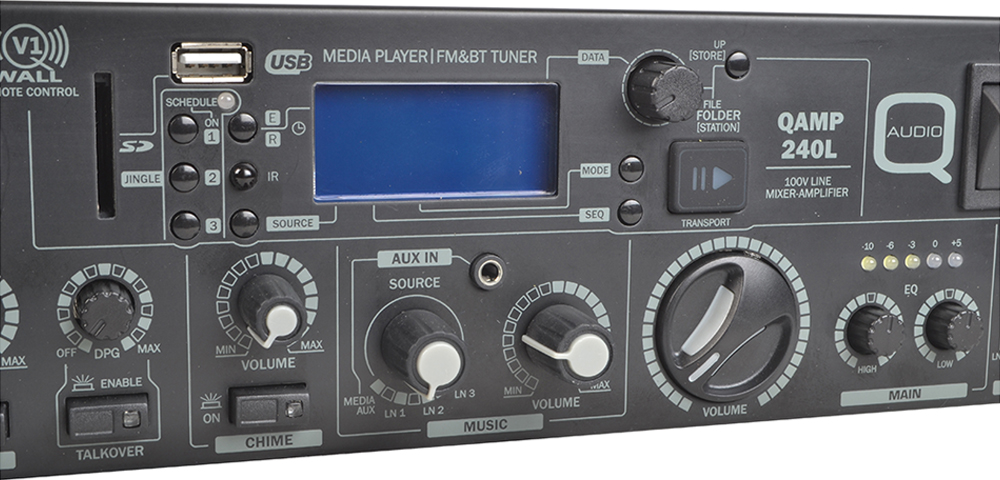

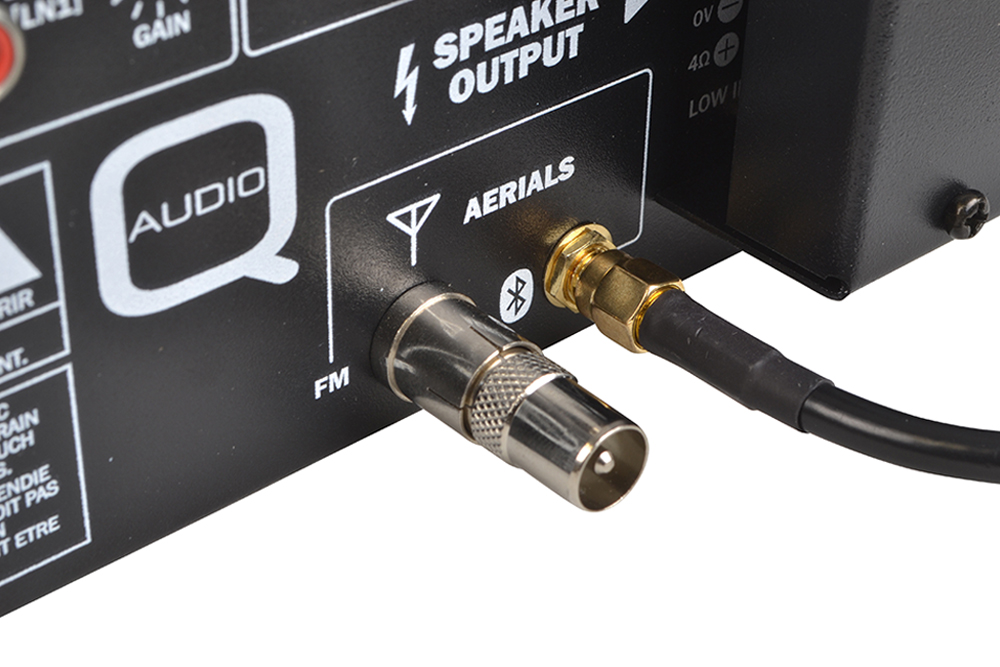

The built-in media player supports FM tuner, Bluetooth, USB drives, and SD cards up to 16GB (approximately 2000 songs), with MP3 file name display on a large LCD screen. It offers standard and random play modes, elapsed/remaining time display, and FM tuner with RDS information. An additional jingle player allows up to three jingles to be scheduled or triggered via front-panel switches—ideal for announcements and advertisements.

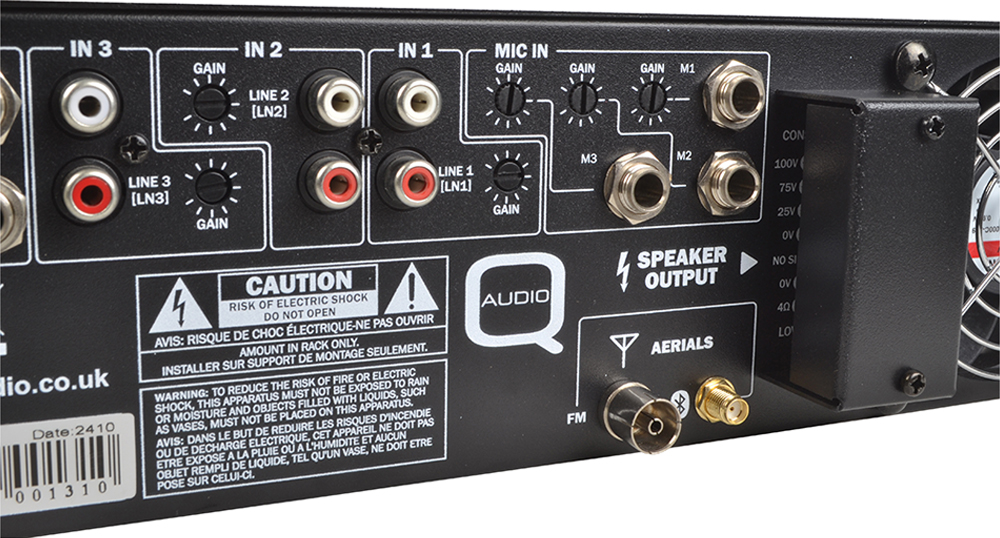

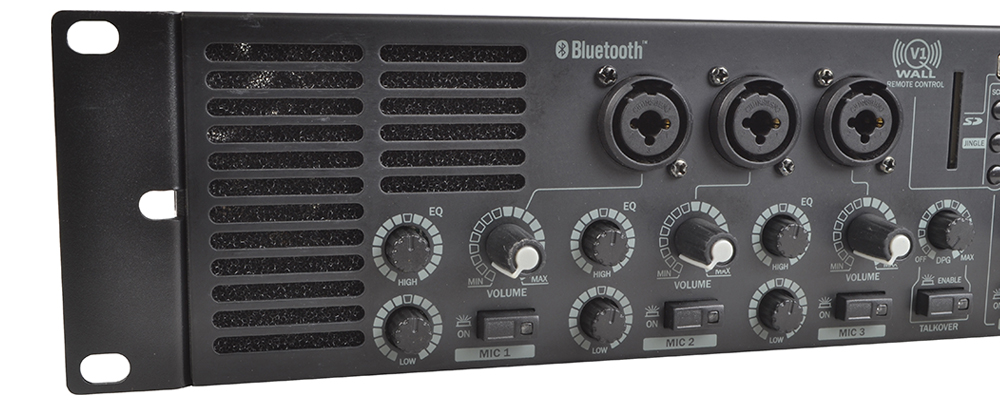

Microphone inputs are equipped with phantom power, an isolation transformer (Mic 1 only), low-pass filter, rear gain control, and front-panel volume, EQ, and on/off switch. An adjustable auto talk-over feature ensures seamless volume reduction for music during announcements.

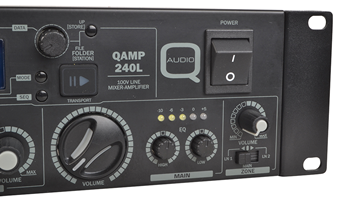

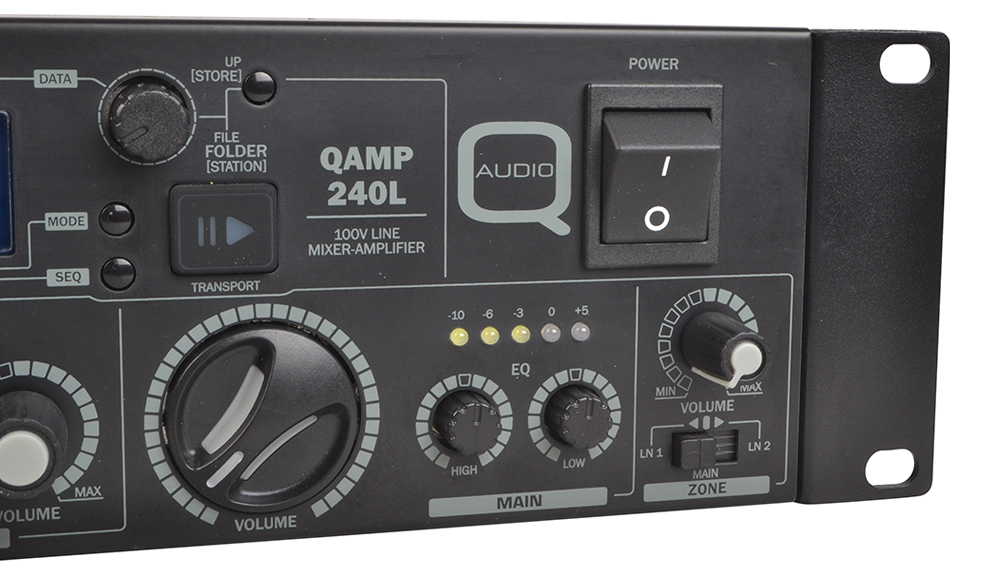

The master section includes a 2-band EQ, a 5-LED output level meter, and a maximum level control located on the rear. Remote volume control is supported via an external potentiometer (QWALLV1, sold separately). The master section also includes a chime sound generator with adjustable volume, external trigger, and user-loadable sounds on a memory card.
For zoning flexibility, the QAMP240L offers a dedicated zone section with independent volume control, assignable to the master signal or a specific rear-panel line input. The zone output can be connected to an additional amplifier if needed.

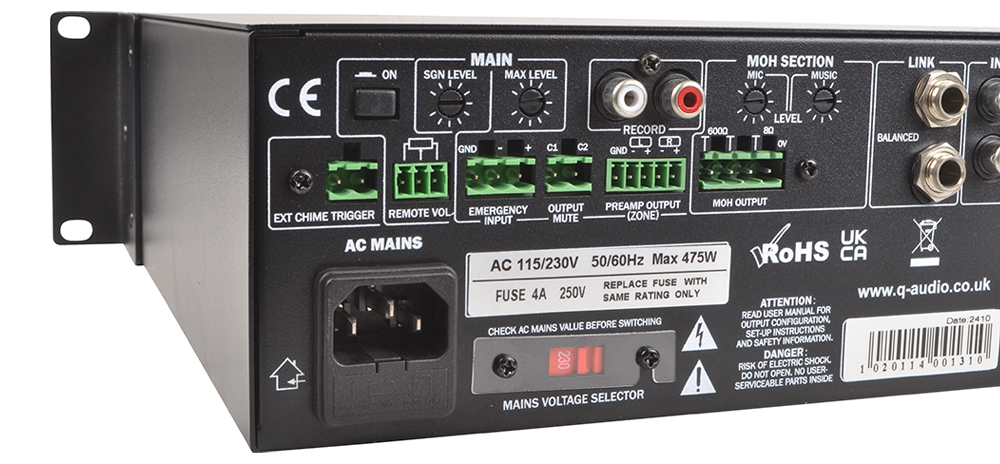

Emergency audio management is supported with an emergency priority input and an output mute contact, ensuring that emergency messages override all other audio when required.

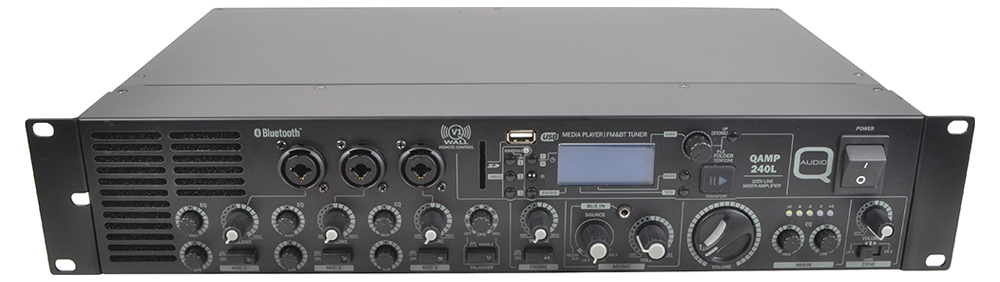

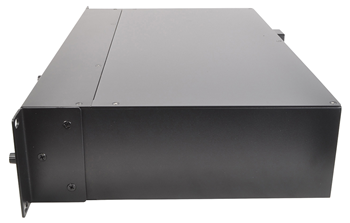

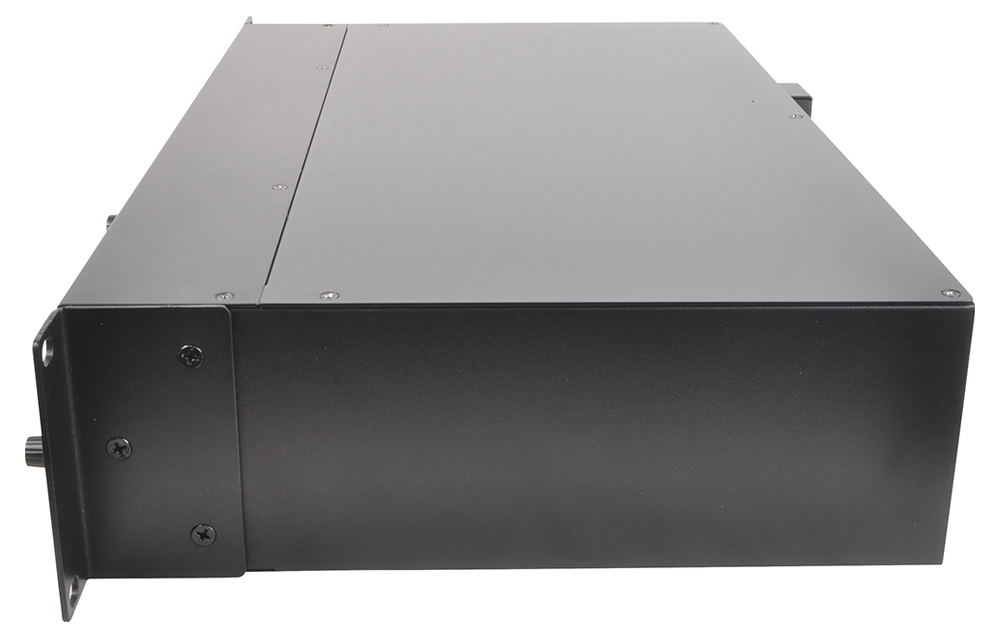

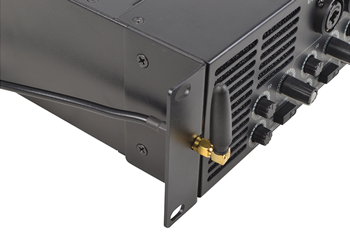

This amplifier is housed in a durable 19” 2U metal enclosure with detachable rack ears, providing both reliability and ease of installation.

Power Supply: 115-230Vac, 50/60Hz
Power: 1 x 240W (100V)
Signal Inputs: 3 x Mic/Line (XLR/Jack) & 1 x 3.5mm Jack
Speaker Outputs: Terminal
Frequency Range: 20Hz-20kHz
Dimensions: 483 x 237 x 88.5mm
Weight: 9.55Kg
