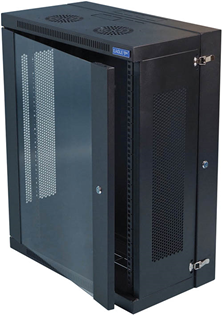

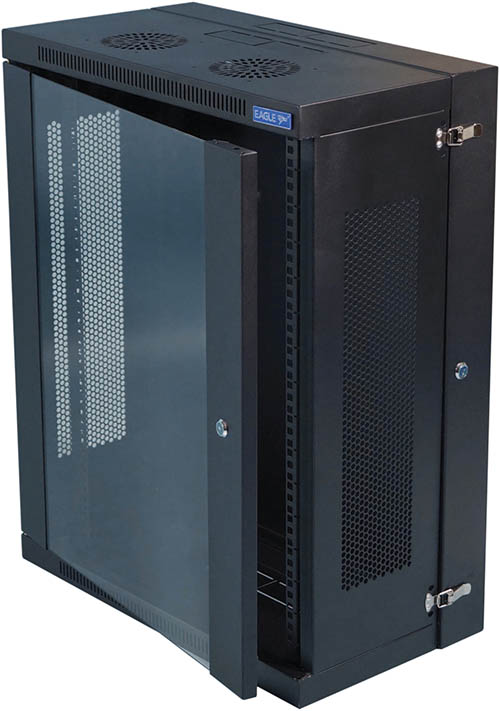

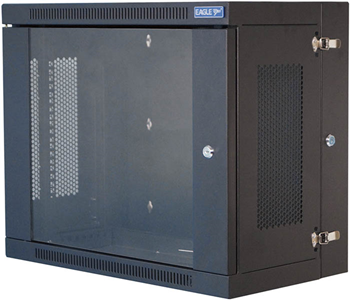

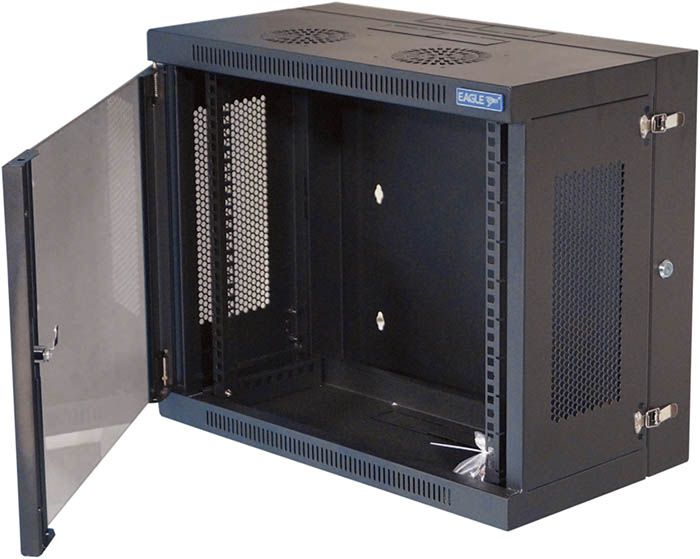

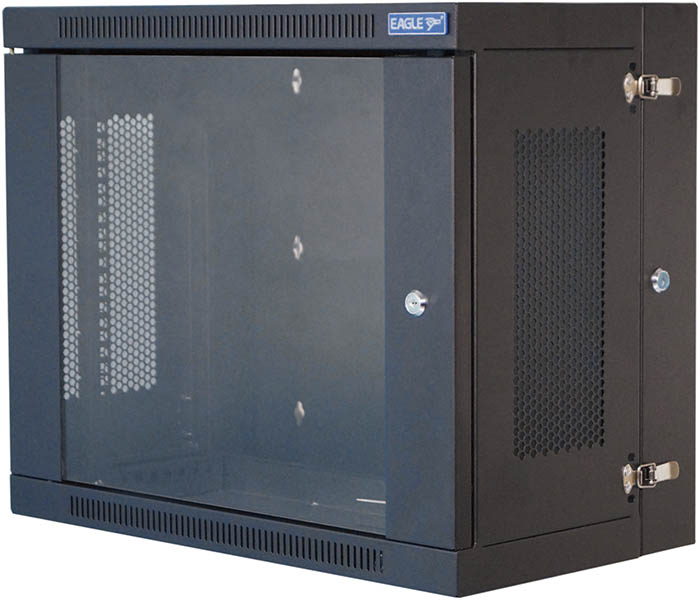

Wall Mounting Rack Cabinet With Hinged Back & Glass Locking Door - Choice of Size

Availability: Please select an option
  • Ventilation Slots Top & Bottom

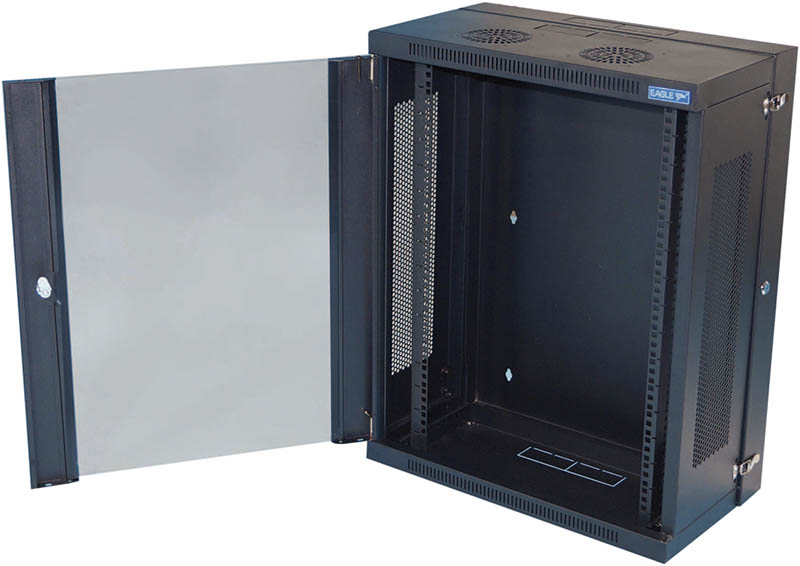

  • Lockable & Detachable Glass Front Door

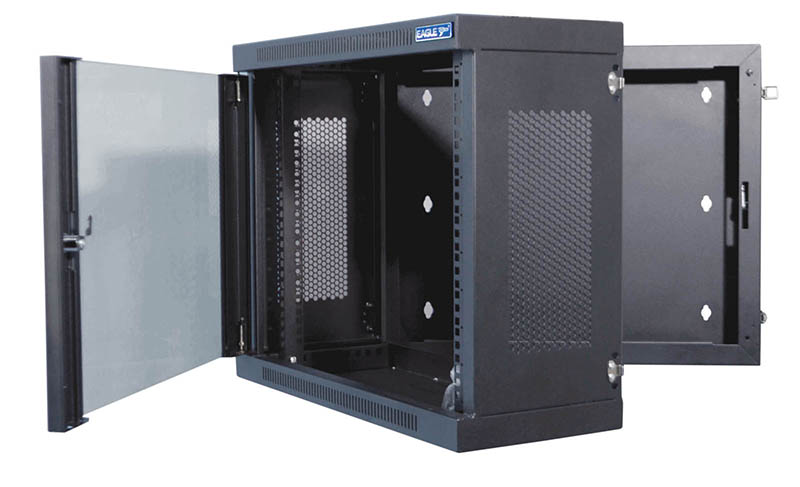

  • Lockable Hinged Back for Rear Access

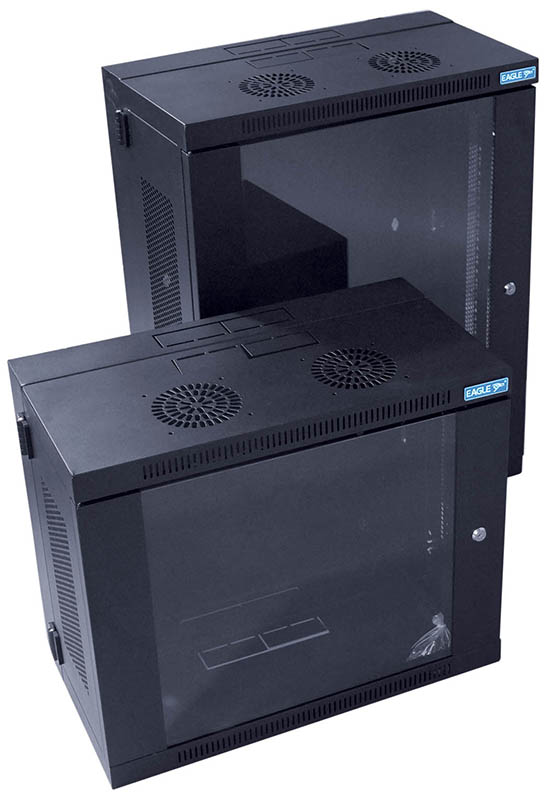

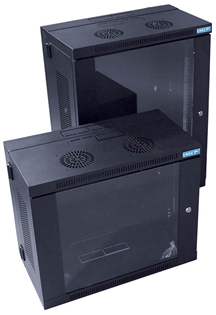

  • Available in Various Sizes
Please Select:
From £145.00 inc VAT

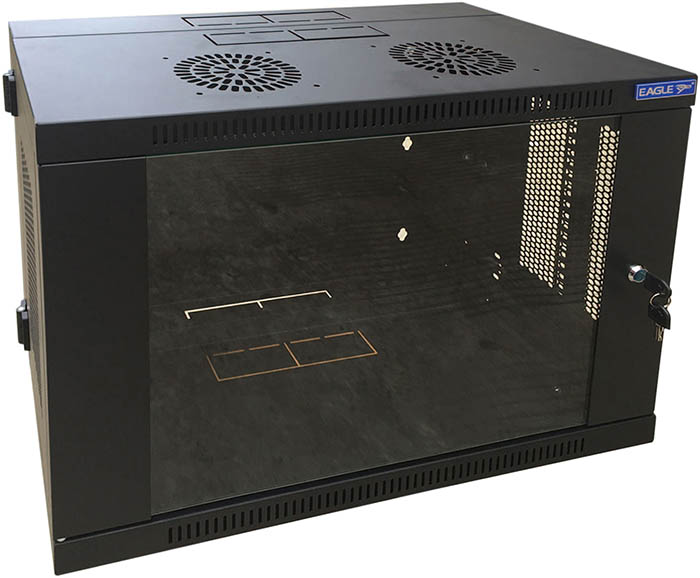

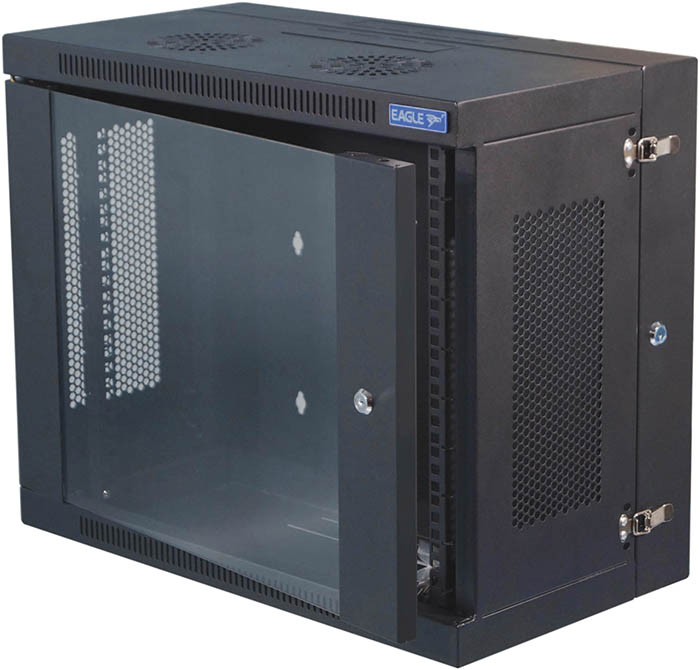

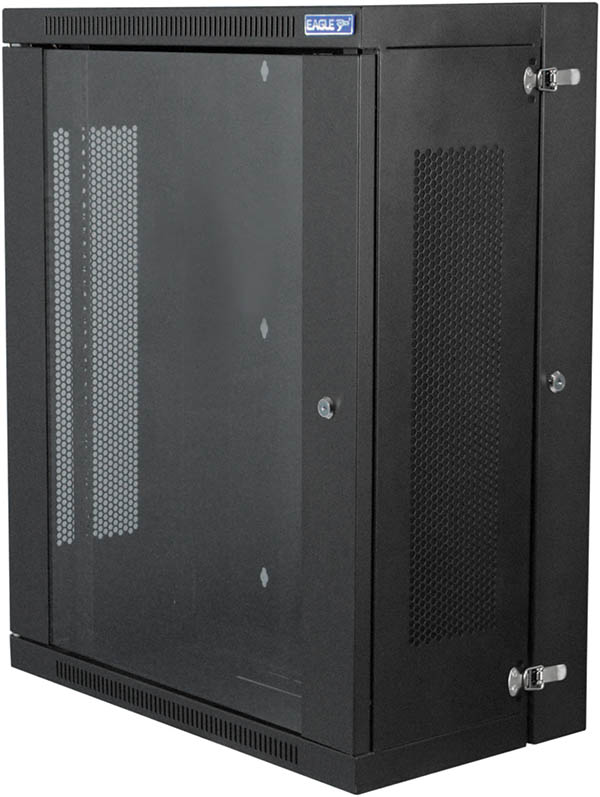

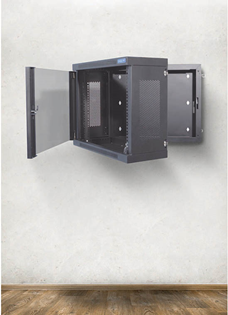

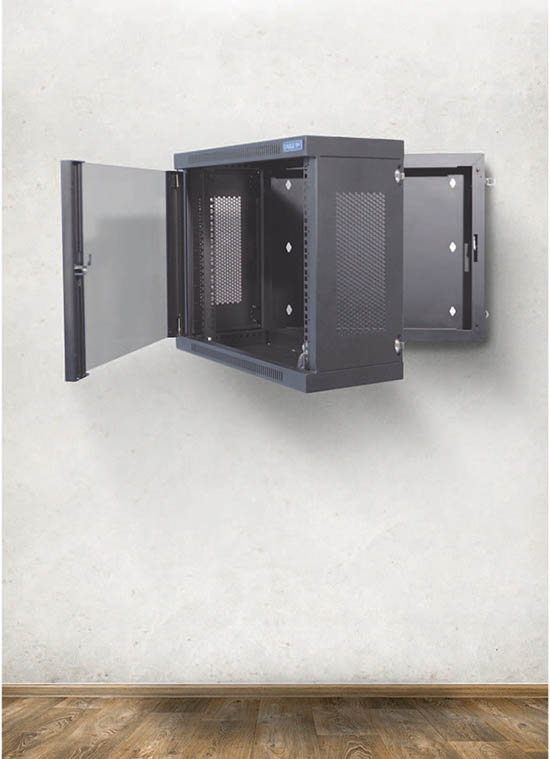

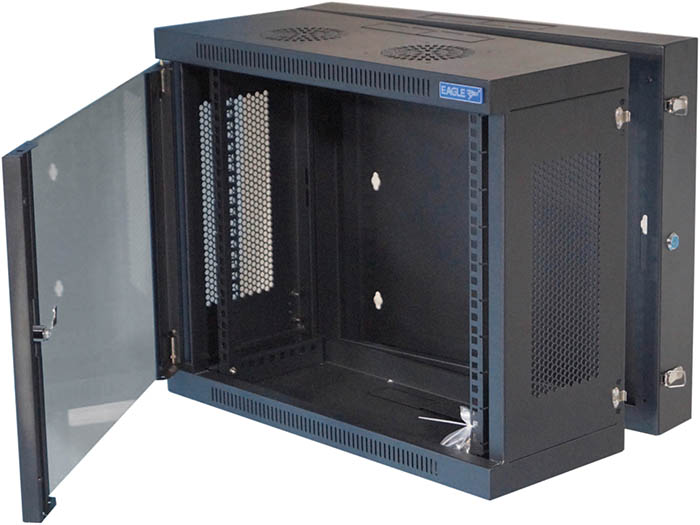

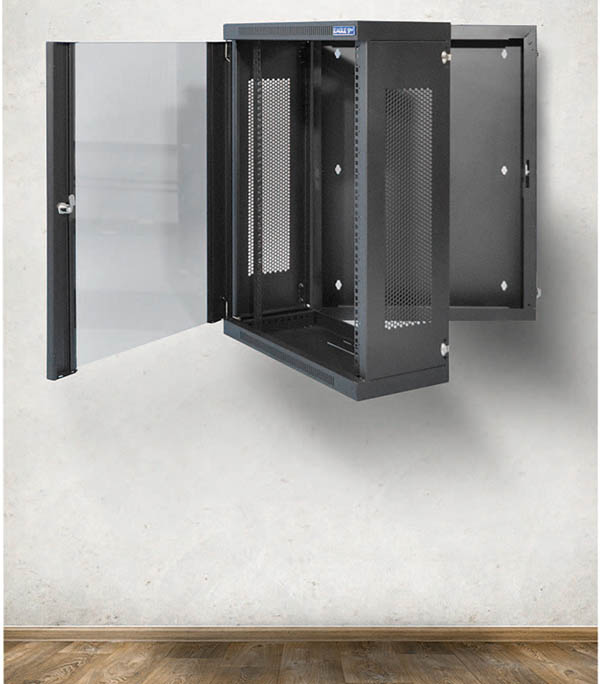

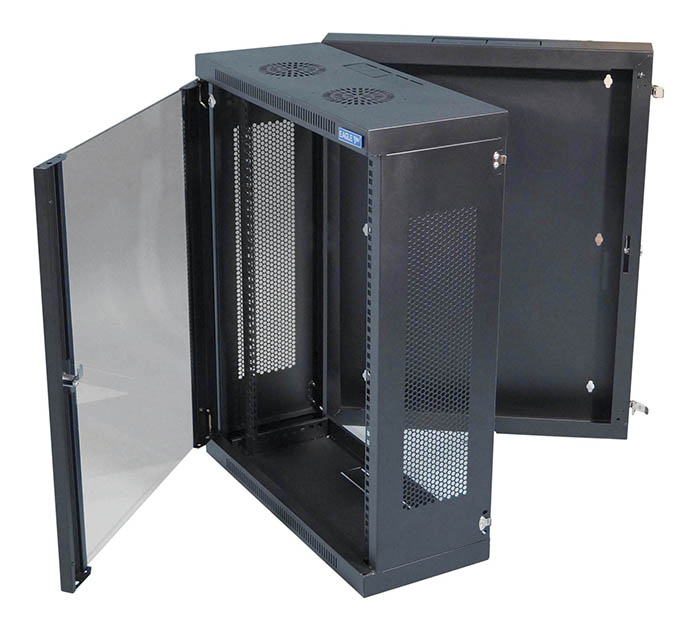

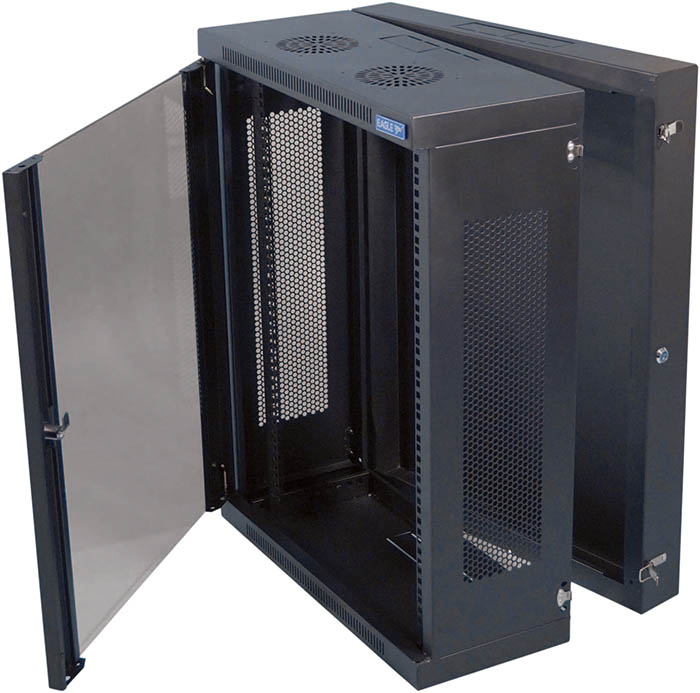

These rear hinged cabinet swing out 90° from the wall to provide accessibility to the rear of equipment without removing them. Ideal for the user or installer that is constantly adding or changing hardware and cables. The compact design of the Eagle 19" Wall Mounting Cabinets make them ideal for smaller networks and work groups. Each cabinet utilises a locking glass front door and is manufactured from high-quality SPCC- cold rolled steel. The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable depth front mounting profile. A gland plate is situated in the top and bottom of the cabinet, with top and bottom fan kit holes for additional cooling. The cabinets feature ventilation slots top and bottom, with a lockable and Detachable glass front door and lockable hinged back for rear access. The cabinet meets ANSI/EAI RS-310-D, DIN-41491, PAIT1, IEC41494, PART7, GB/T3047.2-92 standards. Compatible with 19" international standard, metric standards and ETSI standards.

Rack Size: 6U
Dimensions: 330 x 370 x 600mm
Weight: 12.3Kg

Rack Size: 9U
Dimensions: 330 x 500 x 600mm
Weight: 15.1Kg

Rack Size: 12U
Dimensions: 330 x 533 x 600mm
Weight: 18Kg

Rack Size: 15U
Dimensions: 330 x 770 x 600mm
Weight: 21Kg

Rack Size: 18U
Dimensions: 330 x 900 x 600mm
Weight: 24Kg
