19" Steel Rack Case with Glass Door 600mm Depth with Choice of U Size (4U to 22U)

Code: RACK600
Availability: Please select an option
  • Durable Epoxy Powder Coated Finish

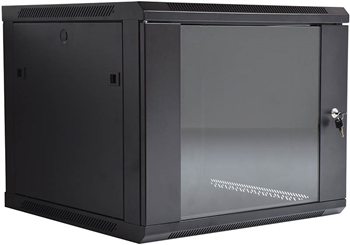

  • Supplied with Glass Door, Lock and 2 Keys
  • 600mm Deep
  • Clip-In Side Panels for Easy Access
  • Wall Mountable or Free-Standing
  • Easy to Assemble with Adjustable Front & Rear Rack Strips
  • Top and Bottom Knock-Outs for Cable feeds
Please Select:
Size
From £144.00 inc VAT
Add

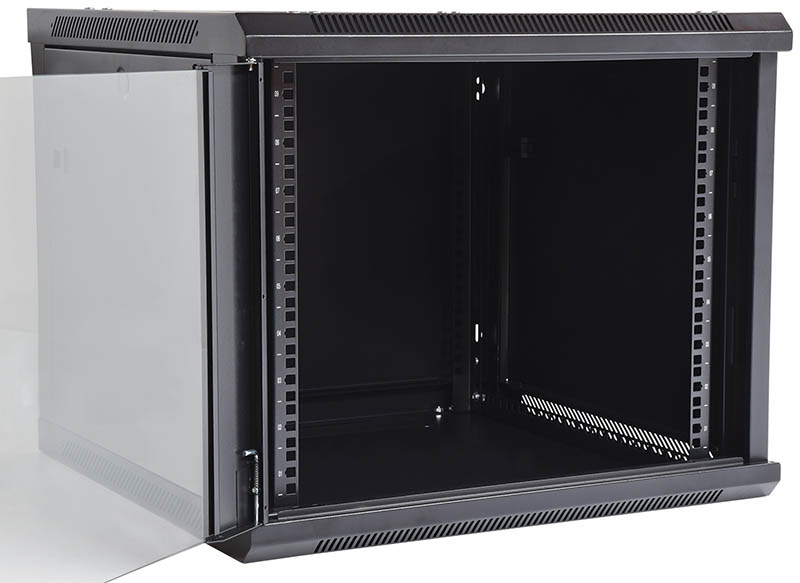

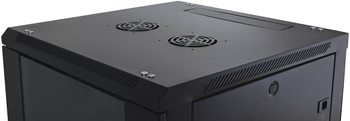

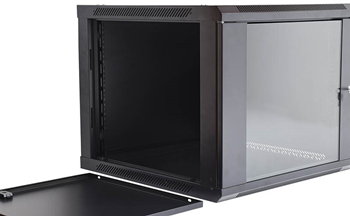

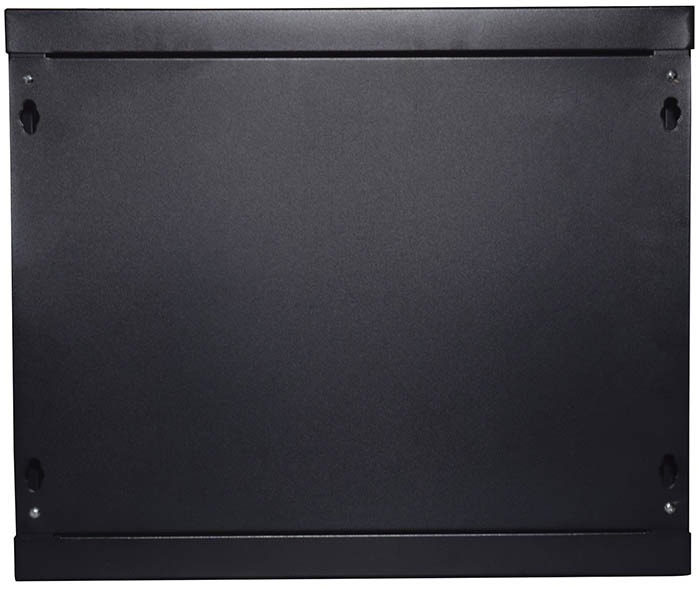

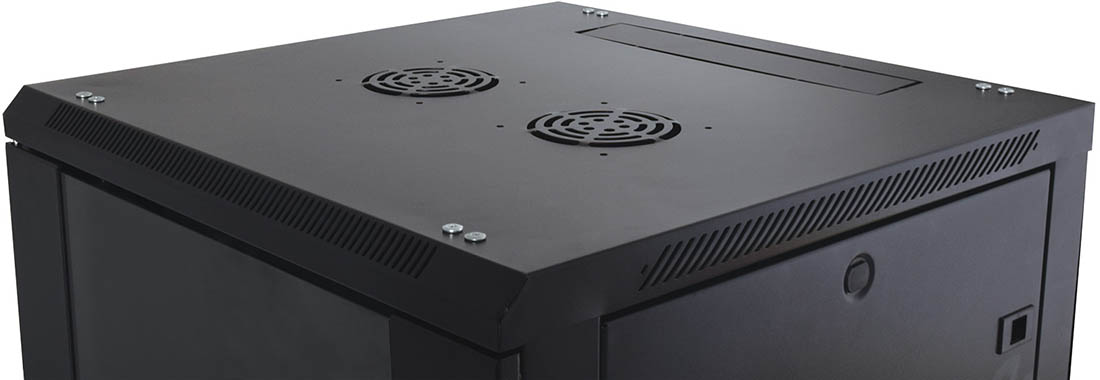

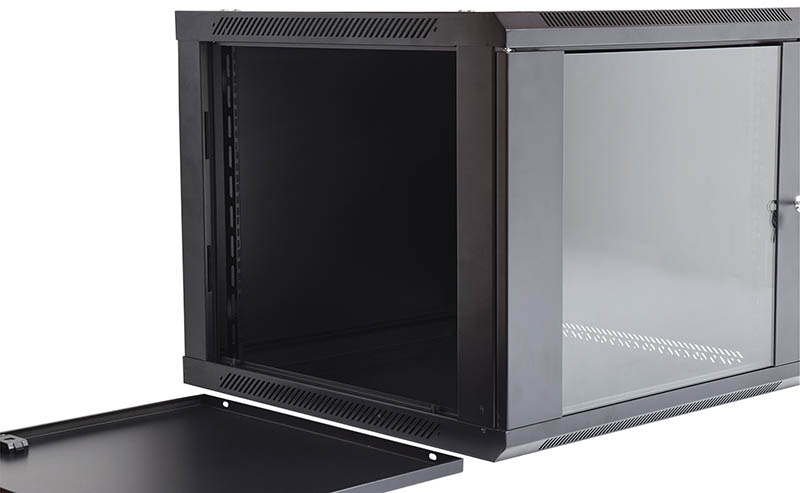

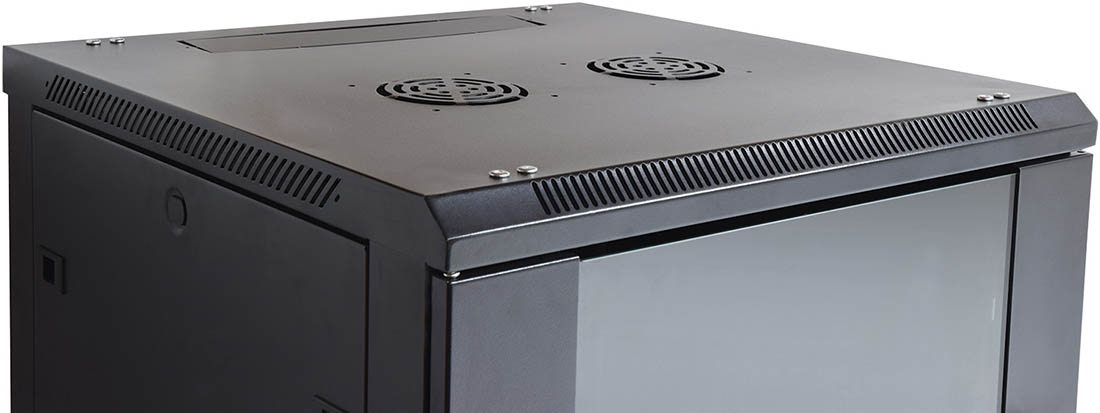

Cabinet for 19" 600mm rack-mount equipment with removable side panels and lockable front door. Constructed from cold-rolled steel with folded edges for strength and stability. Front and rear rack strip is supplied and mounted to rails inside the cabinet, enabling the mounting depth to be adjusted to accommodate equipment with overhanging fittings or to support the rear of heavy units. The top panel is vented for cooling and has a cut-out for mounting a cooling fan if required. The front door is removable and has a pane of 5mm tempered glass flanked by folded steel edge panels which can be mounted to open to either the left or right. The rear panel has fixing apertures for wall mounting or alternatively, the cabinet can be free-standing. Superbly designed, secure containment for professional rack installations.

Depth: 600mm
Mounting Depth: 500mm

RACK6004
Height: 279mm
Rack Height: 4U (178mm)
Weight: 18.8Kg


RACK6006
Height: 367mm
Rack Height: 6U (267mm)
Weight: 20.6Kg

RACK6009
Height: 500mm
Rack Height: 9U (400mm)
Weight: 24.1Kg

RACK60012
Height: 634mm
Rack Height: 12U (534mm)
Weight: 28.1Kg

RACK60015
Height: 767mm
Rack Height: 15U (667mm)
Weight: 31.7Kg

RACK60018
Height: 897mm
Rack Height: 18U (800mm)
Weight: 35.8Kg

RACK60022
Height: 1081mm
Rack Height: 22U (978mm)
Weight: 40.6Kg
