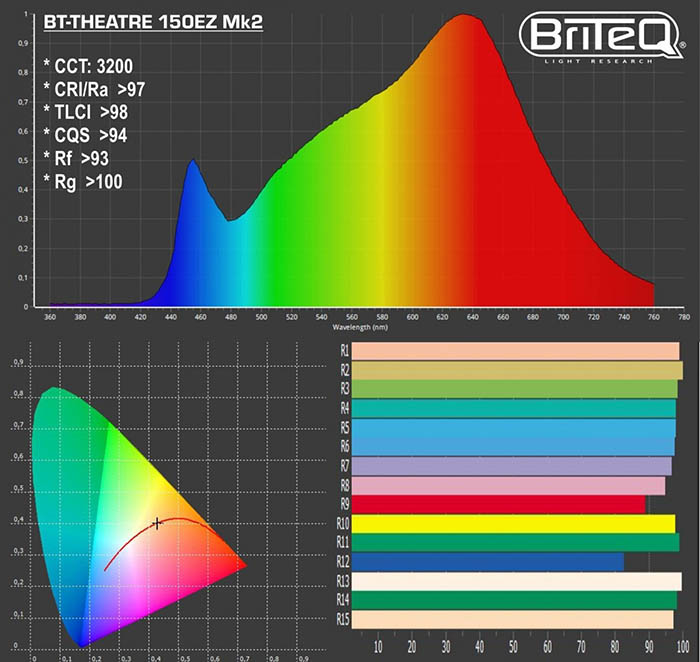

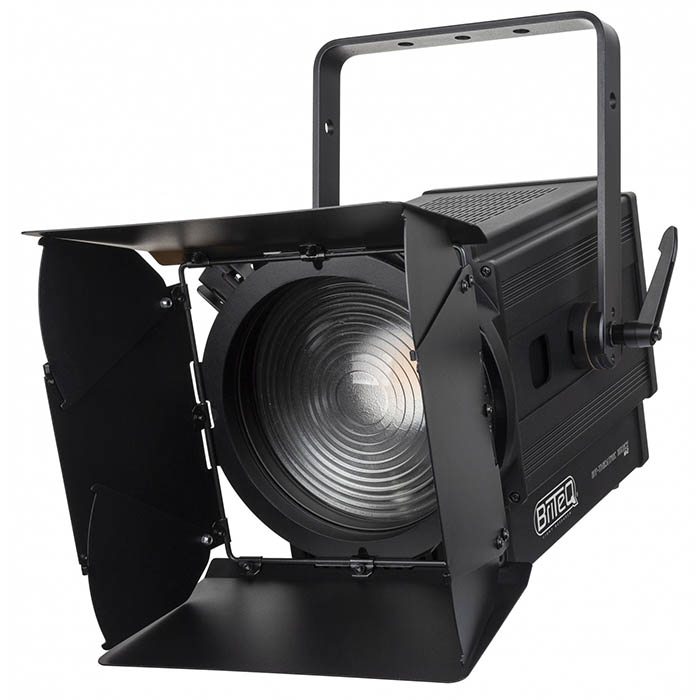

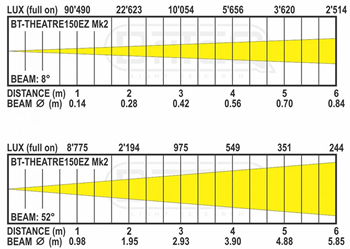

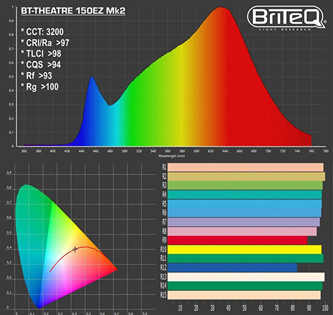

The BT150EZ LED theatre spot is a powerful lighting fixture designed specifically for theatrical and stage lighting applications. It offers several advantages over traditional halogen theatre projectors and provides superior performance in terms of brightness and photometric characteristics. The spot utilizes a 150W warm white LED with a colour temperature of 3200K, delivering high light output and outperforms traditional 1kW halogen theatre projectors in terms of brightness, providing a more efficient lighting solution. The theatre spot boasts impressive photometric characteristics, including a high Colour Rendering Index (CRI) value greater than 97, Television Lighting Consistency Index (TLCI) greater than 98, Colour Quality Scale (CQS) greater than 94, Rf value greater than 93, and Rg value greater than 100. These values indicate accurate colour rendering and representation. A colour frame and eight leaf barndoor are included, allowing for the use of colour filters, and light shaping and control. Unlike traditional setups, the LED theatre spot eliminates the need for heavy and expensive dimmer packs, simplifying the lighting setup.

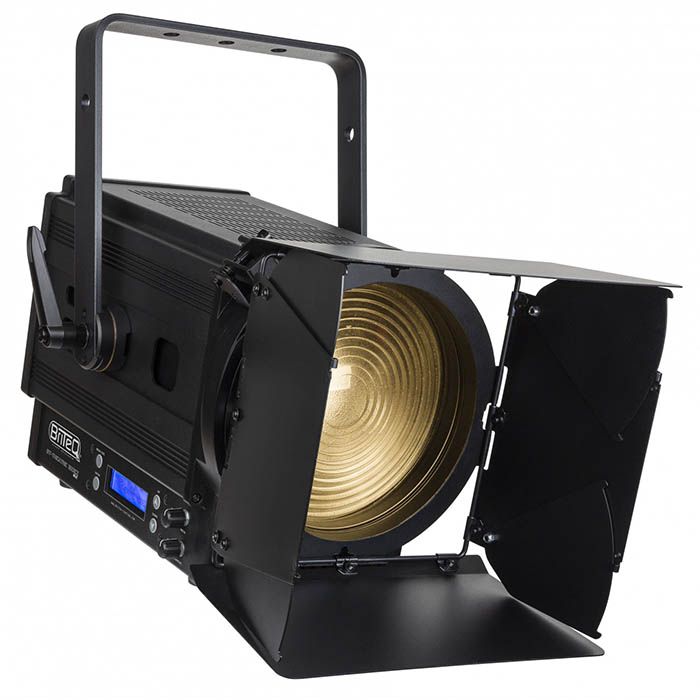

The theatre spot features a cooling system that ensures silent operation, maintains low LED temperature, and provides stable light output. The light is equipped with an LCD display that offers easy navigation through the setup menu, simplifying configuration and adjustments.
The theatre spot can be controlled via DMX, offering seven different channel modes, including 8-bit and 16-bit dimming options, providing maximum flexibility in lighting control. It is also prepared for wireless DMX control by plugging in an optional BT-MDMX dingle, enabling wireless control convenience. In the event of DMX failure, the spot provides the choice between blackout and freeze mode, allowing for appropriate response to the situation. Remote Device Management (RDM) functionality, facilitates remote setup tasks such as DMX addressing and channel mode configuration.
Thanks to HF PWM dimming technology, the theatre spot ensures flicker-free lighting suitable for TV recordings and eliminates high-pitch dimmer noises. Manual dimming and control of zoom and focus, facilitate precise projector alignment on stage and use in exhibition booths. This combined with the adjustment of the lamp behaviour from LED to halogen, enable the creation of different lighting effects. Four dimmer curve options (linear, square, inverse square, and S-curve), offer customised lighting control to suit specific requirements.
The inbuilt lock function prevents unauthorised changes to the settings, ensuring the stability of the configured parameters after the light has been programmed. The theatre spot also allows for saving and loading both default factory settings and user-defined settings, providing convenience and flexibility in configuration.

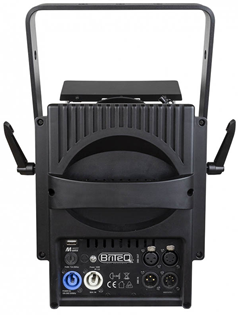

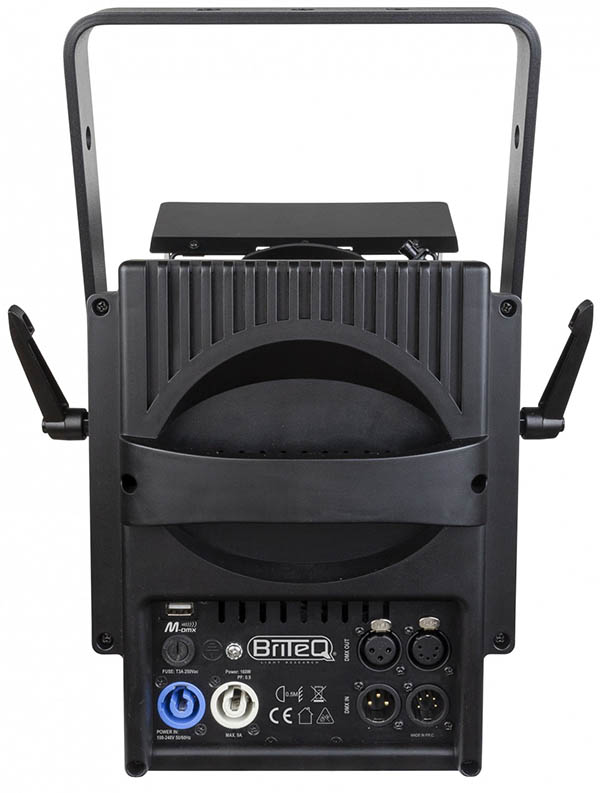

Multiple Connectivity Options are available with 3 pin and 5 pin DMX inputs/outputs, as well as Neutrik PowerCON inputs/outputs, allowing easy daisy chaining of multiple units, simplifying the setup and connectivity.
These features make the BT150EZ a versatile and efficient lighting fixture for theatre and stage applications, providing high-quality lighting output and control options,
