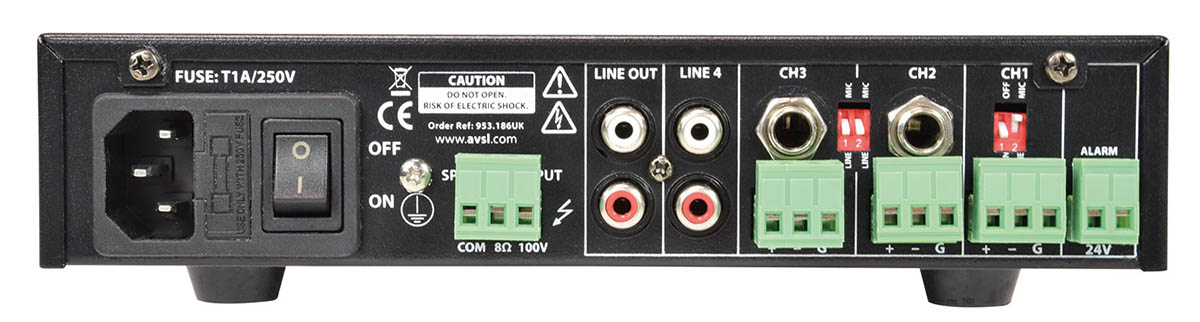

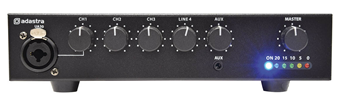

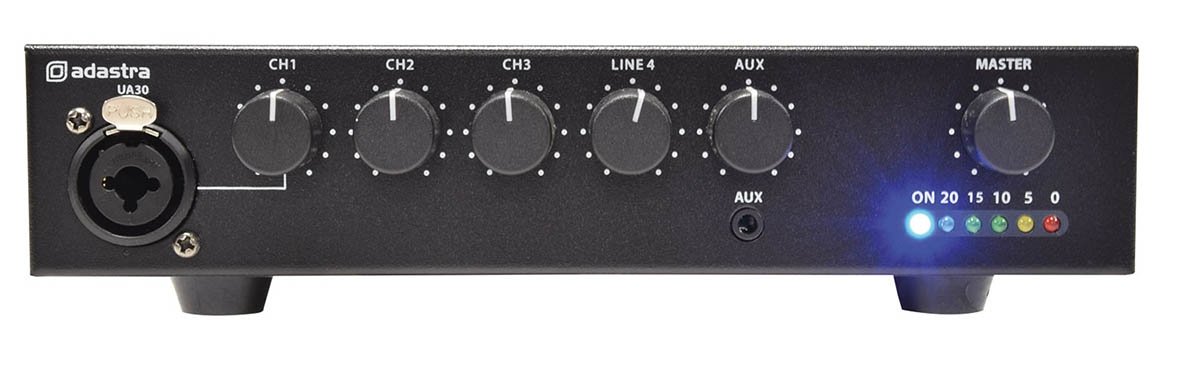

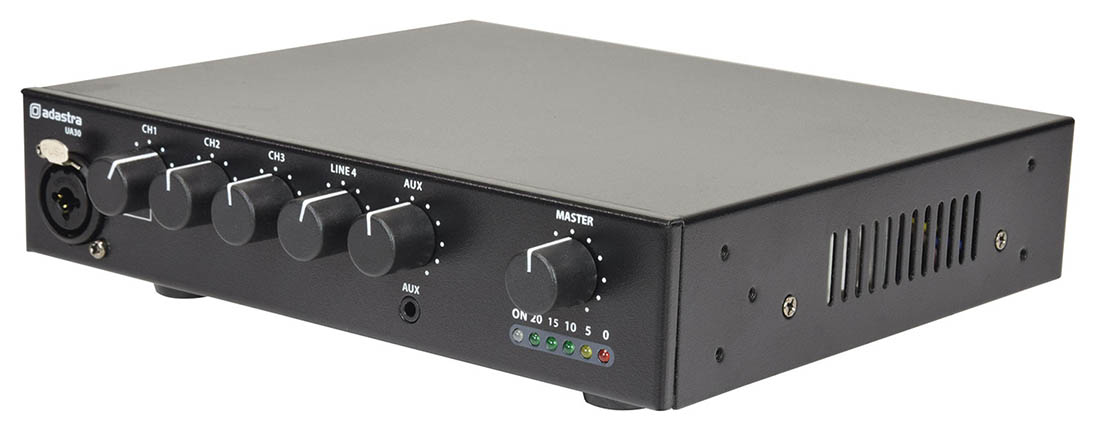

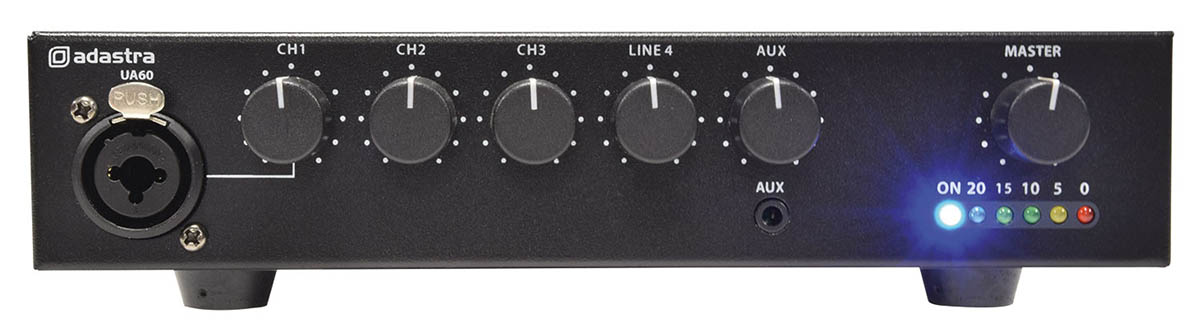

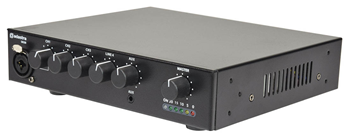

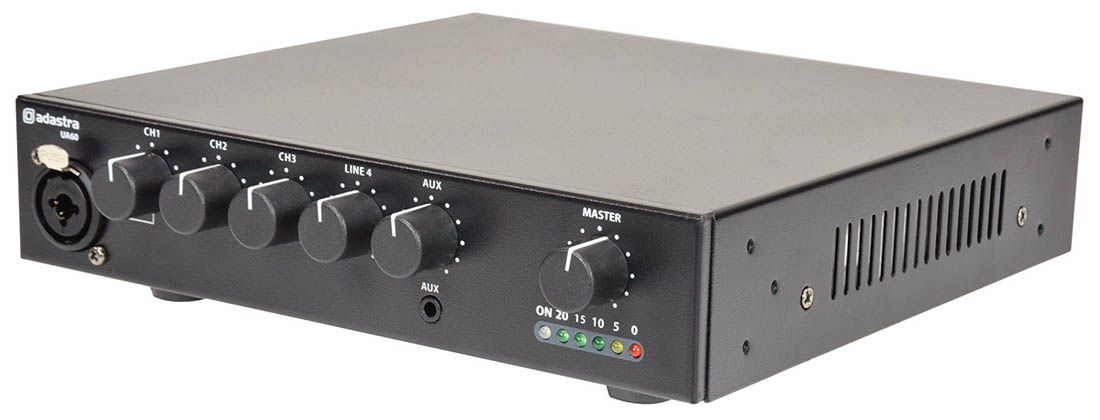

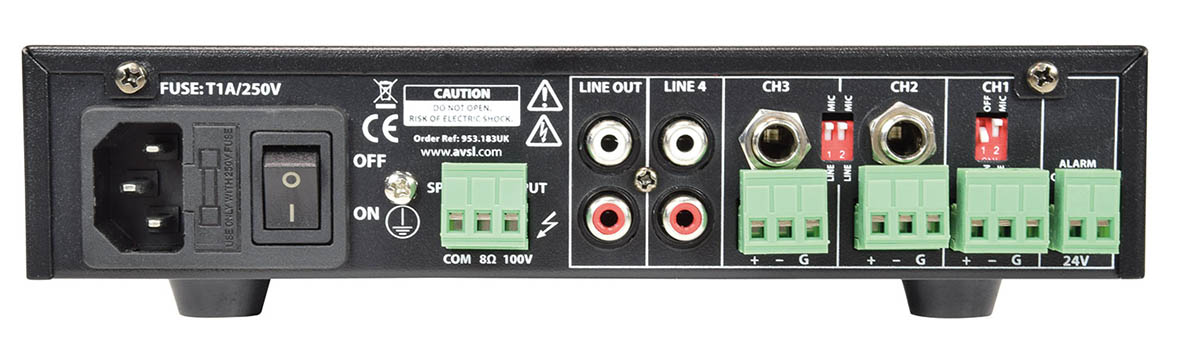

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
Power Supply: 170-264Vac, 50Hz (IEC)Output RMS: 30W (UA30) or 60W (UA60)Signal Inputs: Mic/Line (combo), 2 x Mic/Line (6.3mm), Line (RCA), Aux (3.5mm)Speaker Outputs: Terminal (8 Ohm & 100V)Dimensions UA30: 249 x 210 x 44mmDimensions UA60: 264 x 210 x 44mmWeight: 2.35Kg (UA30) & 2.47kG (UA60)
