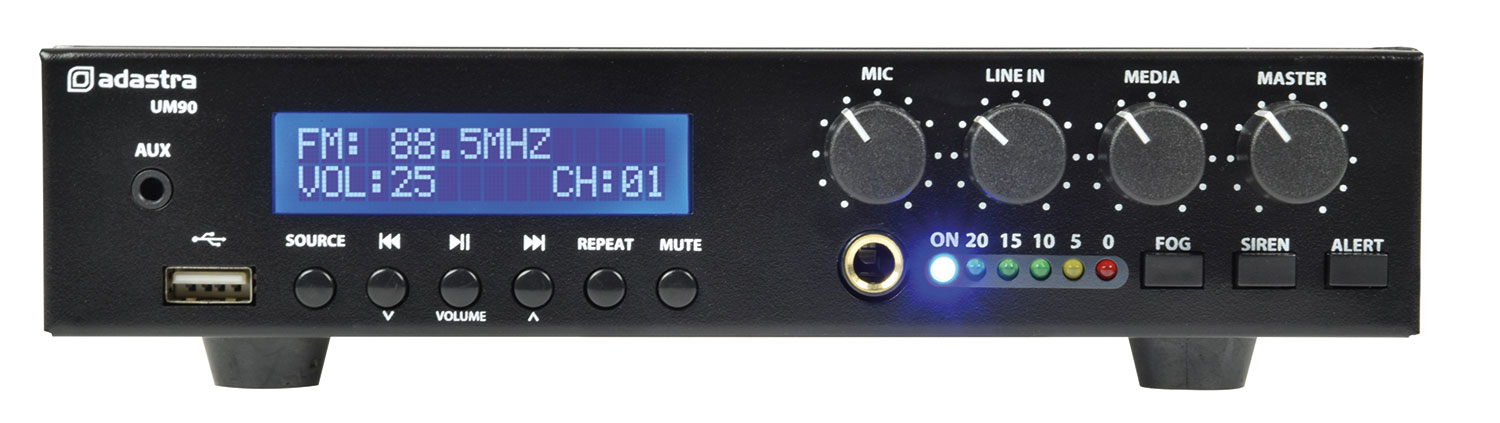

100Volt Line/8Ohm Mixer-Amp-Radio-Media Player 90 Watts

Code: UM90
Availability: Expected soon
  • Ultra Compact Form Factor
  • Efficient Class D Amplifier Design
  • Internal USB/FM/BT Audio Player
  • 100V Line or 8 Ohms Operation
£188.00 inc VAT

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

Power Supply: 170-264Vac, 50Hz
Output RMS: 90W (80W @24Vdc Power)
Inputs: Mic, Line & Aux
Speaker Output: Screw Terminals 100V/8 Ohms/Com
Dimensions: 300 x 210 x 44mm
Wright: 3.02Kg
