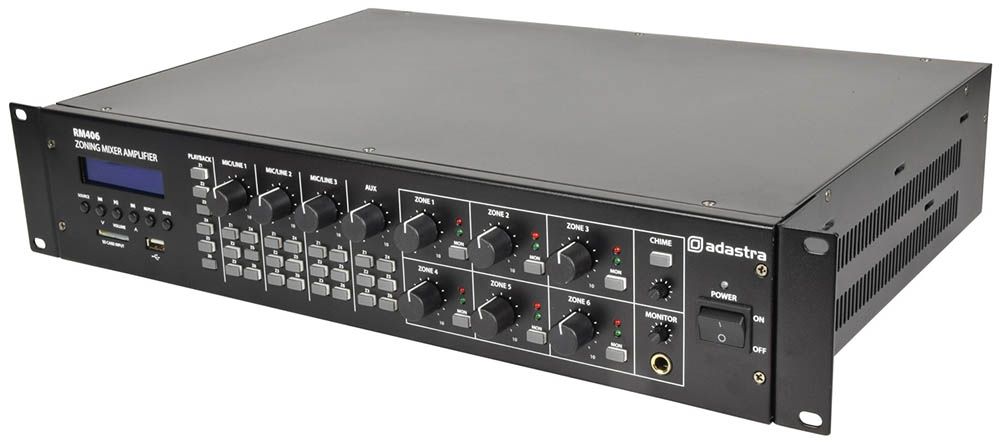

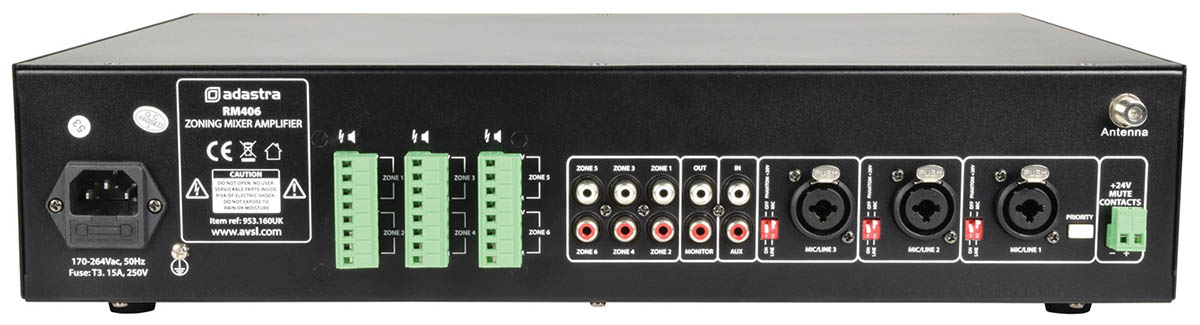

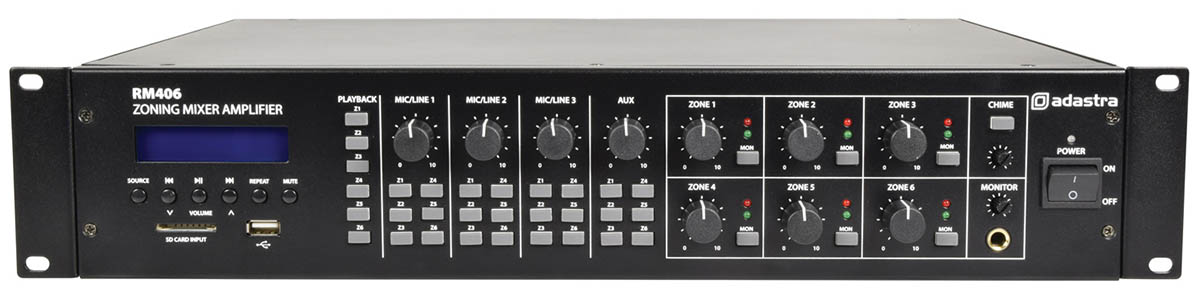

100 Volt Zone Mixer Amplifier 6 x 40W with USB, Radio & Bluetooth

Code: RM406
Availability: Expected soon
  • Integral USB/SD/FM Audio Player
  • Internal Bluetooth Receiver
  • 100V or 4/8 Ohms Operation
  • 6 Independent Output Zones
  • 3 Mic/Line and 1 Auxiliary Input
  • Mic Priority and Chime Functions
  • Switchable +20V Phantom Power
  • 24V Mute Contacts
  • Monitor Headphones Output
£488.00 inc VAT
Add

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers.

Each zone can be monitored from the front panel via a headphone output with volume control. The 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts.

This mixer-amp is designed for multi-room systems requiring different audio sources.

Mains Input: 170-264Vac, 50Hz
Power: 6 x 40W RMS
Siganl Inputs: 3 x Mic/Line (XLR/Jack) & 2 x Auxiliary RCA
Speaker Outputs: 6 x Terminal 100V/8 Ohms/4 Ohms/Com
Phantom Power: +20V Switchable to each XLR
Frequency Response: 100Hz - 24kHz
Dimensions: 433 x 89 x 403mm
Weight: 11Kg
