100 Volt Amplifier with Mixer, DAB+, Bluetooth, USB & SD

Code: RM60D
Availability: Expected Soon
  • DAB+/FM Radio Tuner
  • Bluetooth Receiver with Unique Serial ID
  • USB/SD Audio Player
  • 4 Switchable 100V Outputs and 1 Unswitched Output
  • Optional 4-16 Ohm Output
  • XLR Input with Switchable +20V Phantom Power
  • 2 x Mic/Line Inputs, 2 x RCA Line Inputs, 1 x RCA Line Output
  • Switchable VOX Voiceover Feature
  • 2U 19" Rack Mountable (Rack Ears Supplied)
  • 24V Emergency Mute Contacts
  • Mains 230Vac or 24Vdc Power Option
£222.00 inc VAT
Add

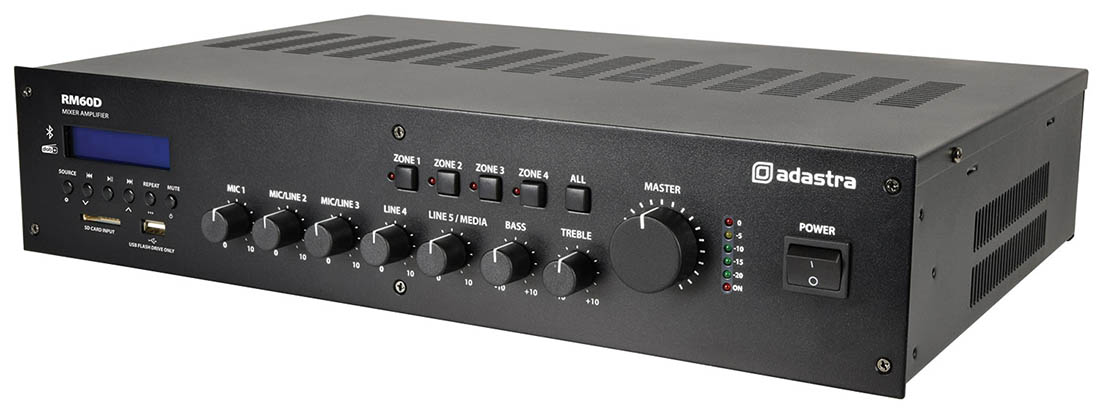

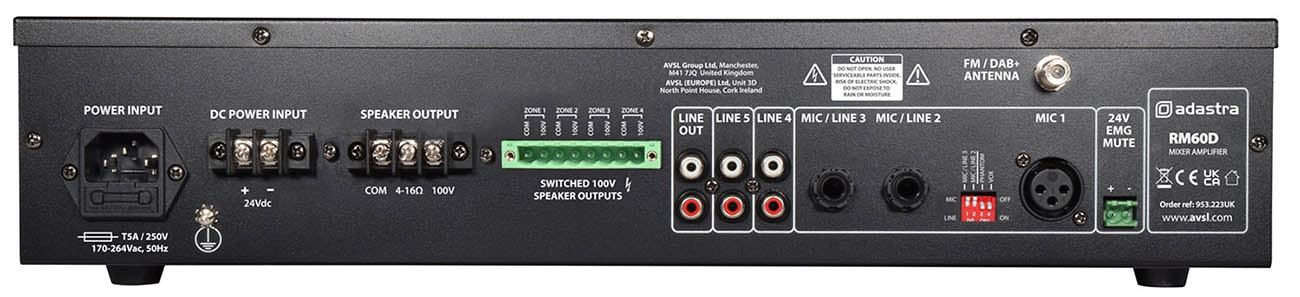

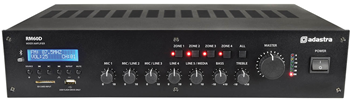

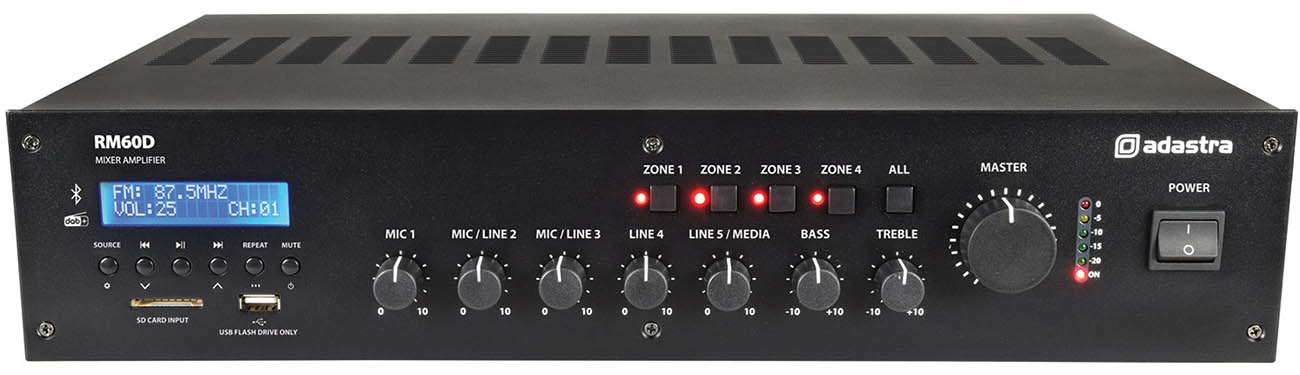

5-channel 19" rack-mountable 60w mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1 and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.

Mains Input: 170-264Vac, 50Hz
DC Power: 24Vdc (Screw Terminals)
Power RMS: 60W
Signal Inputs: Mic XLR, 2 x Mic/Line Jack, 2 x RCA Line
Speaker Outputs: 4 Switched + 1 Non-Switched 100V/4-16 Ohms/COM
Phantom Power: +20V (Mic 1 XLR, Switchable)
Dimensions: 433 x 432 x 88mm
Weight: 4.9Kg
