Wired Lighting Bars 13 Amp with DMX Sockets - Choice of Length & Finish

Code: BAR13DMX
Availability: Please select an option
  • Wired Lighting Bar with In & Out 3 Pin DMX per Socket
  • PowerCon-In & Out with DMX
  • Black or Aluminium Finish
  • Available in 4m, 6m or 8m Lengths
  • Alternative Combinations Available on Request
Please Select:
Colour
Metre Length
From £450.00 inc VAT

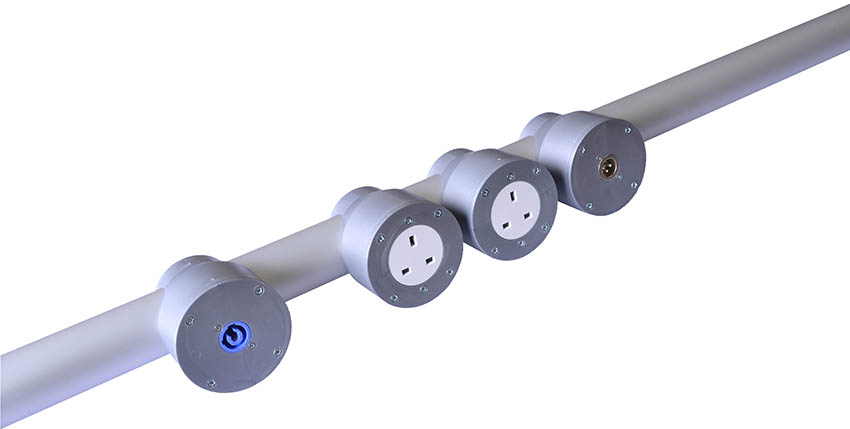

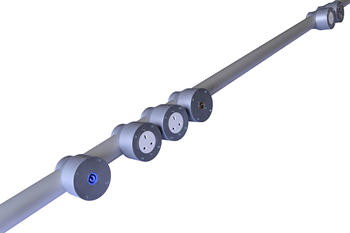

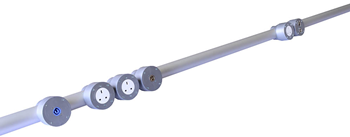

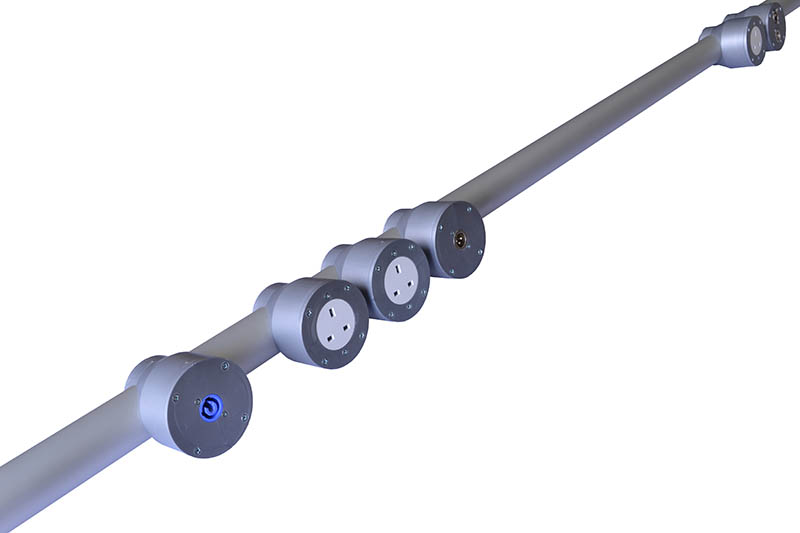

These wired lighting bars result in a neat & tidy lighting installation with very little need for unsightly cable runs or ties, making them ideal for professional installation in a range of venues including theatres, schools and commercial venues.

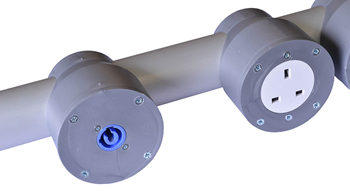

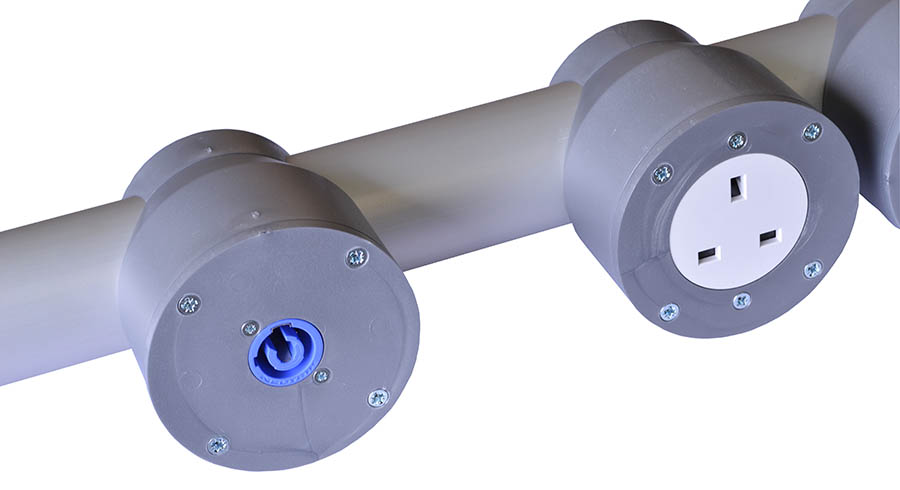

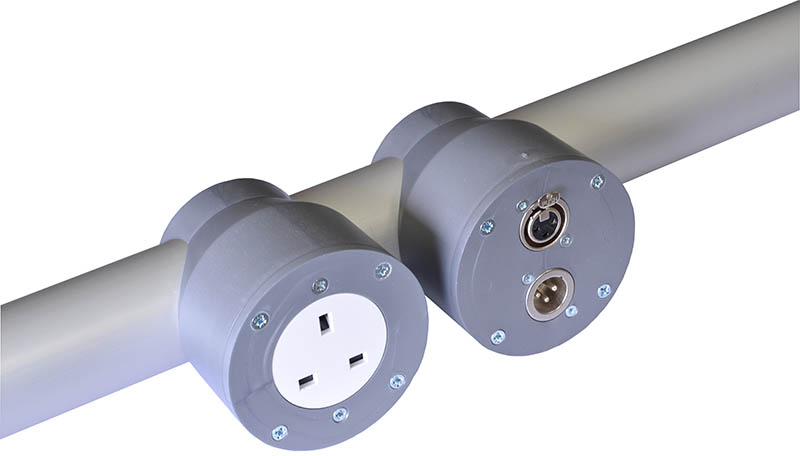

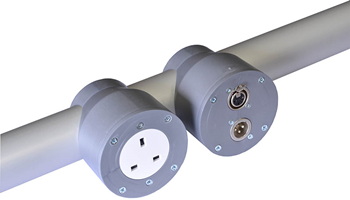

The wired lighting bar has a Neutrik powercon-in, on one end and a powercon-out at the other, this enables linking of multiple bars if required. The bar has a 13 amp socket for each light and each socket has a 3 pin DMX in and out, in close proximity to the socket. Both the power-in & power-out have a DMX socket close by. This really aids connection time of the lights, making any install quick, simple and tidy. Please note; in the event of one socket not being used, a DMX link lead may be required to carry on the data run

Each lighting bar is made from 50mm tube and is offered in a black or silver finish. These are very robust bars designed for professional use and can take a 78kg load between every 2 meter support points. Manufactured to all current regulations, they also use tri-rated cable throughout. We would recommend a hanging point every 1 to 1.5m, this of course does depend on the load being hung. If you are unsure please contact our technical support or qualified engineer. We recommend hanging these bars with NT30400 brackets and using M12 stud.

The 4m bar has 6 x 13A sockets
The 6m bar has 8 x 13A sockets
The 8m bar has 10 x 13A sockets

Other socket combinations and configurations can be manufactured to suit your exact requirements, please contact us for a quote.
