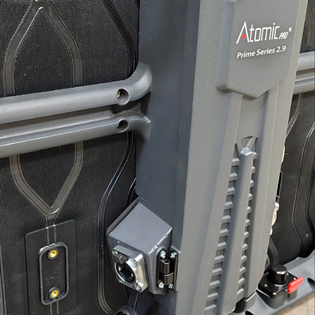

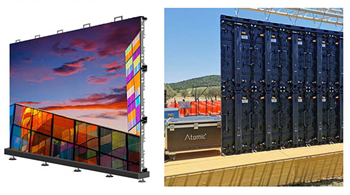

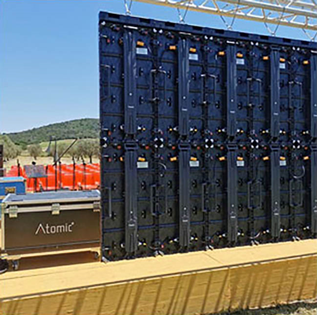

Atomic Pro Prime Series 2.9 LED Wall

Code: APPRIME29
Availability: Expected Soon
  • Pixel Pitch of 2.9 mm Ensures Clear, Sharp and Bright Resolution from only 3 Metres Away
  • 7680Hz Refresh Rate
  • Module Dimensions of 500 x 1000mm
  • Cab be Suspended or Ground Mounted
£0.00 inc VAT

The Atomic Pro Prime Series 2.9 is the cabinet designed for the creation of outdoor LED walls with a pixel pitch of 2.9 mm, ensuring sharper and more detailed images at any viewing distance, starting from just 3 meters.

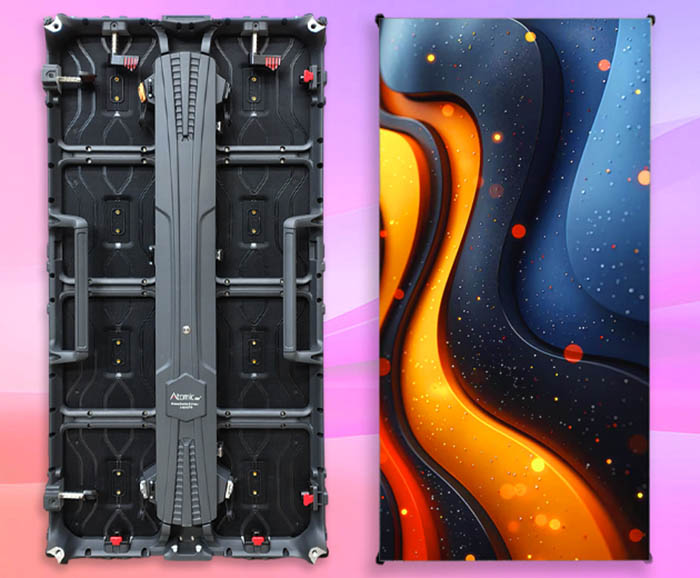

The 50 x 100 cm cabinet size allows for flexible setups of LED walls in various dimensions with significantly reduced installation times. The high Refresh Rate of 7680 Hz guarantees flawless visuals even during camera recordings, ensuring superior image quality in all conditions.

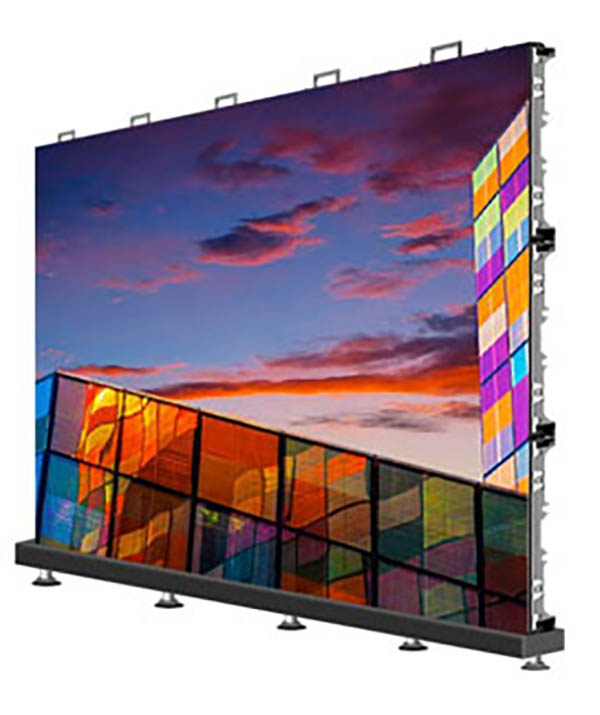

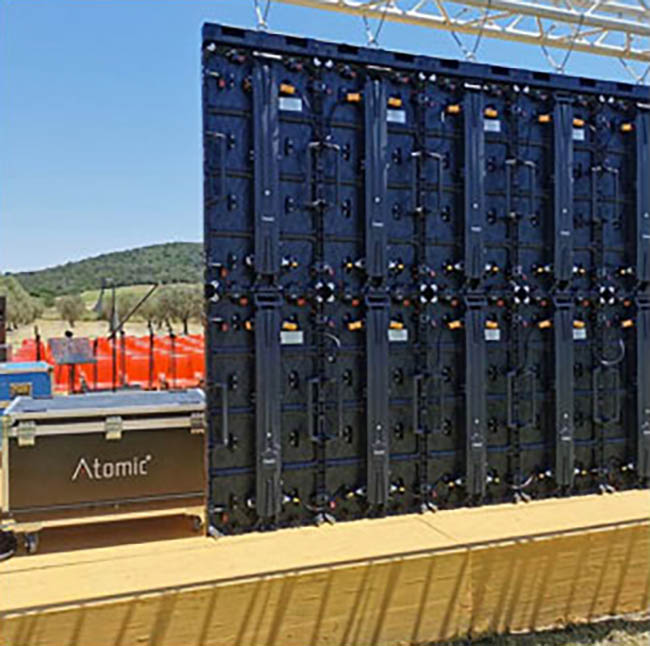

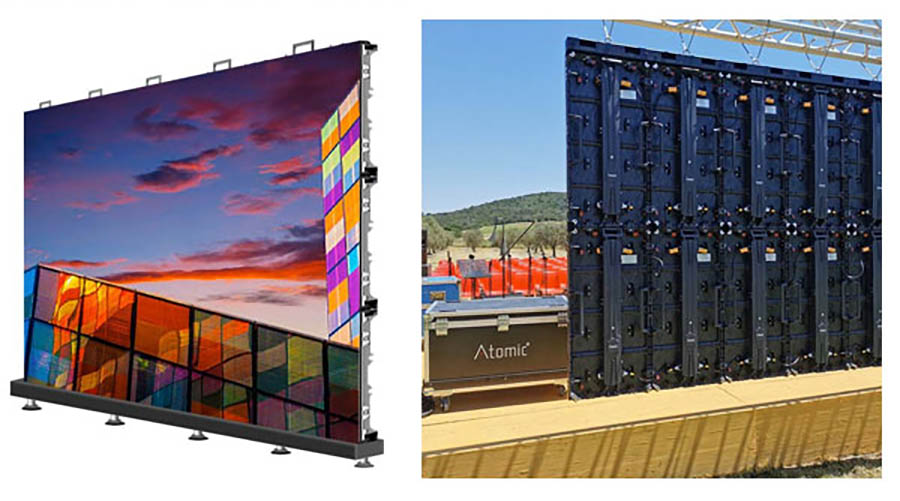

Each panel consists of four pre-assembled tiles, each with 84 x 84 RGB pixels; this allows for quick repairs and replacements of small screen sections. The Atomic Pro Prime Series 2.9 LED wall is designed to be installed both suspended with a flying bar and mounted on stage or ground with convertible bases.

Thanks to the certified IP65 protection standard, the Atomic Pro Prime Series 2.9 is also perfect for outdoor use: its sealed cabinet is resistant to dust, humidity, and rain. To ensure consistently excellent image quality, the entire Atomic Pro Prime Series boasts maximum brightness levels of 6000 nits, delivering outstanding visibility even under direct sunlight.

Power Supply: 200V-240Vac, 50-60Hz
Power Consumption: 670W/m2
IP Rating: IP65
Pixel Pitch: 2.976
Tile Resolution: 84 x 84 Pixels
Cabinet Resolution: 168 x 336 Pixels
Pixel Composition: 1x RGB
LED Type: SMD1415
Viewing Angle: 160°V/140°H
Module Dimensions: 500 x 1000mm
Weight: 7.5Kg (Per Cabinet)
