TV Studio LED Panel CW/WW 260 Watt

Code: TVPANEL
Availability: In Stock
  • Professional Soft Light for TV Studio Applications
  • Compact but Powerful Output
  • Cool White & Warm White LEDs
  • Tunable White
  • Wide 115 Degree Beam Angle
  • Flicker Free Dimming
  • Full DMX Control & Standalone Option
  • Low Noise Temperature Controlled Fan Cooling
  • Lock Function to Avoid Unwanted Altering of the Settings
  • PowerCON TRUE1 Compatible In/Outputs for easy Daisy Chaining
  • Supplied with 28mm TV Spigot
£990.00 inc VAT

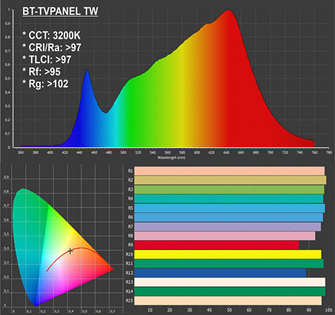

This professional soft-light is designed for use in TV-studios and outdoor settings under dry conditions. Despite its compact size, it delivers a powerful output of 640 CW/WW LEDs with 260W total power. The tuneable white feature allows for precise CCT-pre-sets from 3000K to 5600K, and the light boasts impressive photometric specifications with Ra>98 and TLCI>99.
The light features an intelligently designed aluminium finish that makes it suitable for multifunctional use. For PHOTO & TV-STUDIO applications, there is a “click-on” external 100V – 240V power supply with V-LOCK. For TV, FILM, REPORTER, and other uses, one or two optional standard V-LOCK batteries (14.8V and 26V compatible) can be used instead. Frost filters are easily exchangeable and has the possibility to add extra (colour) filter sheets. Different optional accessories are available(sold separately), including an 8-leaf barndoor, manual yoke, intensifier, softbox, and more.
The beam angle of the light is 115°, and it features excellent dimmer electronics with four dimmer curves and dimmer speed control. It also has flicker-free dimming down to 0% with refresh rates between 900Hz and 25kHz. The four dimmer curves include linear, square, inverse square, and S-curve.
The light is easy to use standalone with three rotary knobs for dimming, CCT-pre-sets & seamless CCT-adjustment. Full DMX control is also available with different modes and control channels. Wireless DMX (optional WTR dongle) or cabled XLR 3pin / 5pin in/outputs are also available. The light has RDM-functionality for remote setting and monitoring, and very low-noise temperature-controlled fan cooling.
There is also a lock function to avoid unwanted altering of the settings, and it comes with a default factory reset. User settings can also be saved and loaded. The light features a 2x 16-character OLED display with touch buttons for easy setup A optional manual studio yoke is available.
The light has a high lumen output of 19,000 elm and PowerCON TRUE1 compatible in/outputs for easy daisy chaining. It comes with an included 28mm TV spigot that can be used to easily hang the projector in combination with the optional “TV-SPIGOT RECEIVER”.

Power Supply: 100-240Vac, 50/60Hz
Power Consumption: 290W
LED: 320 x Cool White & 320 x Warm White
Beam Angle: 115 Degrees
DMX Channels: 2, 3, 4, 5 or 7
Dimensions: 562 x 368 x 195mm
Weight: 9.7Kg
