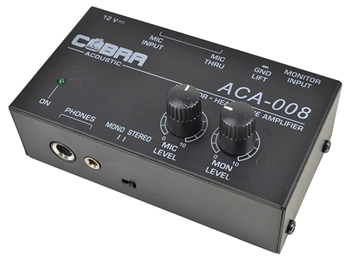

Microphone and Headphone Audio Mixer

Code: ACA-008
Availability: In Stock
  • Compact Monitor Headphone Amplifier
  • Ideal for Studio and Stage Applications
  • Includes DC 12 V Power Supply.
£24.95 inc VAT

Professional monitor headphone amplifier suitable for connecting a microphone and stereo line-level music source.

There are separate microphone level and monitor controls. The stereo input can be switched to mono if required. There is a choice of either a ¼“ headphone output or a 3.5mm stereo output, so connecting in any type of headphone shouldn't be a problem. The microphone input is via a XLR, with a through socket to link to other equipment. The line input is via a stereo 1/4" jack. A good choice for studio and live applications where the user needs to monitor a audio and microphone source.

Microphone Input Connector: XLR
Microphone Impedance: Approx 2kO (Balanced)
Microphone Max Input Level: -18 dBu
Microphone Gain: 40 dB
Microphone Bandwidth: 15Hz - 25kHz
Monitor Input Connector: 1/4'' Stereo Jack
Monitor Gain: 10 dB
Monitor Bandwidth: 10Hz - 80kHz
Headphone Output: ¼” and 3.5mm Stereo Jack
Headphone Impedance: Min. 30O
Headphone Max Output Level: Approx +10 dBu (60 mW) @ 100O Load
Power Supply: 12v DC 500mA
Weight: 0.380 kg
Dimensions: 104 x 62 x 47mm
