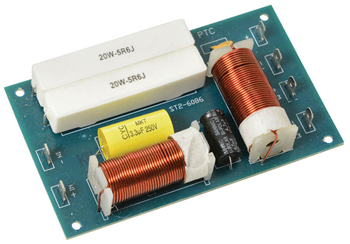

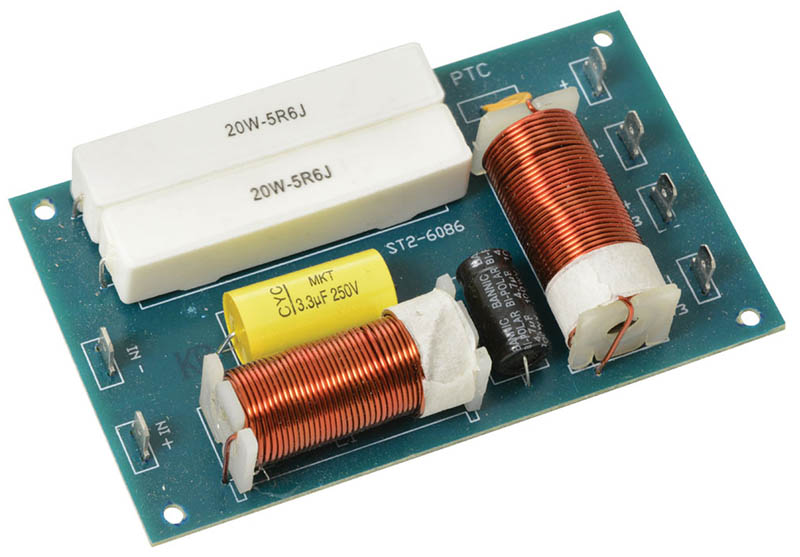

2-Way Speaker Crossover 3kHz 200W Passive For 8 Ohm System

Code: ACX13
Availability: 2 In Stock
  • 2 Way Crossover
  • 3kHz 250 Watts
  • Balanced Separation of the High and Low Frequencies
£9.20 inc VAT

A 2-way crossover designed for use in both new cabinet builds and servicing existing faulty units. It is optimized for speaker systems with a power capacity of up to 200 Watts, operating at an impedance of 8 ohms. The crossover is engineered to divide audio signals at a frequency of 3kHz, ensuring that high frequencies are sent to the tweeter and low frequencies to the woofer, thereby enhancing the sound quality and performance of the speaker system. This division is achieved with a 12dB per octave roll-off, which ensures a smooth transition between the frequency ranges handled by the tweeter and woofer, minimizing phase and amplitude mismatches at the crossover point.

Frequency: 3kHz
Slope: 12dB/Oct
Impedance: 8 Ohms
Power: 200W
