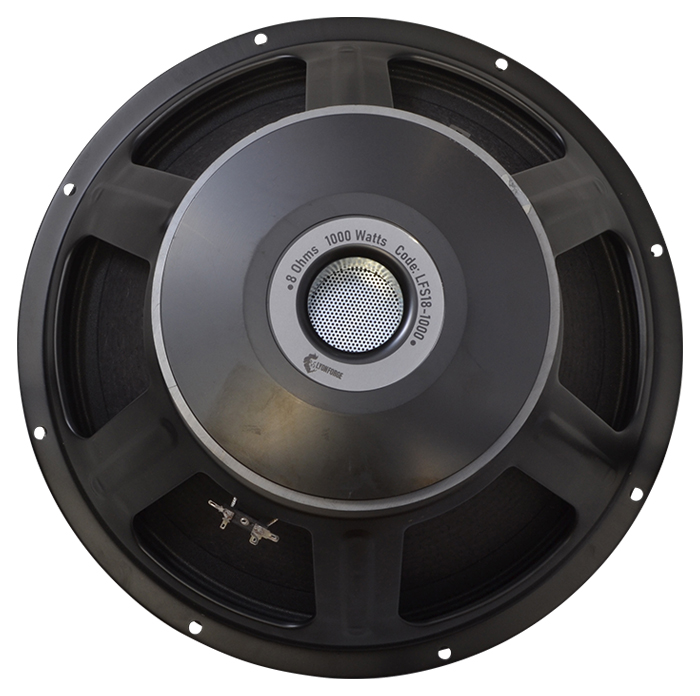

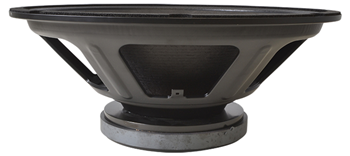

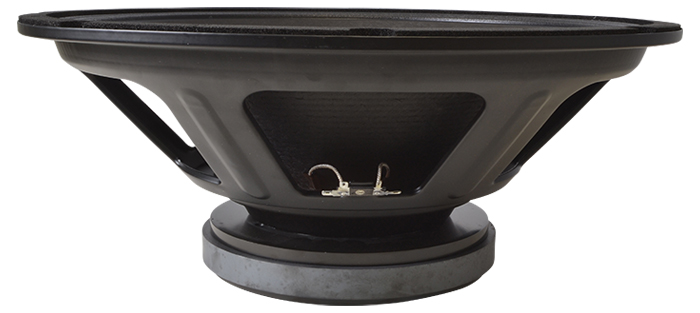

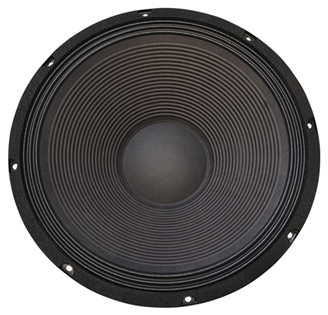

18" Speaker Driver 1000 Watt 8 Ohm Bass Woofer

Code: LFS18-1000
Availability: 50 available in 7 days
  • Sub Bass 18" Woofer
  • For Repairs & New Speaker Projects
  • 1000 watts
  • 8 Ohm
£112.95 inc VAT

Designed for both repairs and new speaker projects, this massive 18" Lyonforge is suitable for any large sub-bass system. It handles up to 1000 watts of power and has an 8 Ohm impedance, providing durable and powerful sound.
Tailored for sub-bass cabinets and with a frequency response from 34 to 1500Hz, the speaker will deliver excellent low-frequency performance and fill any space with deep, resonant bass. The woofer is built with a strong frame and a large 220mm magnet, ensuring it lasts even under tough conditions.
Ideal for upgrading an existing system or starting a new one, the Lyonforge LFS18-1000 18" Woofer is a solid choice. Check the specification tab for complete Thiele Small design parameters.

Driver Size: 18"
Power AES: 500W Watts
Continuous Programme: 1000 Watts
Impedance: 8 Ohm
Frequency Range: 34-1500kHz
Sensitivity: 94.2dB
Bolt Circle Diameter: 446mm
Cutout Diameter: 426mm
Dimensions: 460 x 190m
Weight: 9.9Kg
Thiele & Small Parameters:
Resonance Frequency (Fs): 34hz
Mechanical Factor (Qms): 3.018
Electrical Factor (Qes): 0.523
Total Factor (Qts): 0.446
BL Factor (BL): 26.9T.m
Effective Moving Mass (Mms): 267gr
Compliance (Cms): 77.6 u M/N
Equivalent Cas Air Load (Vas): 211L
Effective Piston Area (Sd): 138m2
