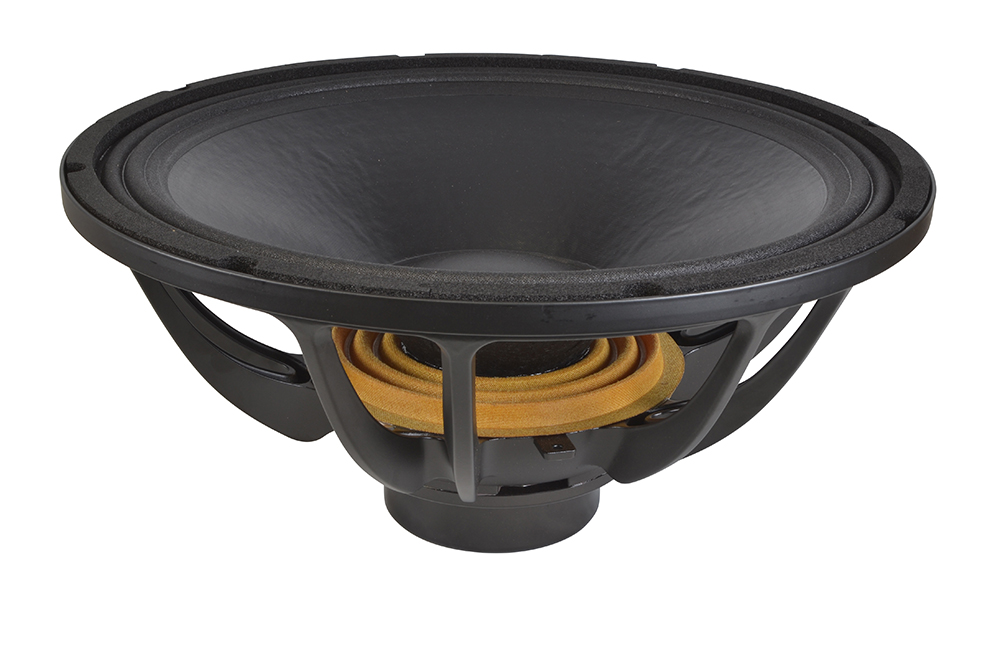

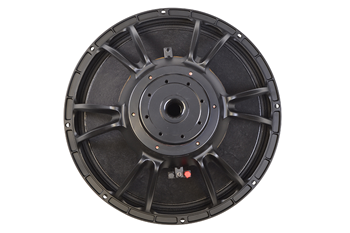

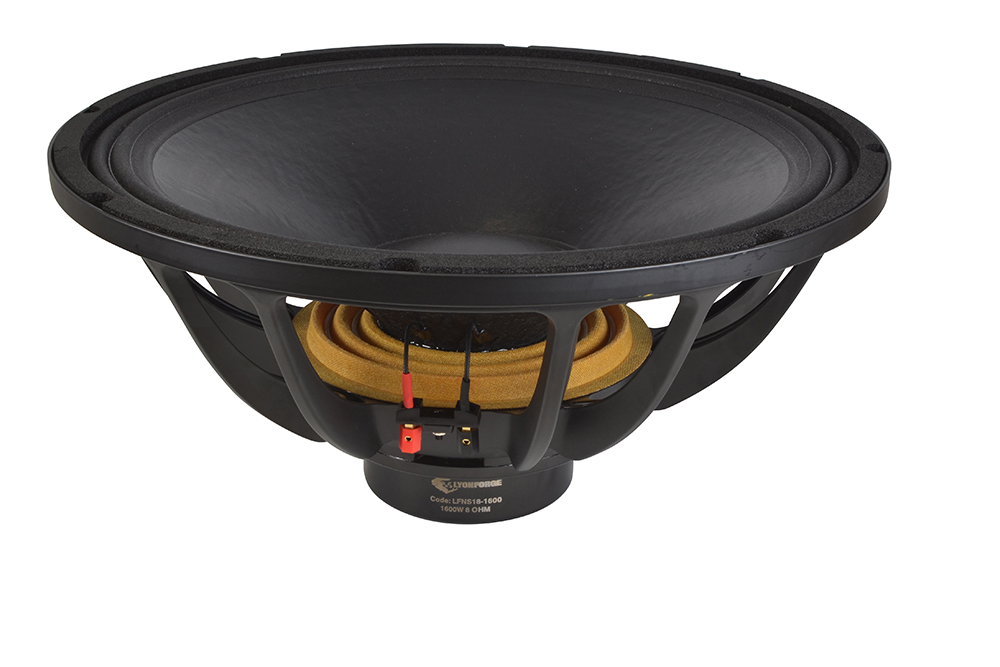

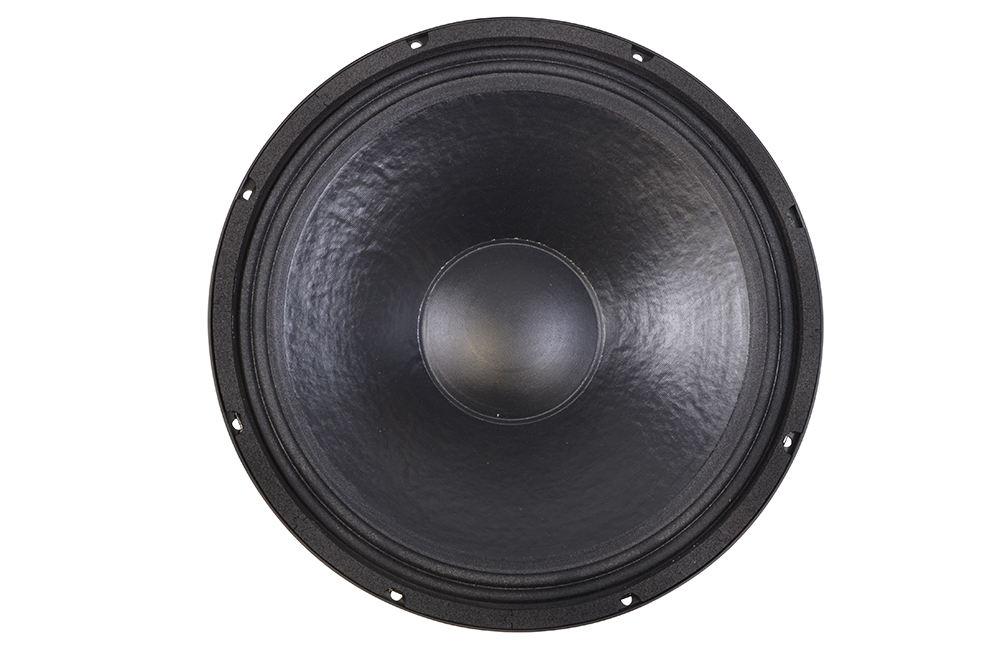

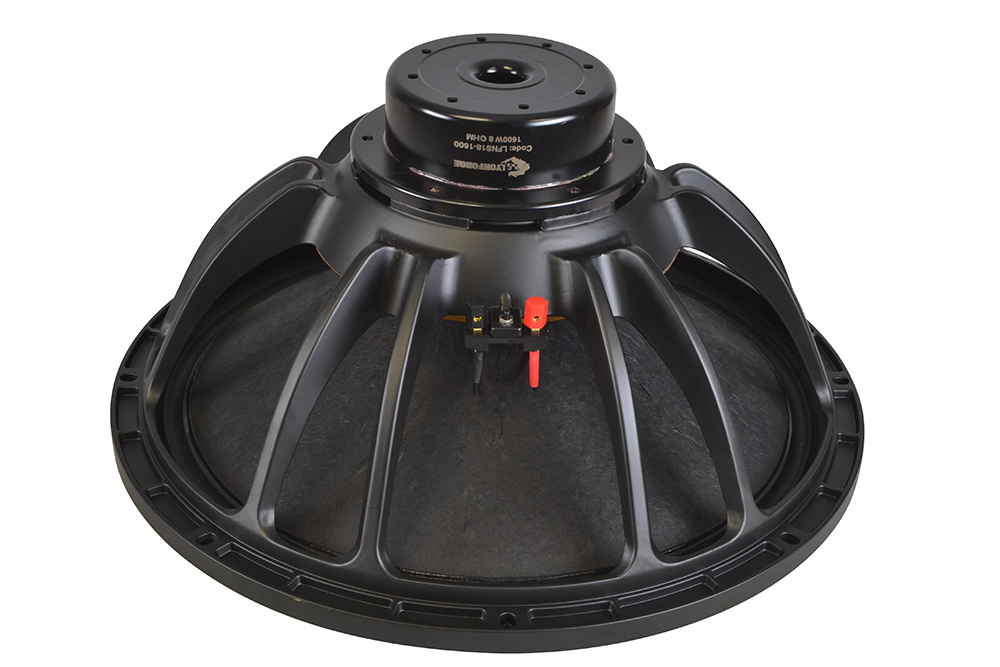

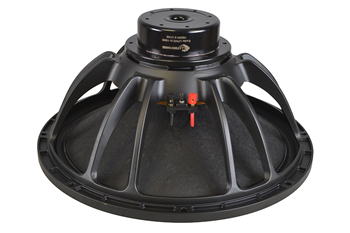

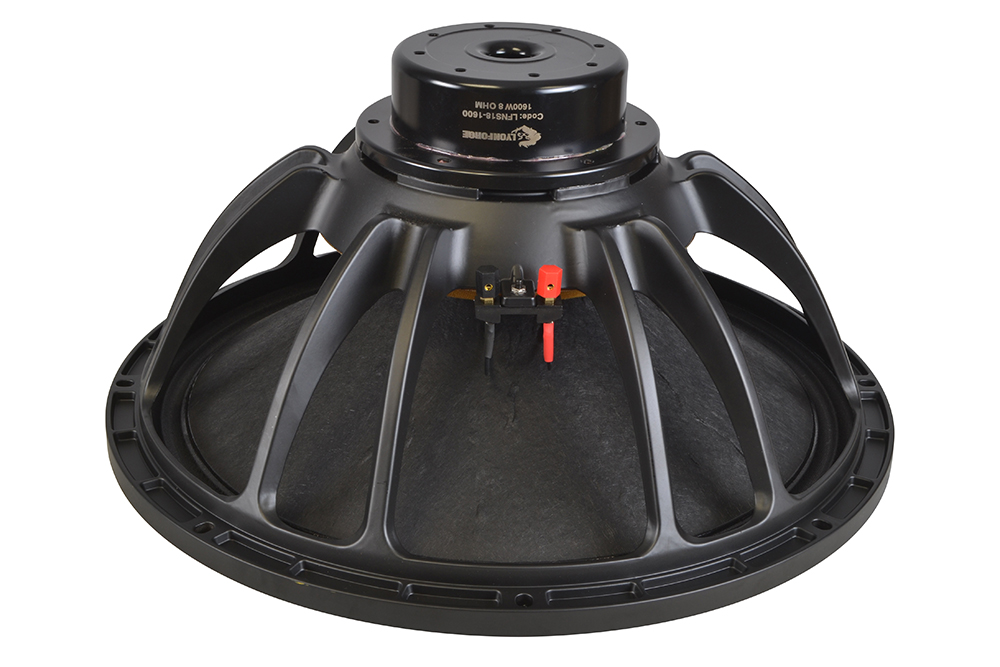

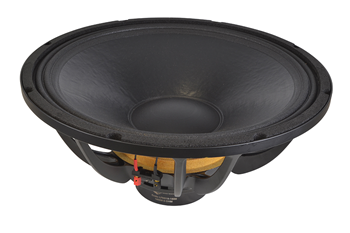

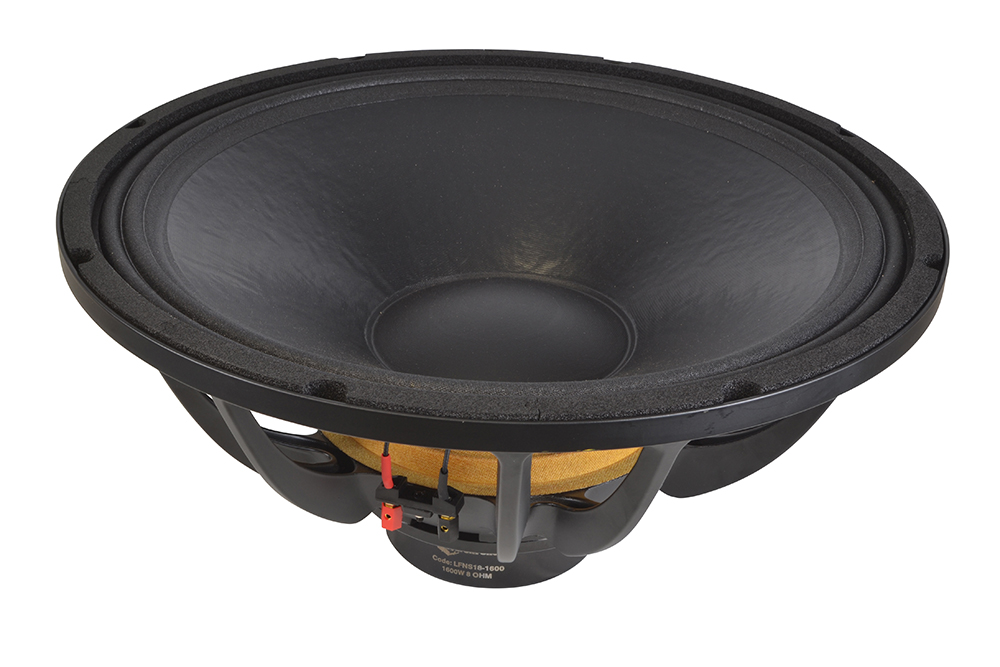

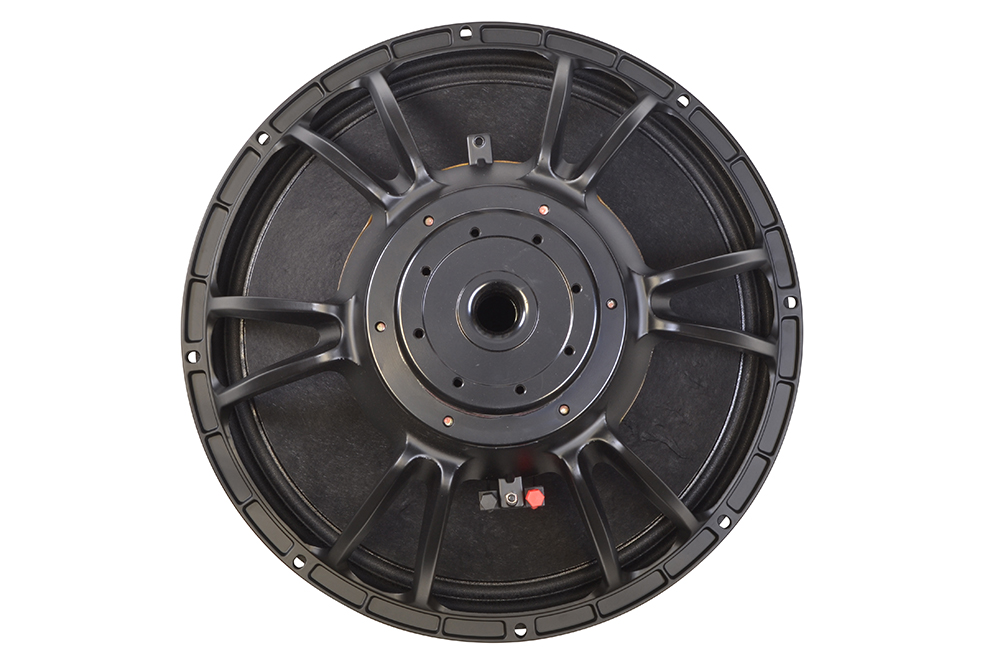

18" Neodymium Subwoofer Speaker Driver 1600 Watts by LYONFORGE

Code: LFNS18-1600
Availability: 8 In Stock
  • 18" LyonForge
  • 1600W Continuous Power
  • 800W AES
  • 34Hz–3kHz Frequency Response
  • Neodymium Driver
  • High Efficiency Neodymium Magnets
  • Lightweight And Portable
  • Durable Construction
  • Deep, Accurate Bass
£248.00 inc VAT

The Lyonforge 18" Neodymium Subwoofer delivers professional-grade bass with uncompromising power and precision. Capable of handling 1600 watts of continuous power and 800 watts AES, it provides deep, controlled low-end performance that fills any space with clarity and authority. Its frequency response of 34 Hz to 3 kHz ensures accurate reproduction from ground-shaking sub-bass to smooth upper lows, making it perfect for high-performance PA systems, touring setups, and fixed installations.

Equipped with advanced neodymium magnets, this subwoofer combines exceptional efficiency with reduced weight, making it easier to transport and install without sacrificing output. The neodymium design also enhances sensitivity and heat resistance, ensuring stable performance even during extended, high-volume use. Built with durable materials to withstand the demands of live sound, the LyonForge 18" Neodymium Subwoofer delivers a powerful, dynamic, and reliable low-end experience

Nominal Diameter: 461mm/ 18 inch
Frame: Aluminium
Magnet: NdFeB Ring
Magnet Diameter: 97mm
Nominal Impedance: 8 Ohm
Magnetic Gap Depth: 8mm
AES Power Handling: 800W
Continuous Program Power: 1600W
Sensitivity 1W/1M: 95dB
Frequency Range: 34-3kHz
Voice Coil Diameter: 99.5mm/ 4 inch
Winding Material: CCAR
Former Material: TGL
Winding Depth: 22mm
Surround (Damper): C
Cone and Dust Cap: Paper
Surround Material: Polycotton
Surround Design: Double-roll
Rosonanco Frequency: Fs, 34Hz
DC Resistance: Re, 7.2 Ohms
Mechanical Factor: Qms, 7.397
Electrical Factor: Qes, 0.529
Total Factor: Qts, 0.493
BL Factor: BL, 22.737T.m
Effective Moving Mass: Mms, 176.844gr
Compliance: Cms, 122.758 µ M/N
Equivalent Cas Air Load: Vas 269.804L
Effective Piston Area: Sd, 0.124m²
? (Eta Zero): ?0, 1.967%
Overall Diameter: 461mm
Bolt Circle Diameter: 445mm
Baffle Cutout Diameter: 425mm
Depth: 220mm
Neight Weight: 6.7kg
Shipping Weight: 8kg
