15" Speaker Driver 300 Watt 8 Ohm Bass Woofer

Code: LFS15-300
Availability: In Stock
  • 15" Bass Speaker Driver
  • For Speaker Repairs
  • New Speaker Projects
  • 400 watts
  • 8 Ohm
  • Full Range Driver
£34.95 inc VAT

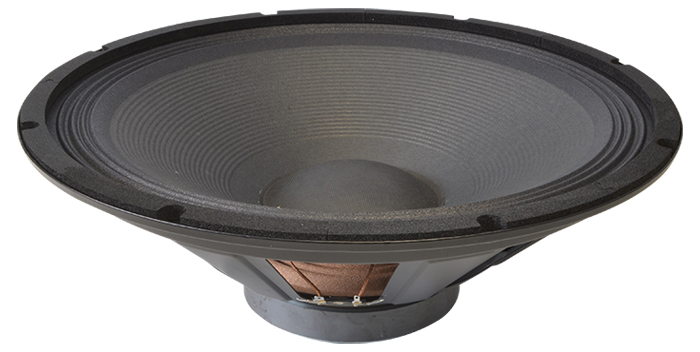

This Lyonforge 15" Woofer is suitable for both repairs and new speaker projects. It handles up to 400 watts of power and has an 8 Ohm impedance, making it good for sub-bass, or the bass drive in full-range cabinets. The woofer provides clear, crisp sound across all lower frequencies and features solder terminals for easy installation. It's built to satisfy professional audio requirements, with a robust mechanical design. Whether you're updating your current system or starting a new build, the Lyonforge LFS15-400 15" driver offers reliable sound performance.

Driver Size: 15"
Power RMS: 300W
Impedance: 8 Ohm
Frequency Range: 30-3300kHz
Sensitivity: 93.4dB
Bolt Circle Diameter: 373mm
Cut-out Diameter: 355mm
Dimensions: 389 x 145mm
Weight: 3.2Kg
Thiele & Small Parameters:
Resonance Frequency (Fs): 30hz
DC Resistance (Re): 6 Ohms
Mechanical Factor (Qms): 3.02
Electrical Factor (Qes): 0.83
Total Factor (Qts): 0.65
BL Factor (BL): 10.2T.m
Effective Moving Mass (Mms): 76.9gr
Compliance (Cms): 356.3 u M/N
Equivalent Cas Air Load (Vas): 426L
Effective Piston Area (Sd): 91.8m2
