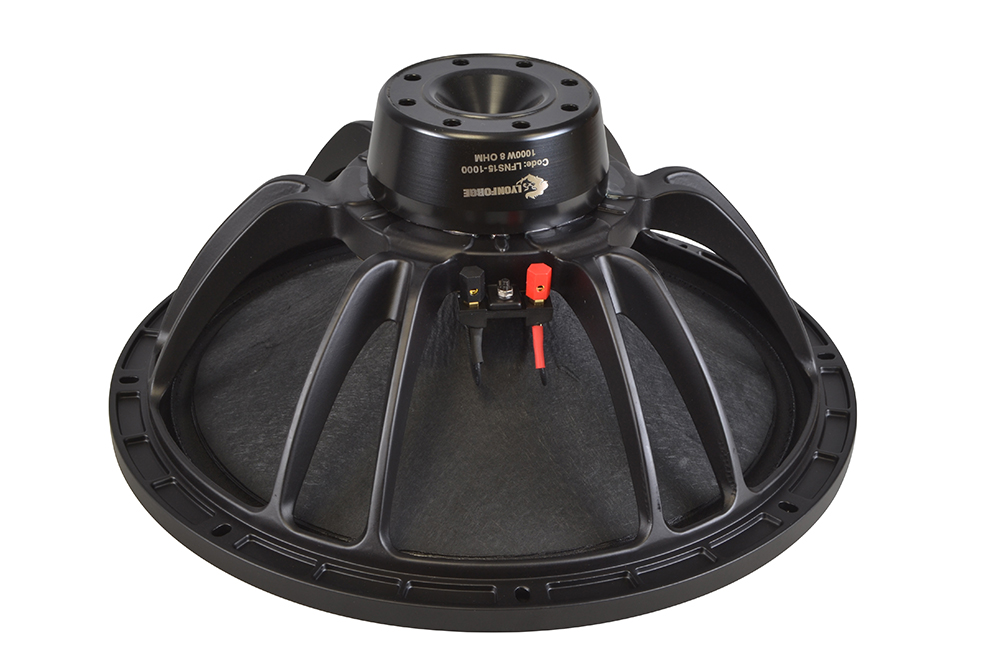

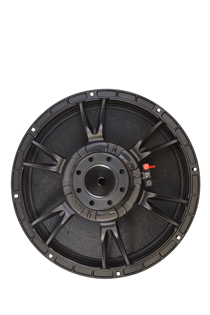

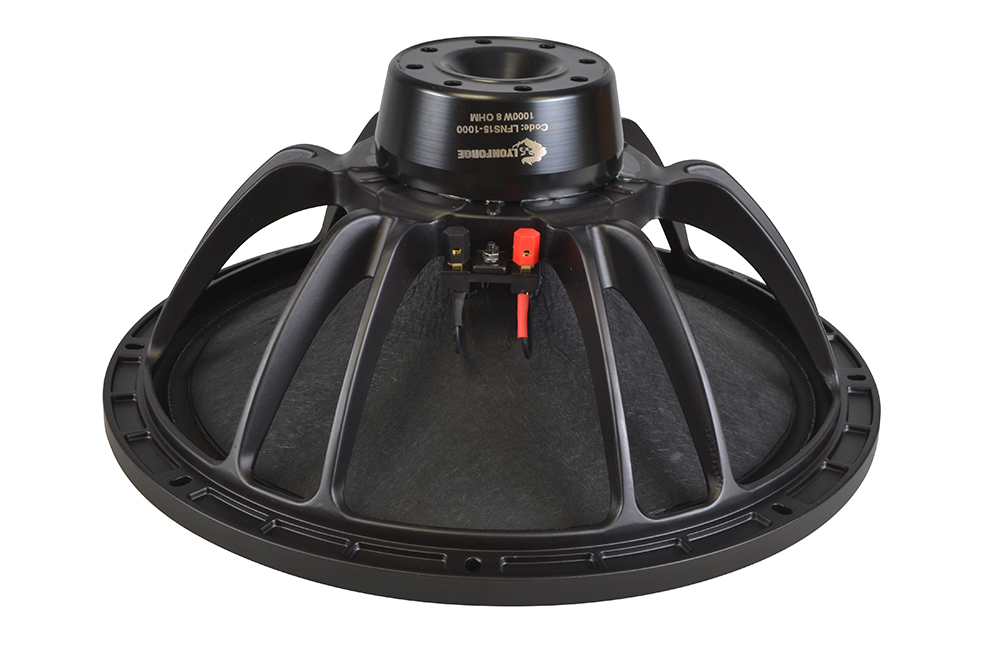

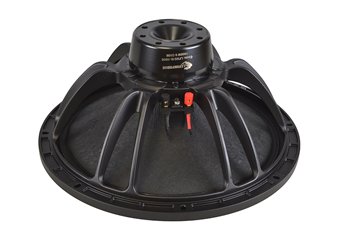

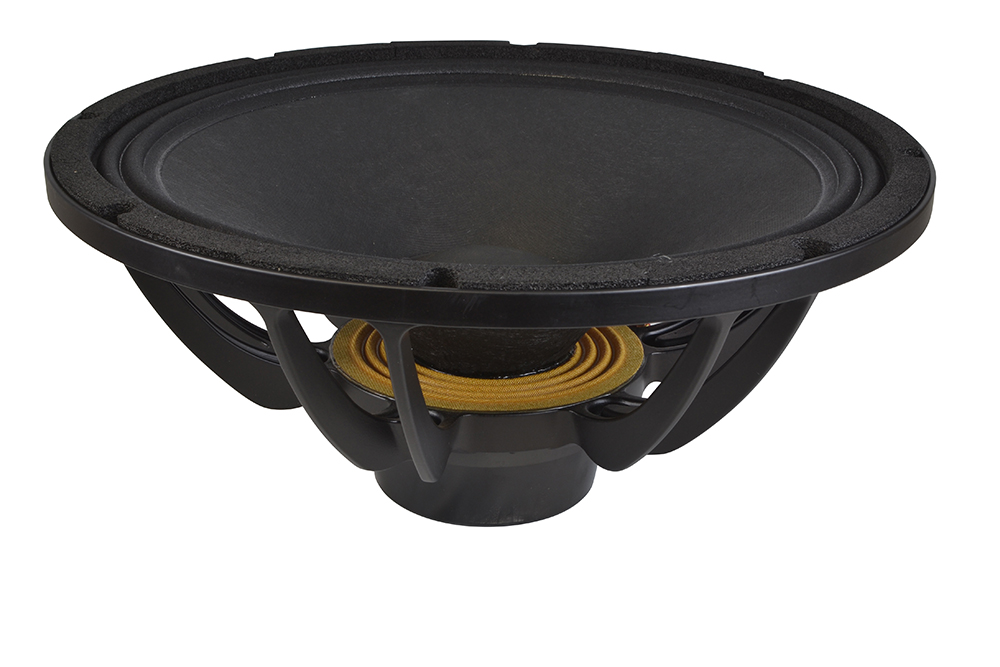

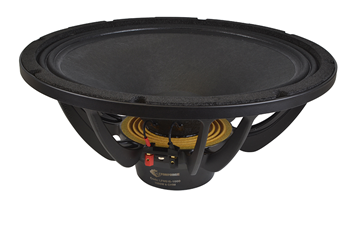

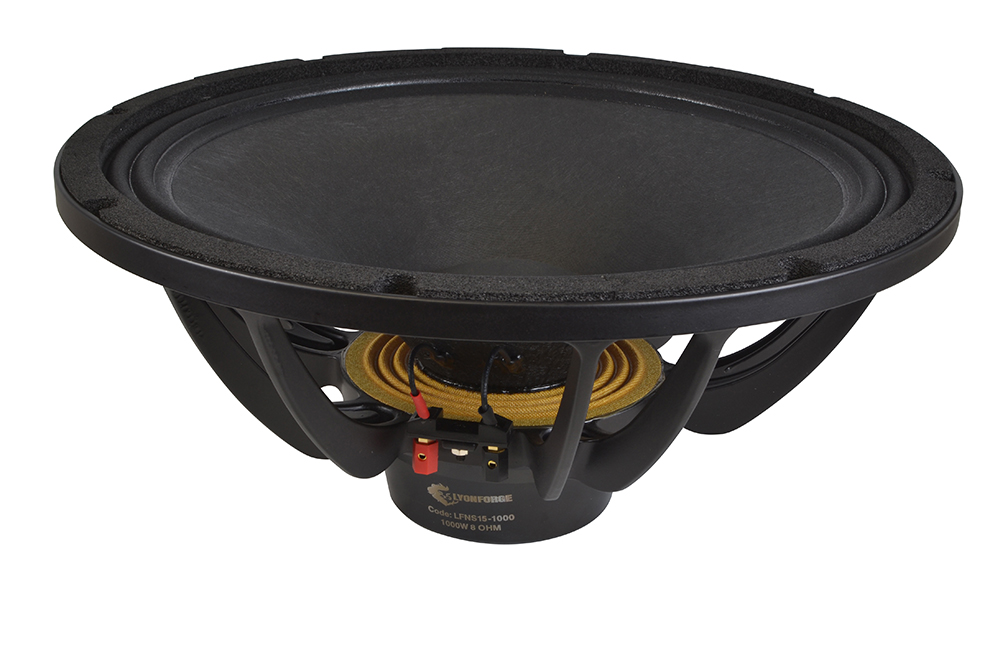

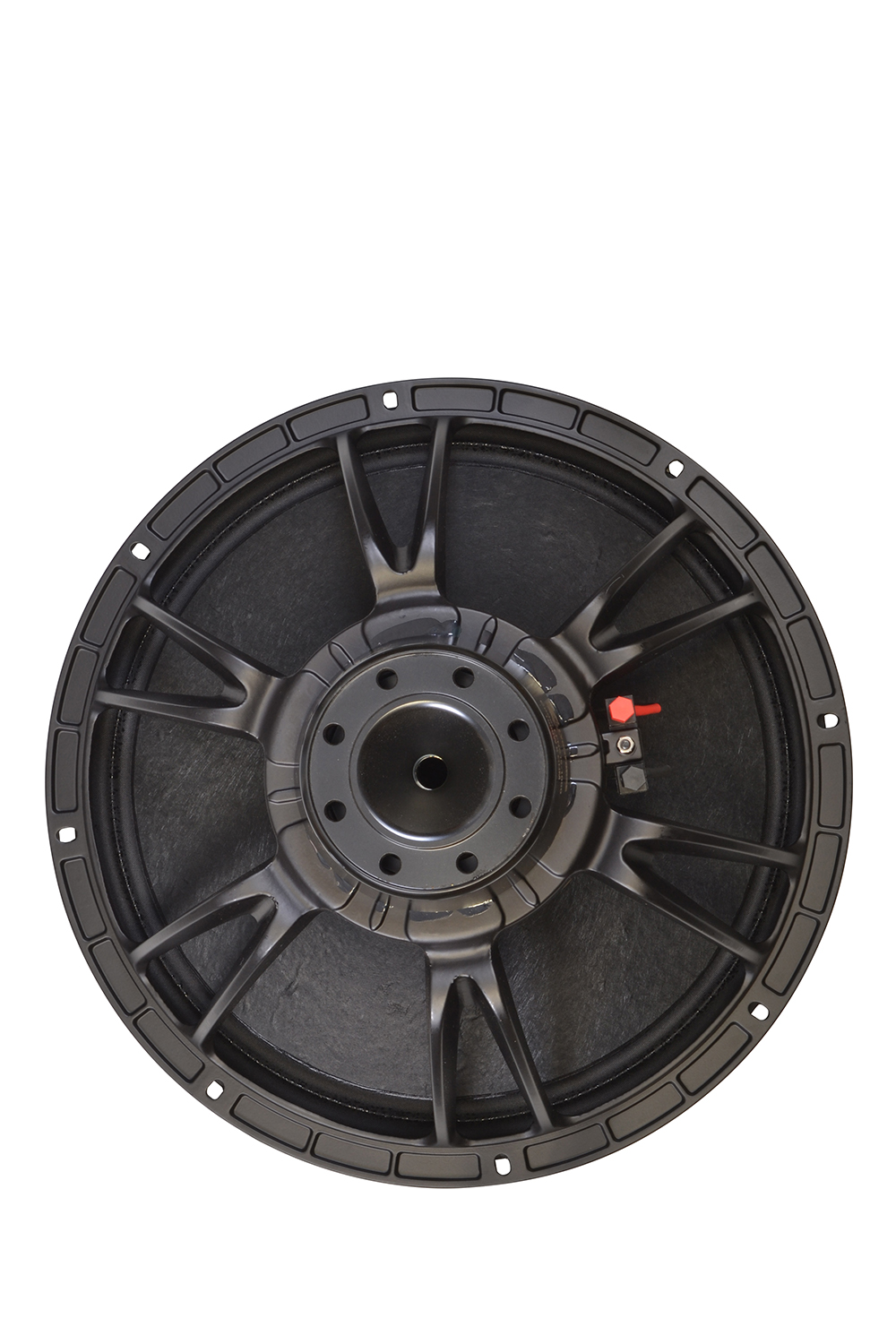

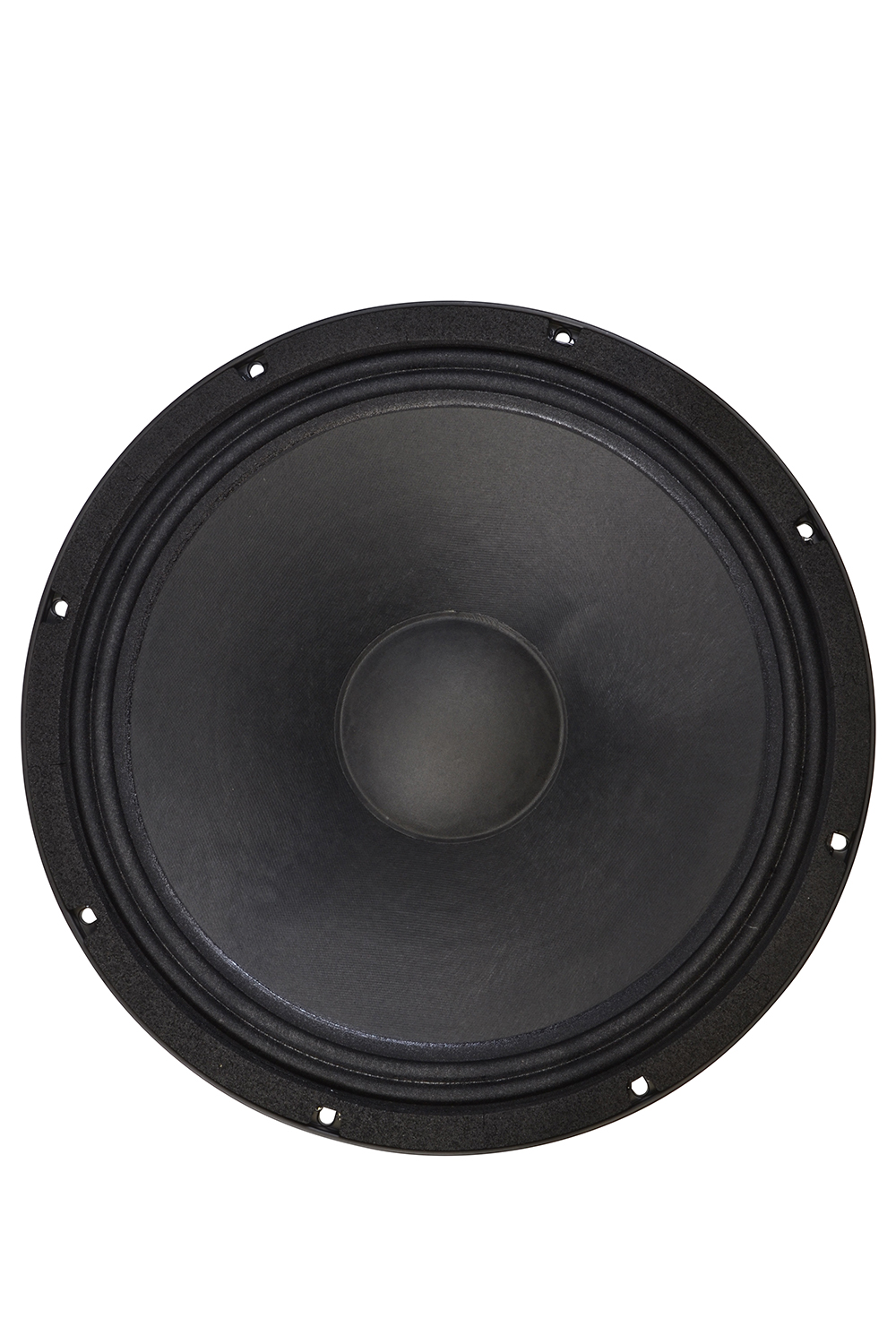

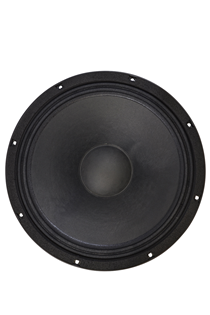

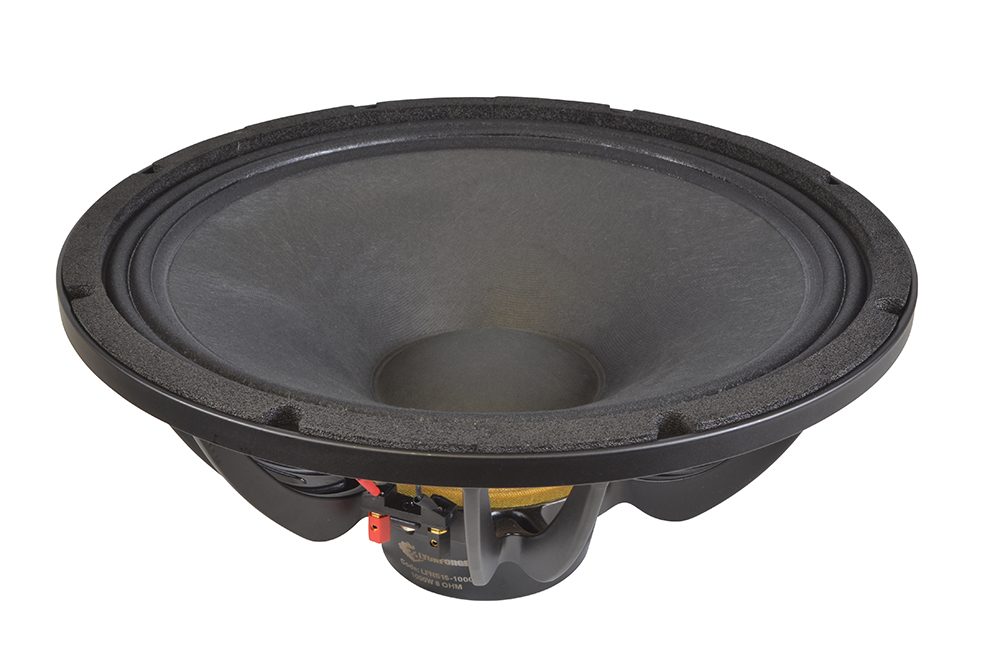

The LyonForge 15" Neodymium Subwoofer delivers precise, powerful sound in a compact, lightweight design. With 1000 watts of continuous power and 500 watts AES, it offers strong, reliable performance for both portable and fixed installations. Its frequency response of 50 Hz to 5 kHz ensures clear, accurate reproduction across low and midrange frequencies, making it ideal for high-performance PA systems, studio setups, and live sound applications.Featuring advanced neodymium magnets, this subwoofer combines high efficiency with reduced weight, making transport and installation easier without sacrificing output. The neodymium design also improves sensitivity and heat resistance, maintaining stable performance during extended, high-volume use. Built to last, the LyonForge 15" Neodymium Subwoofer delivers dynamic, dependable audio with exceptional clarity.
Nominal Diameter: 395mm/ 15 inch Frame: Aluminium Magnet: NdFeB Ring Magnet Diameter: 74mm Nominal Impedance: 8 Ohm Magnetic Gap Depth: 12mm AES Power Handling: 500W Continuous Program Power: 1000W Sensitivity 1W/1M: 95.9dB Frequency Range: 50-5kHz Voice Coil Diameter: 75.5mm/ 3 inch Winding Material: CCAR Former Material: TIL Winding Depth: 17mm Surround (Damper): C Cone and Dust Cap: Paper Surround Material: Polycotton Surround Design: Double-roll Rosonanco Frequency: Fs, 50Hz DC Resistance: Re, 7.2 Ohms Mechanical Factor: Qms, 5.841 Electrical Factor: Qes, 0.476 Total Factor: Qts, 0.44 BL Factor: BL, 22.496T.m Effective Moving Mass: Mms, 106.107gr Compliance: Cms, 94.943 µ M/N Equivalent Cas Air Load: Vas 96.255L Effective Piston Area: Sd, 0.084m² ? (Eta Zero): ?0, 2.467% Overall Diameter: 395mm Bolt Circle Diameter: 375mm Baffle Cutout Diameter: 255mm Depth: 176mm Neight Weight: 4.6kg Shipping Weight: 5.5kg
