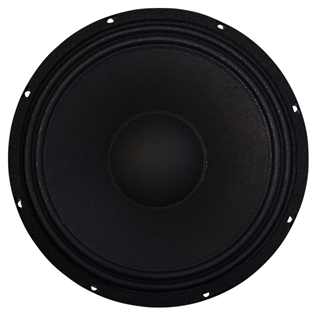

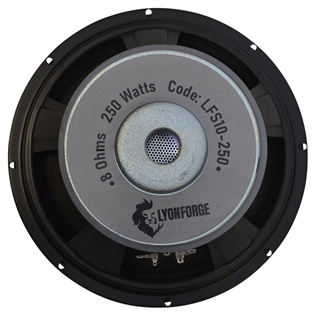

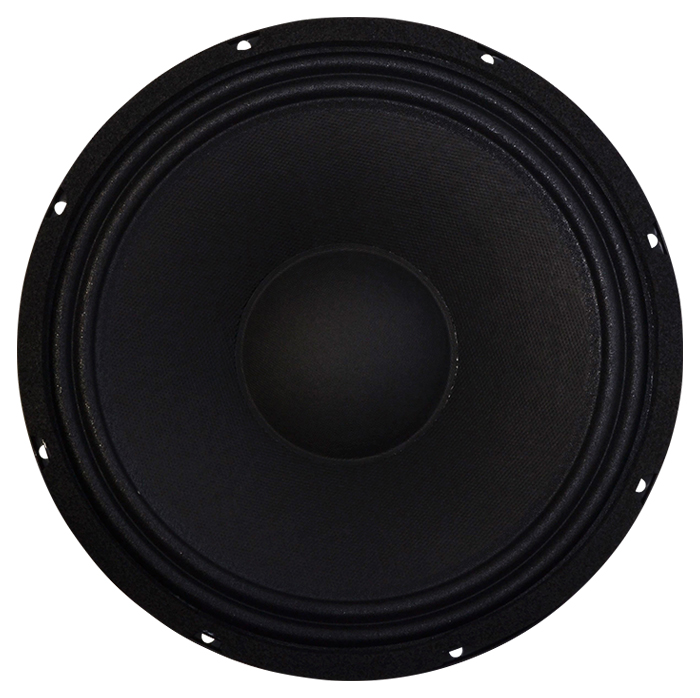

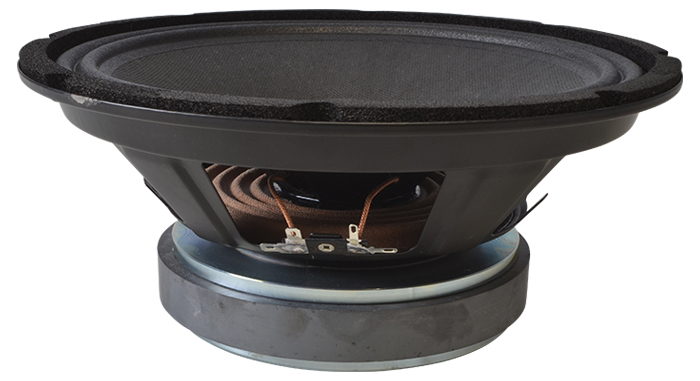

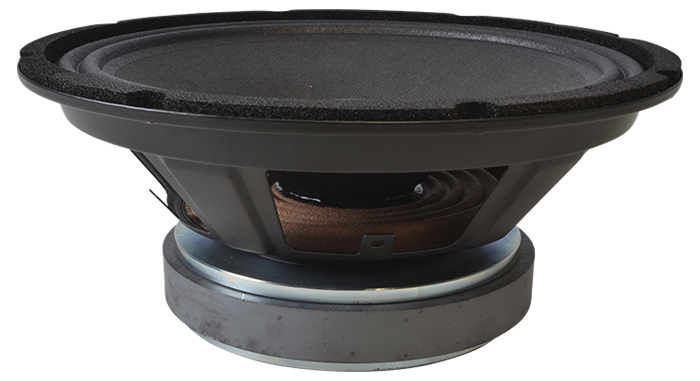

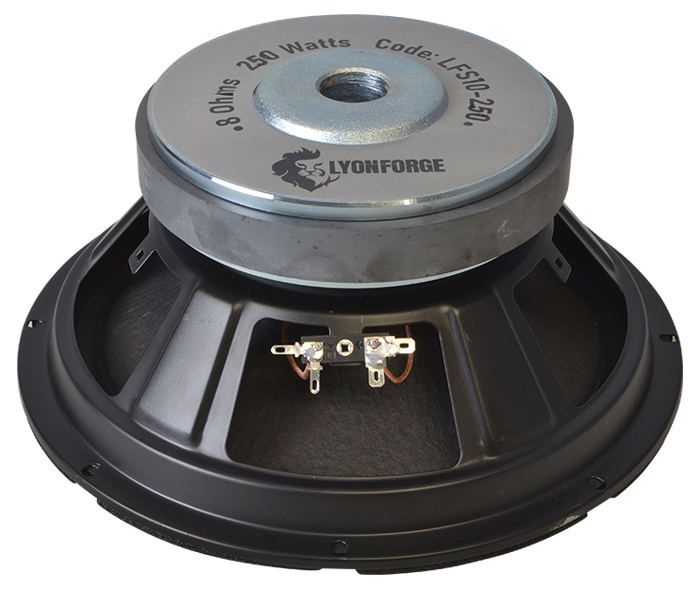

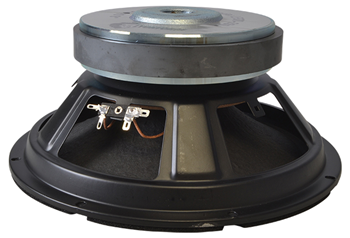

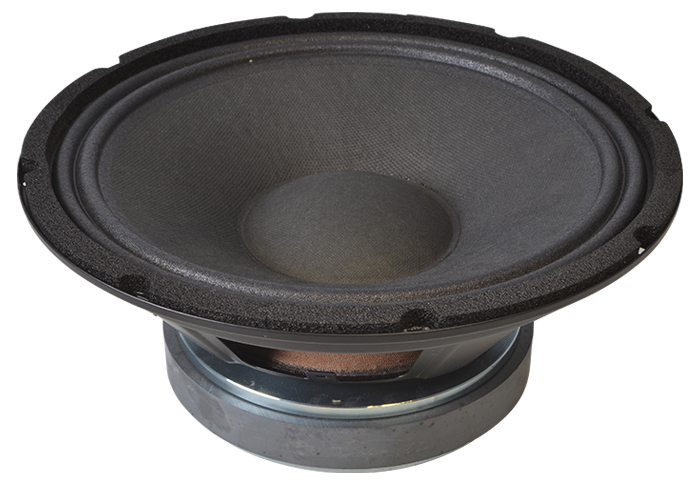

10" Speaker Driver 250 Watt 8 Ohm Full Range Chassis Speaker

Code: LFS10-250
Availability: 1 In Stock
  • 10" Woofer/Full range Driver
  • For Speaker Cabinet Repair
  • New Speaker Projects
  • 200 watts 8 Ohm
£33.00 inc VAT

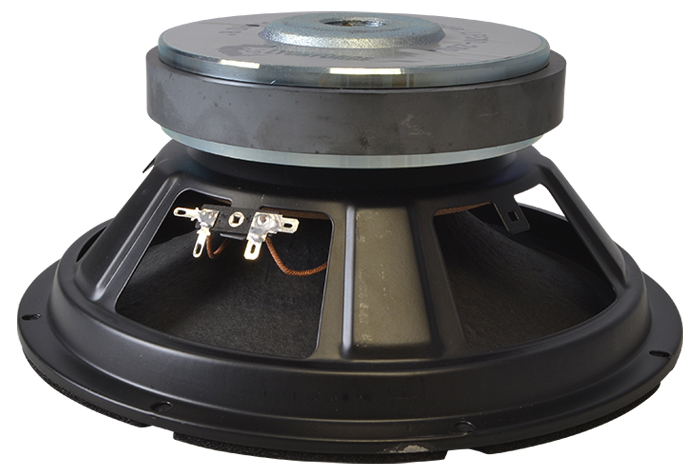

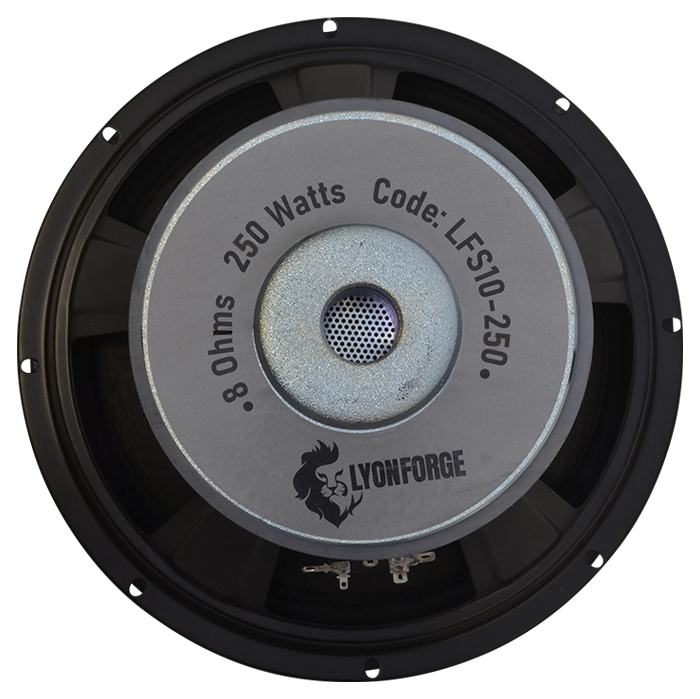

This Lyonforge 10" woofer is designed for both speaker repair and new projects. It handles up to 250 watts of power and has an 8 Ohm impedance, ensuring clear and powerful sound. It features a large 156mm magnet that provides strong bass response and high efficiency across all frequencies.

Suitable for replacing PA speaker components or for use in custom speaker installations, the Lyonforge LFS10-200 10" Woofer meets high quality and performance standards. Consider it for upgrading your sound system to achieve better clarity and power.

Driver Size: 10"
Power AES: 150 Watts
Continuous Programme: 250 Watts
Impedance: 8 Ohm
Frequency Range: 37-3000kHz
Sensitivity: 90.8dB
Bolt Circle Diameter: 250mm
Cut-out Diameter: 234mm
Dimensions: 258 x 105mm
Weight: 3.4Kg
Thiele & Small Parameters:
Resonance Frequency (Fs): 37hz
Mechanical Factor (Qms): 1.918
Electrical Factor (Qes): 0.367
Total Factor (Qts): 0.308
BL Factor (BL): 14.3T.m
Effective Moving Mass (Mms): 53gr
Compliance (Cms): 337 u M/N
Equivalent Cas Air Load (Vas): 55L
Effective Piston Area (Sd): 33m2
