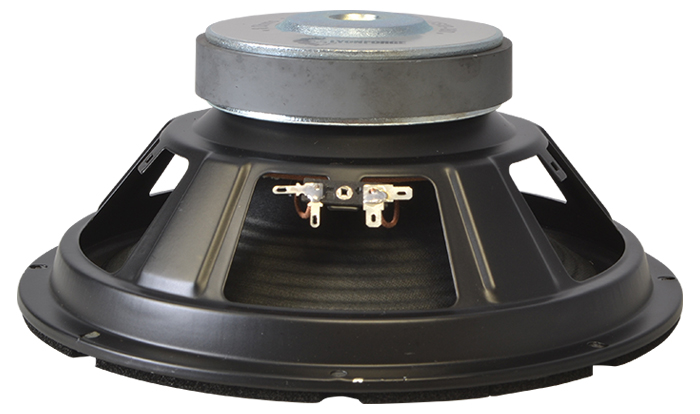

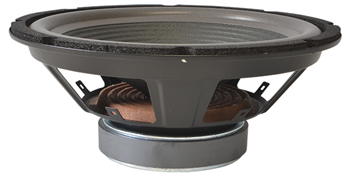

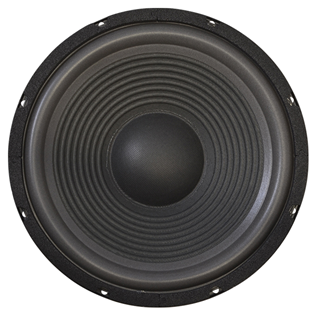

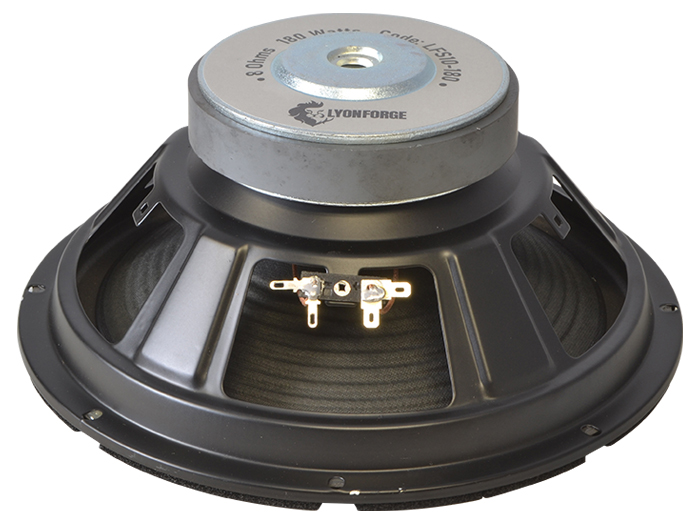

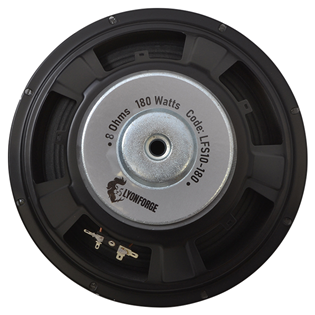

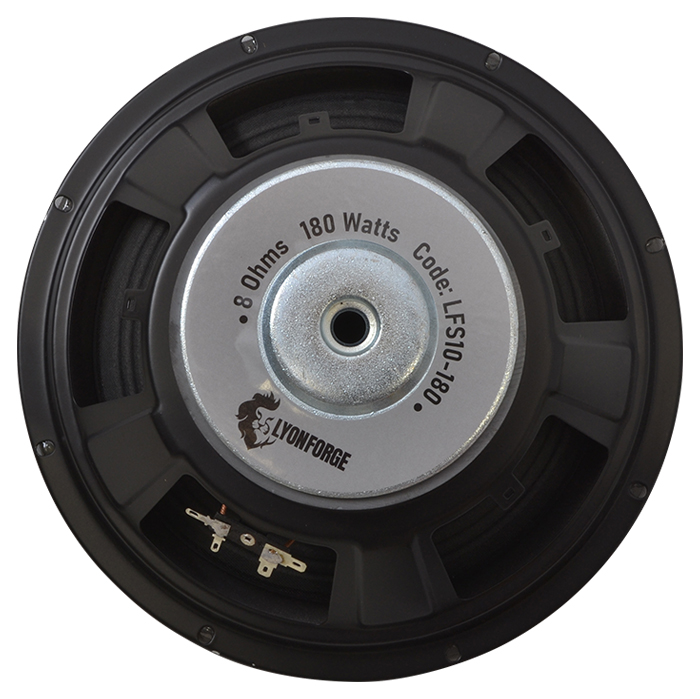

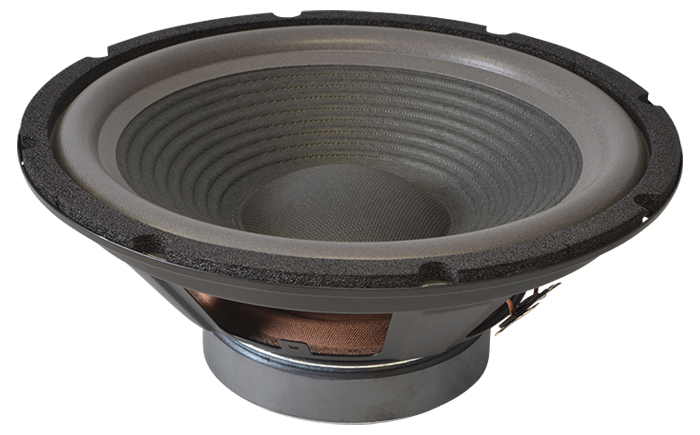

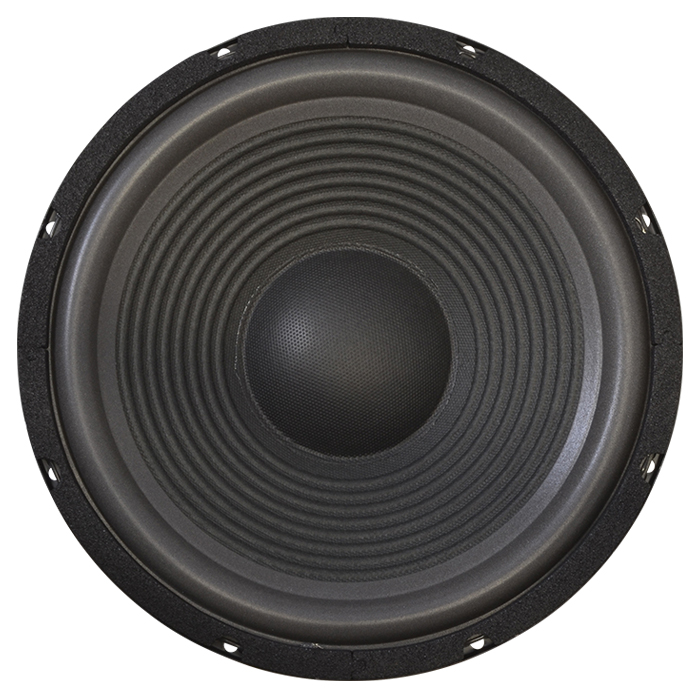

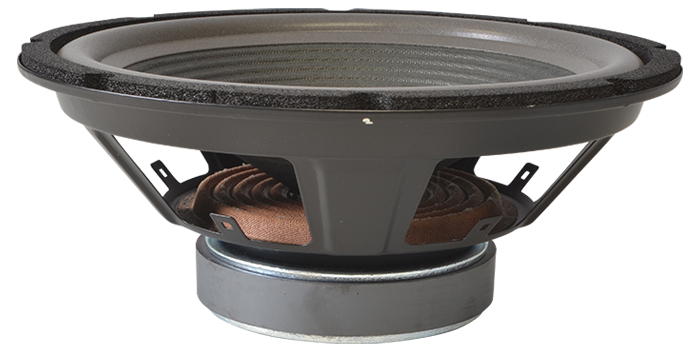

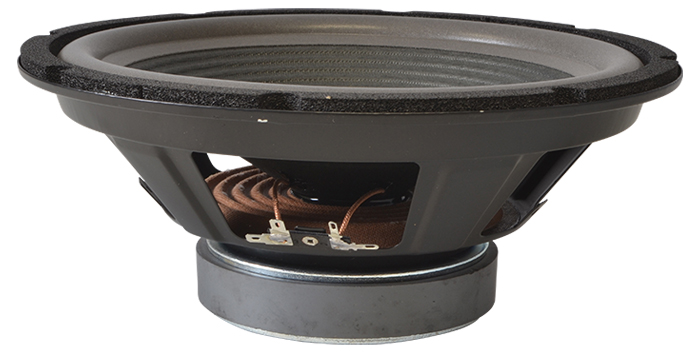

10" Speaker Driver 180 Watt 8 Ohm Full Range Chassis Speaker

Code: LFS10-180
Availability: In Stock
  • 10" Woofer/Full Range Driver
  • For Speaker Cabinet Repair
  • New Speaker Projects
  • 160 watts 8 Ohm
£19.95 inc VAT

This 10-inch Lyonforge woofer is designed for both repairs and new speaker projects. It can handle 180 watts of power and has an 8 Ohm impedance. The woofer is a full-range driver, making it suitable for PA speaker repairs and systems that require good mid-range and bass. It's useful for updating existing setups, replacing old drivers or building new sound systems, providing excellent audio quality.

Driver Size: 10"
Power RMS: 180W
Impedance: 8 Ohm
Frequency Range: 37-4000kHz
Sensitivity: 94.3dB
Bolt Circle Diameter: 250mm
Cut-out Diameter: 236mm
Dimensions: 256 x 115mm
Weight: 1.89Kg
Thiele & Small Parameters:
Resonance Frequency (Fs): 37hz
Mechanical Factor (Qms): 2.36
Electrical Factor (Qes): 0.87
Total Factor (Qts): 0.63
BL Factor (BL): 4.89T.m
Effective Moving Mass (Mms): 14.8gr
Compliance (Cms): 1.21 u M/N
Equivalent Cas Air Load (Vas): 297L
Effective Piston Area (Sd): 41.55m2
