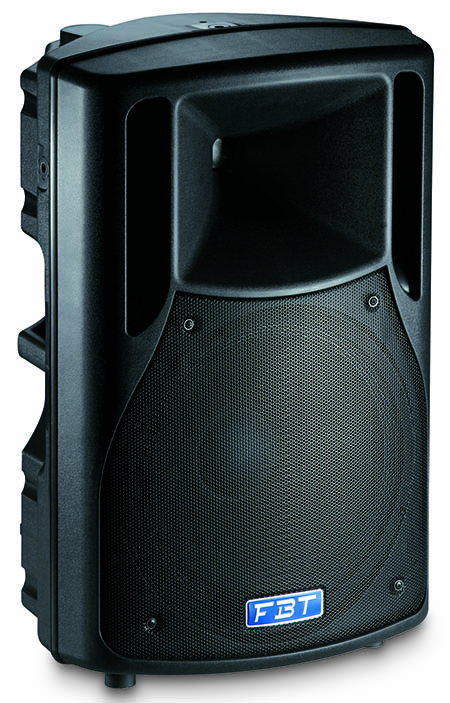

FBT HiMaxX 60A Active Speaker

Code: HMAX60A
Availability: In Stock
  • Active Speaker
  • Bi-Amplified Cabinet
  • XLR Input & Link
  • 3 Band Eq

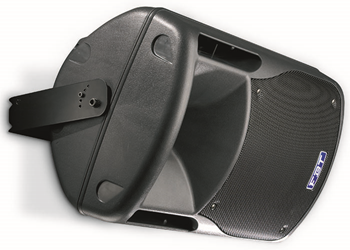

  • Four M10 Flying Points

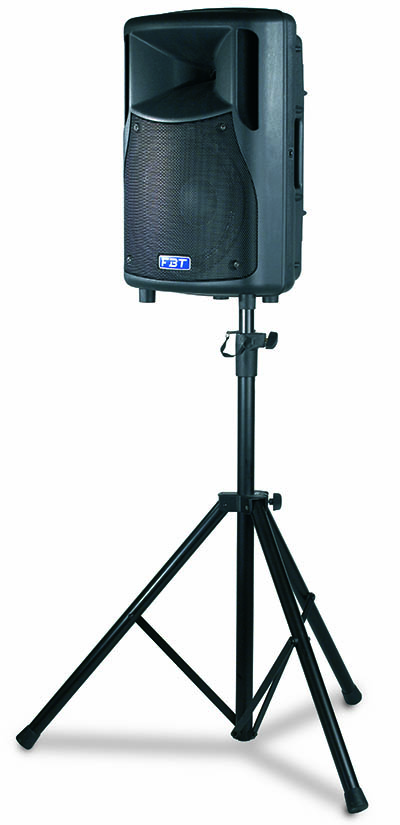

  • 35mm Speaker Stand Socket
£1349.00 inc VAT

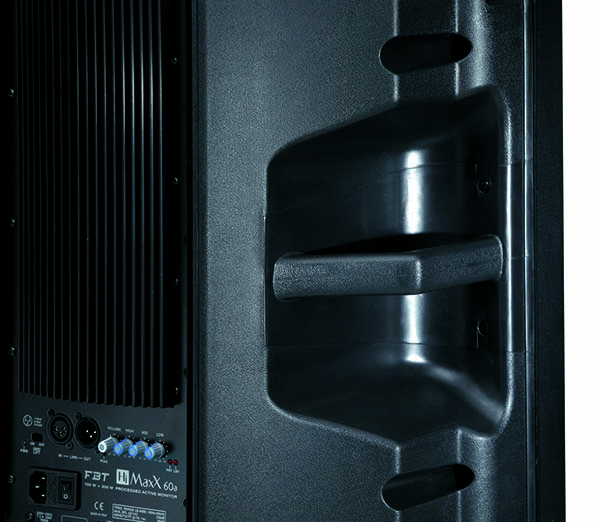

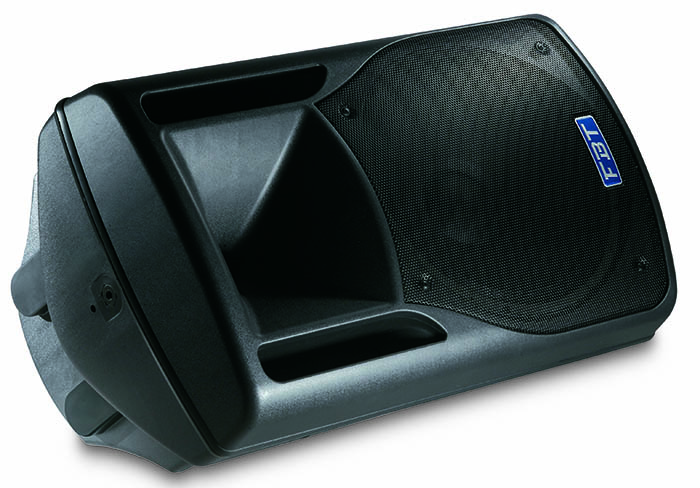

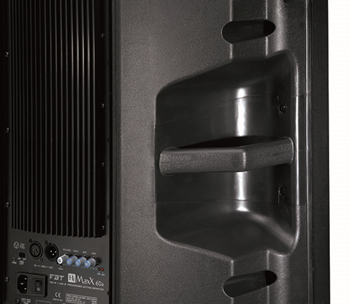

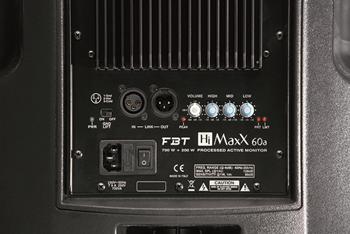

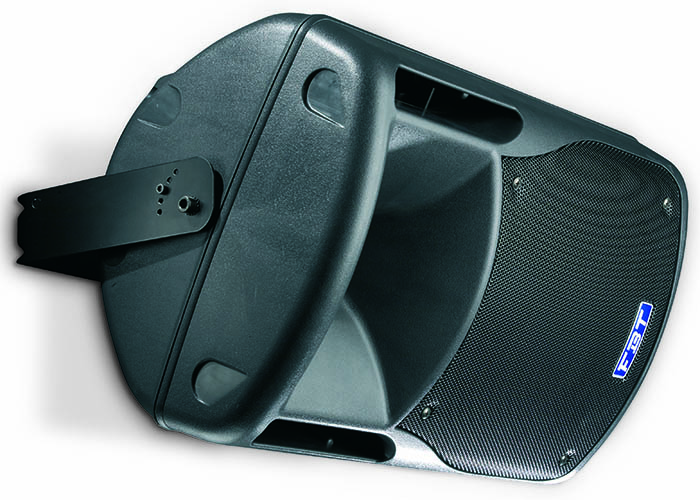

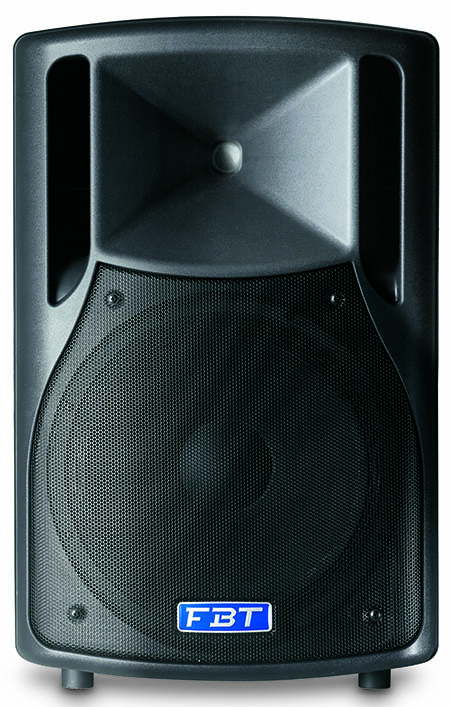

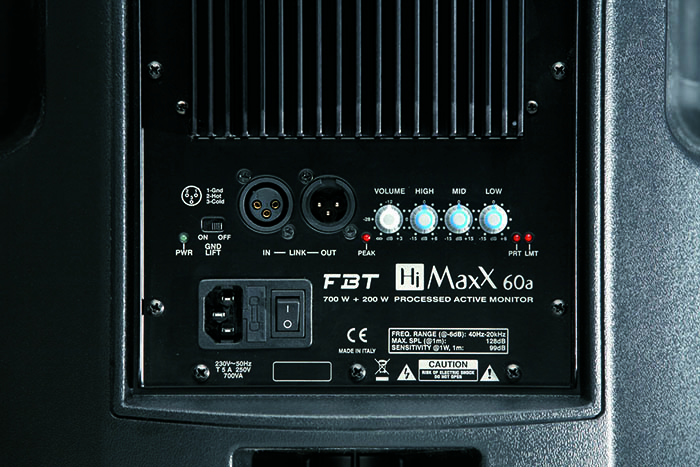

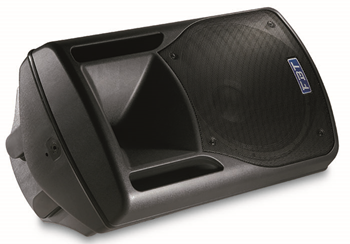

The FBT HiMaxX 60A speaker features lightweight, yet rugged gas injected molded polypropylene cabinet construction. The asymmetrical shape of the HiMaxX 60A cabinet also allows use as a floor stage monitor. The HiMaxX speaker is a two way design incorporating a custom B&C 15" low frequency woofer 3" voice coil with a neodymium magnet structure, die cast aluminium frame and a B&C 2,5" voice coil compression driver coupled to a 90°H x 60°V horn with a 1,4" exit. The active internal crossover is at a fixed frequency of 1,2kHz. With a frequency range of 40Hz-20kHz, the cabinet provides hi fidelity sound for both speech and music applications with a maximum SPL of 135dB. A front face steel grille protects the woofer from external damage. The bi amplified HIMaxX 60A active speaker features a 1100W RMS Pulse Width Modulation (PWM) low frequency max amplifier and a 250W RMS class G high frequency max amp. The control panel features a Master volume control, 3 band Eq. with -15/+6dB of cut/boost @ 80Hz LF, -15/+15dB of cut/boost @ 2,5k mid-range and -15/+6dB cut/boost @ 10kHzHF, balanced XLR link output jack, ground lift switch, led power on, led Peak, protection and limiter overload led indicators. The four M10 fly points built into the cabinet, along with the optional mounting brackets allow the speakers to be surface mounted on walls or ceilings. A standard 1,38" speaker stand socket allows the HiMaxX 60A to be mounted on speaker stands.

Power: 900W RMS
Response: 40Hz - 20kHz
SPL: 135dB
Dimensions: 482 x 757 x 600mm
Weight: 28.3Kg
