UHF Beltpack Wireless Microphone System 4 Tuneable Channels

Code: TU4B
Availability: In Stock
  • Independent 7-Band EQ for each Channel
  • True Diversity Antennas with Internal Distro
  • Auto Frequency Sweep Function

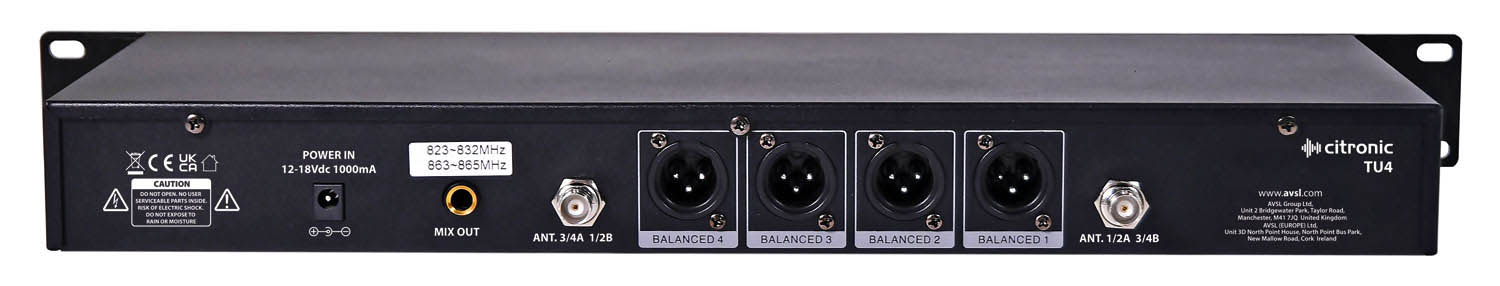

  • Individual XLR Outputs or Single Mix Jack Output

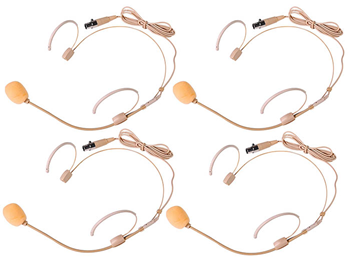

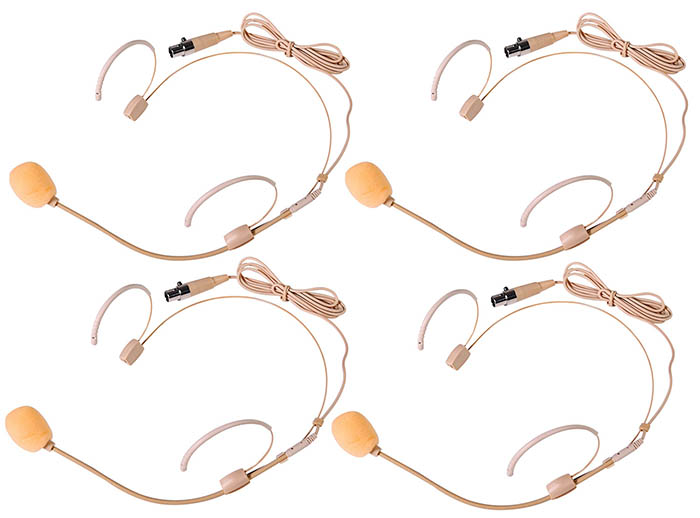

  • Supplied with both Headset and Lavalier Microphones
  • License-Free Operation (863-865MHz) in UK
£353.00 inc VAT

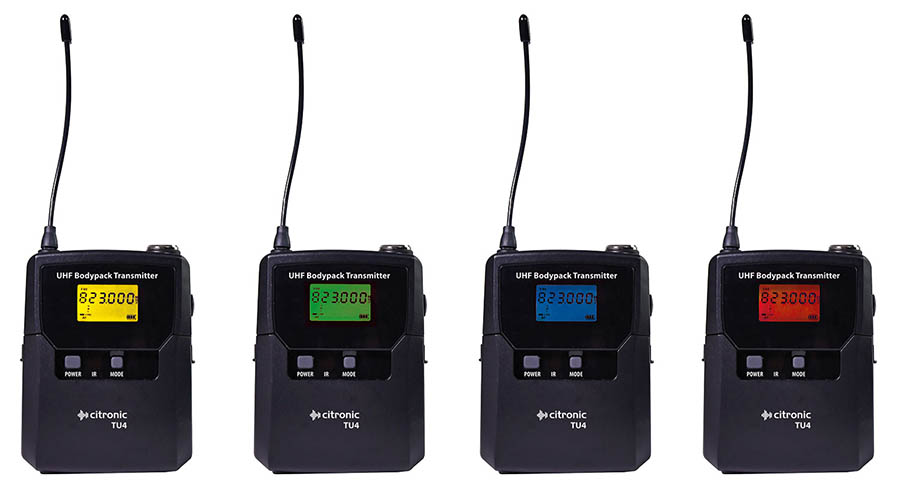

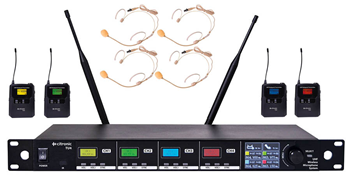

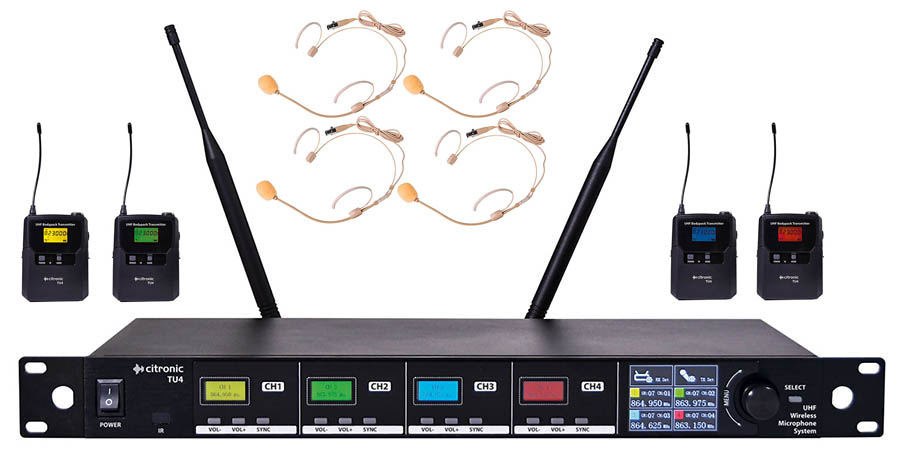

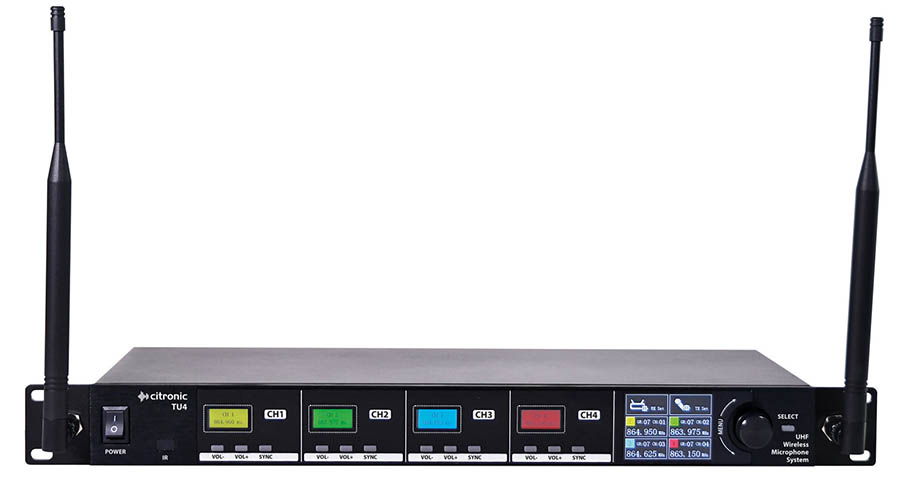

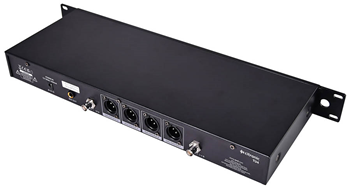

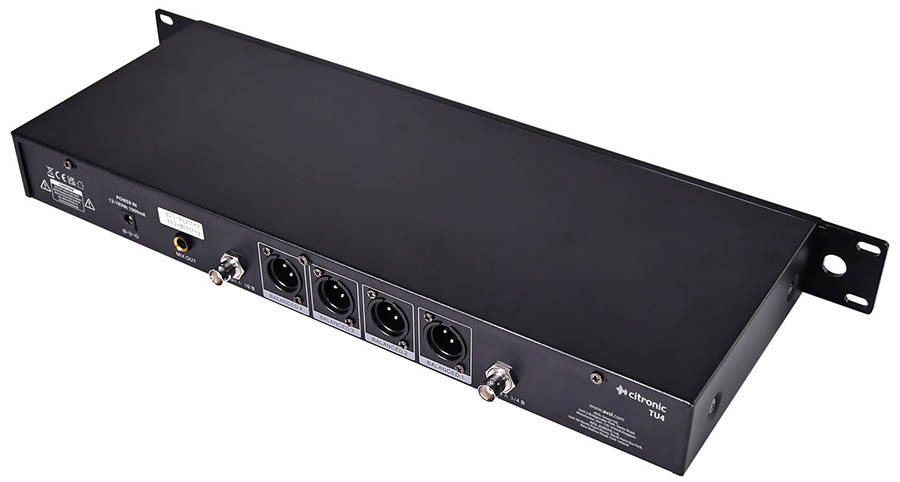

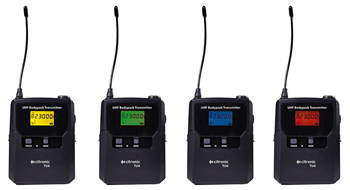

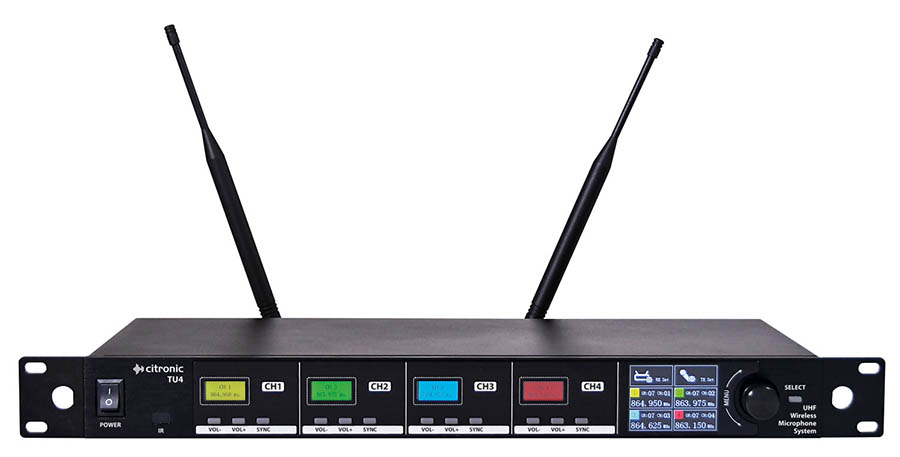

True diversity UHF wireless microphone system with four individually programmable channels that sync to each transmitter to set the carrier frequency, EQ settings, transmission power, and even the display backlight colour for identification. Four compact belt packs with headset and lapel microphones with fully balanced signal connection are supplied in the system. Twin BNC antennas can be connected at the rear of the receiver or to the front panel when 19" rack-mounted using the supplied BNC extension cables. All 4 channels are tuneable within the license-free UHF and regulated duplex gap bands, arranged in 8 groups of 8-16 carrier frequencies. Both receiver and transmitter settings are programmed via a front panel full colour TFT display with a rotary encoder for parameter adjustments. Each channel has a further backlit display that corresponds to the display on each transmitter and sync's wirelessly via an IR connection, avoiding the complication of multiple controls on each transmitter. For uncompromising wireless performance, the TU4H has been designed to provide a reliable and adaptable system for stage performances, conferences, theatrical productions and other vocal duties.

Power Supply: 12-18Vdc, 1000mA
Carrier Frequency: 823-832/863-865MHz
Wireless Range: 60m
Beltpack Dimensions: 90 x 60 x 25mm
Receiver Dimensions: 482 x 185 x 44mm
Weight: 74g (Transmitter) & 1.5Kg Receiver
