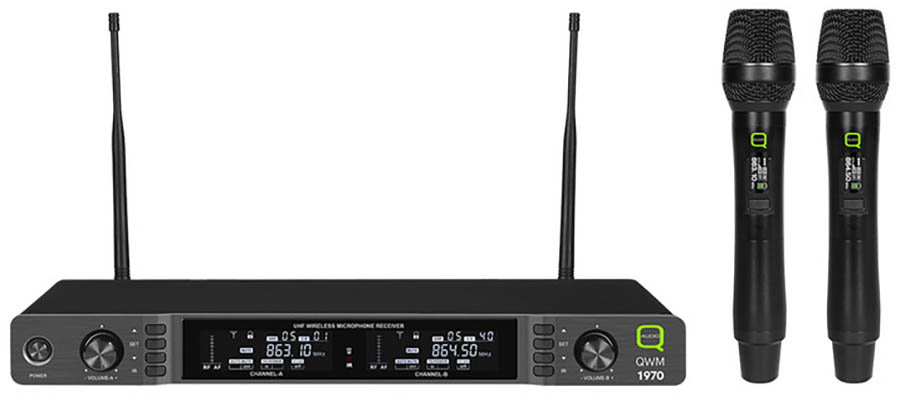

Handheld Wireless Microphone System UHF Dual Channel Diversity 863-865MHz or 606-614MHz

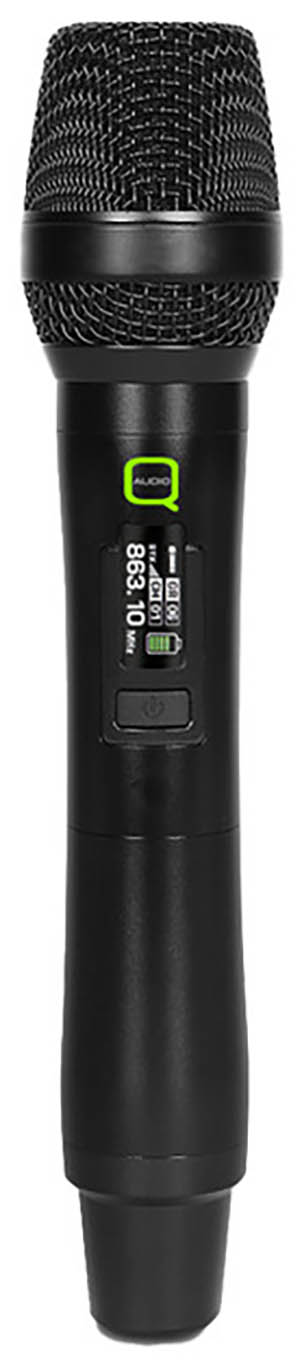

The Q-Audio QWM1970HH Series is a wireless microphone system that comes equipped with two handheld microphones. These microphones are available in either a licence-free frequency band or a licensed frequency band, depending on the user’s needs. Up to two systems can operate simultaneously within the licence-free band, while the licensed band allows for the use of up to four systems, making it possible to configure a 12-way setup.

The QWM1970HH system features a true diversity, full bandwidth receiver that ensures maximum RF stability, contributing to exceptional vocal clarity and reliable wireless performance. This makes it an excellent choice for performers seeking freedom of movement on stage without compromising sound quality. The rugged and ergonomically designed transmitters are built to withstand the demands of regular transport and live use.

For users seeking even greater flexibility, the handheld microphones can be substituted with the QWM1970 BP KIT bodypack system, available as an optional add-on.

Additional features of the system include a Phase Lock Loop (PLL) for consistent frequency stability and an IR sync function that simplifies setup by allowing quick synchronization between transmitter and receiver. The system operates in the 863–865 MHz range for licence-free use and in the 606–614 MHz range for licensed operation, offering up to 80 selectable frequencies.

The receiver is equipped with a large LCD display that provides real-time information on RF level, audio level, channel, and frequency. The transmitters also feature their own LCD screens for convenient monitoring. The unit includes removable BNC antennas, supports automatic frequency scanning, and offers both balanced XLR outputs for each channel and an unbalanced mixed output. Rack-mount brackets are included, allowing the full-width receiver to be securely installed in a standard rack setup.
