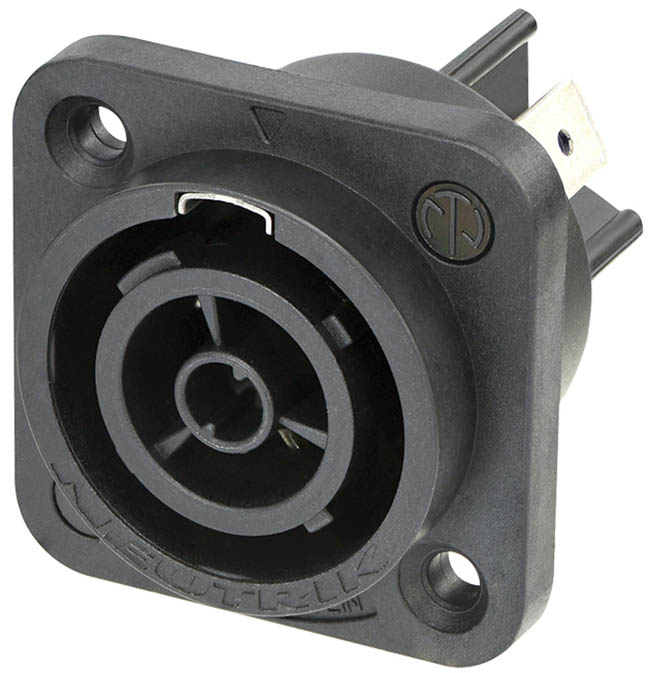

PowerCON TRUE1 Chassis Connector Female – Flat Tab Terminals

Code: TRUE1F
Availability: In Stock
  • Chassis Mount Power Outlet Connector with 1/4" Flat Tab Terminals
  • Heavy Duty Sealed Power Connector for Harsh and Demanding Environment
  • Outdoor Protection According to IP65 and UL50E Enclosure Type 4
  • True Mains Connector with Breaking Capacity
  • Lockable 16A Single Phase Connector
£7.75 inc VAT

The powerCON TRUE1 TOP is a locking 16 A true mains connector for indoor or outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The connector can be connected or disconnected under load or live, ideal for use in the harsh and demanding environment applications of entertainment equipment like PA systems, LED screens or lighting.

Wire Size: 2.5mm²
Rated Current Per Contact: 16A
Rated voltage: 250 Vac
