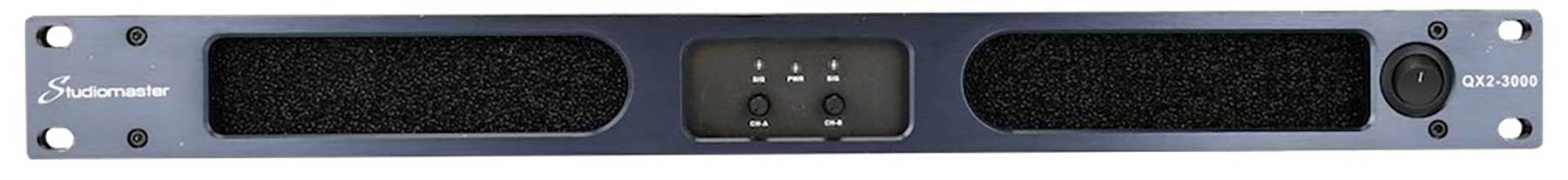

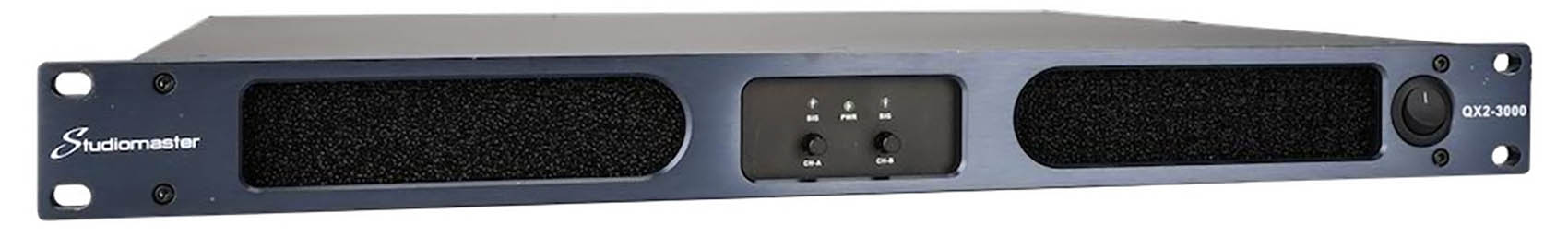

Power Amplifier 2x 1700W at 4 Ohm 1U Studiomaster QX2-2000

Code: QX22000
Availability: Expected soon
  • Universal 90-250V Power Supply
  • Reliable Efficient Operation Down to 2ohm Loads
  • Variable Speed Fan Cooling
  • Stereo/Parallel/Bridge Modes
  • Multiple Gain Modes
  • Output Limiter
  • Balanced XLR Inputs
  • Thermal, Overload, DC Protection
  • Thermal, Fault and Limiter Indicators
£749.00 inc VAT
Add

The QX2-2000 power amplifier delivers 2 × 2890 watts RMS at 2 Ohms, providing reliable performance for high-power passive loudspeaker systems. Housed in a compact 1U rack-mount chassis and weighing only 12 kg, it is well-suited to both fixed installations and touring applications. The unit is equipped with balanced XLR inputs and corresponding XLR link outputs, as well as Speakon connectors for loudspeaker output. Cooling is managed by temperature-controlled fans, and the amplifier supports stereo, parallel, and bridge operating modes. Comprehensive protection circuitry is included, covering thermal overload, short circuit, and DC fault conditions.

Power Supply: 90-260Vac, 50/60Hz
Power 8 Ohms: 2 x 1000W
Power 4 Ohms: 2 x 1700W
Power 2 Ohms: 2 x 2890W
Power Bridged 16 Ohms: 2000W
Power Bridged 8 Ohms: 3400W
Power Bridged 4 Ohms: 5780W
Signal Inputs: XLR
Speaker Outputs: Speakon
Dimensions: 483 x 462 x 44mm
Weight: 12Kg
