4 x 595W Digital Power Amplifier

Code: HX41400
Availability: In Stock
  • Compact 4 Channel Digital Amplifier
  • 1U Rack Mountable
  • Reliable Efficient Operation Down to 2 Ohm Loads
  • Variable Speed Fan Cooling
  • Status and Protection Indicators
  • Stereo, Parallel or Bridge Modes
  • Output Limiter
  • Balanced XLR Inputs & Speaker Outputs
  • Thermal, Overload & DC Protection
£664.00 inc VAT

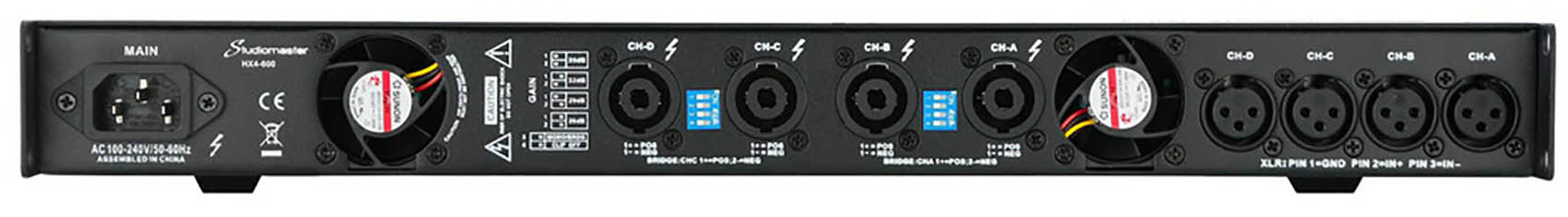

The Studiomaster HX4-1400 is a power amplifier designed to deliver four channels of audio in a compact 1U form factor. It is suitable for various applications, including installation, rental, and touring. The amplifier provides a total power output of 4x 595 watts at 4 ohms.

One of the key features of the HX4-1400 is its lightweight and compact design, making it easy to transport and install. Despite its small size, it offers high performance power ratings. The amplifier includes comprehensive protection features such as power factor correction (PFC), which helps optimize power efficiency, and universal power supplies that can operate between 90-250VAC.

The HX4-1400 is capable of performing at loads as low as 2 ohms, making it versatile for different speaker configurations. It includes variable speed fan cooling to prevent overheating during prolonged use. The amplifier supports stereo, parallel, and bridge modes, allowing flexibility in configuring the audio setup.

To ensure the safety of the system and indicate its status, the amplifier is equipped with various indicators. These include output limiters, thermal, overload, DC protection, fault, and limiter indicators. Balanced XLR inputs and professional speaker connector outputs are provided for reliable audio connections.

Overall, the Studiomaster HX4-1400 power amplifier offers a combination of performance, power, and reliability in a compact and affordable package, suitable for installation, conference, entertainment, and smaller touring and rental applications.

Power Supply: 90-260Vac, 50/60Hz
Power 8 Ohms: 4 x 350W
Power 4 Ohms: 4 x 595W
Power 2 Ohms: 4 x 1015W
Power Bridged 16 Ohms: 2 x 700W
Power Bridged 8 Ohms: 2 x 1190W
Power Brdiged 4 Ohms: 2 x 2030W
Signal Inputs: XLR
Speaker Outputs: Speakon
Dimensions: 483 x 370 x 44mm
Weight: 9Kg
