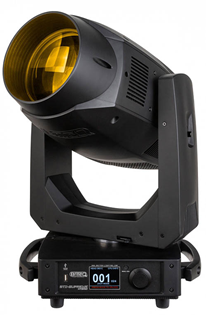

BTX-Supreme Moving Head with Spot, Beam & Wash Effects HRI 471W Lamp

Availability: In Stock-Delivery 5-7 days
  • Hybrid Moving Head with HRI 471W SN Lamp
  • Colour Wheel with 13 Colours, Including 3200K CTO Filter + White
  • Gobo Wheel with 13 Static Gobos + Open
  • Gobo Wheel with 9 Easily Replaceable Rotating/Indexable Glass Gobos
  • 2 Prism Wheels each with 4 Rotating/Indexable Prisms
  • 1 Rotating/Indexable Animation Wheel that can be Combined with Different Gobos
  • Motorized Zoom + Focus with Calibrated DMX Values
  • Supports DMX512/RDM, Art-Net™, sACN Protocols
  • Integrated Wireless DMX Module (W-DMX Sweden) with Internal Antenna to Prevent Antenna Breakage
  • 2 DMX Channel Modes
  • 3/5 Pin DMX & RJ45 Input/Output
  • PowerCon True1 Daisy Chaining
  • Equipped with 2 Omega Brackets for Fast Installation
£3495.00 inc VAT

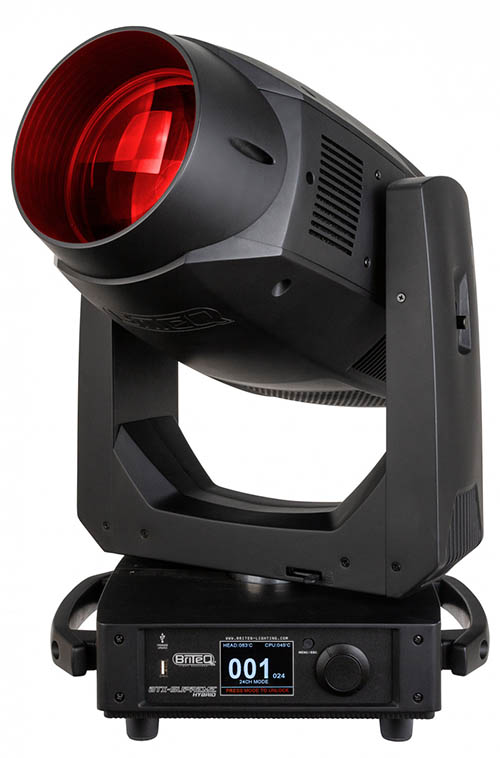

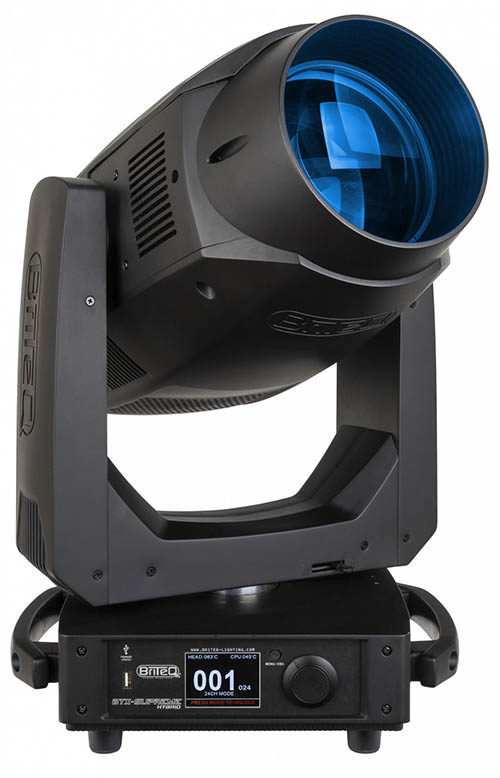

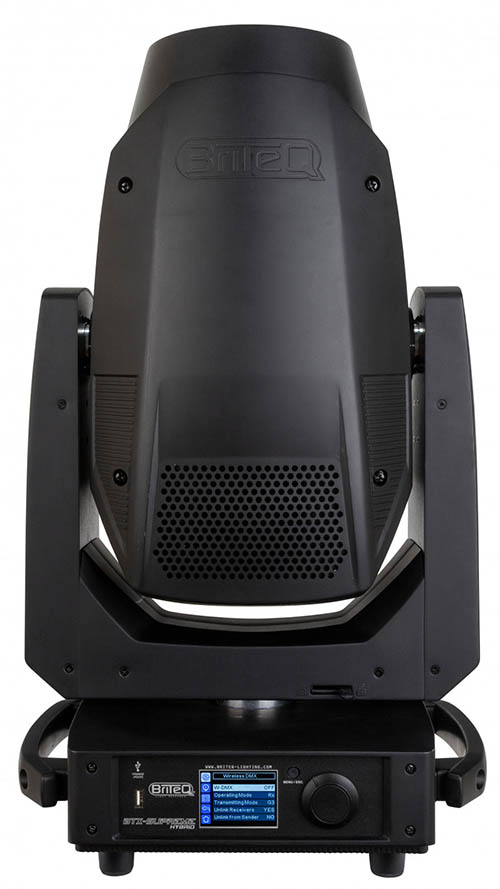

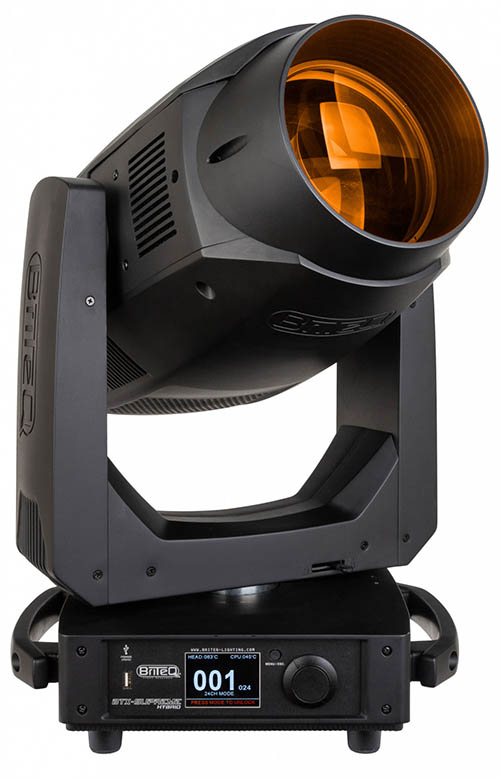

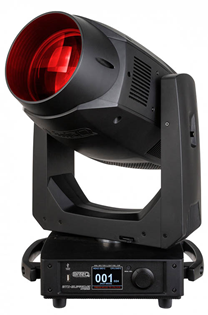

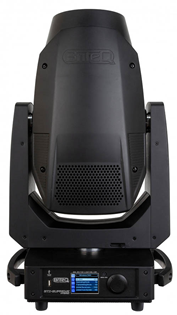

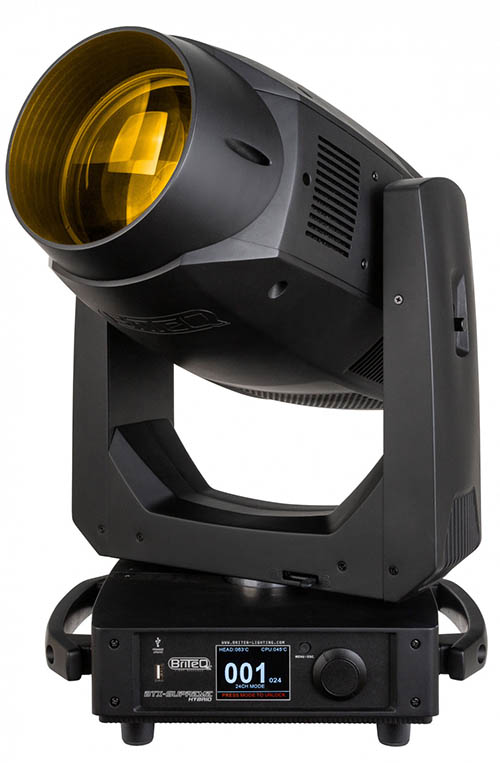

The Supreme hybrid is an impressive moving head designed for demanding professional lighting applications, Ideal for large stages, theatres and events.

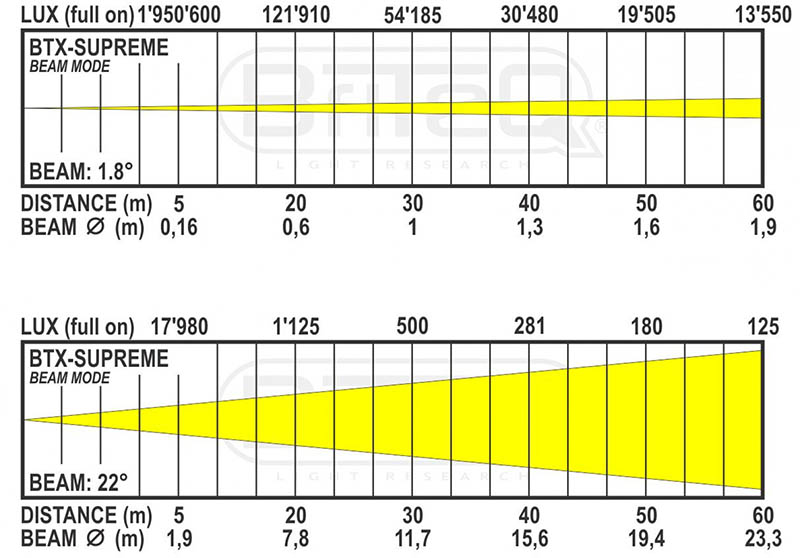

The BT-Supreme can produce spots, beams and washes. It utilises an Osram Sirius HRI 471W SN lamp with a CCT of 7500K, provides exceptional brightness with a maximum lux output of 485,000 @ 10m for the beam (1.8° to 22°) and 132,000 @ 10m for the spot (3° to 42°), is equipped with Hi-Q optics to maximize brightness and clarity and offers versatile beam and spot options for a wide range of lighting effects.

Enjoy precise and fast CMY-colour mixing for a broad spectrum of colours. The Supreme has a colour wheel with 13 colours, including a 3200K CTO-filter and white. Two gobo wheels: one with 13 static gobos + open and another with 9 rotating/indexable glass gobos. Animation wheel for dynamic effects are created by combining rotation/indexing with different gobos. Motorized zoom and focus with calibrated DMX values offer flexibility in adjusting the beam.

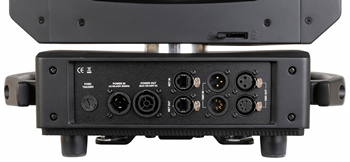

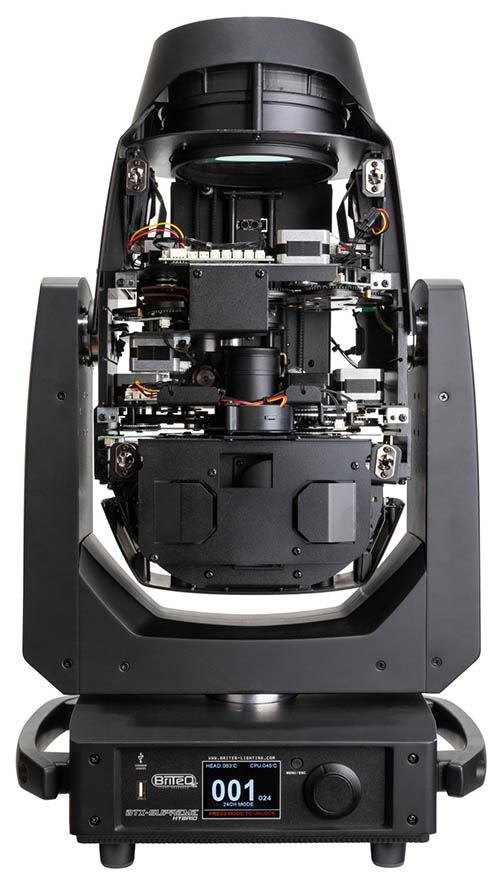

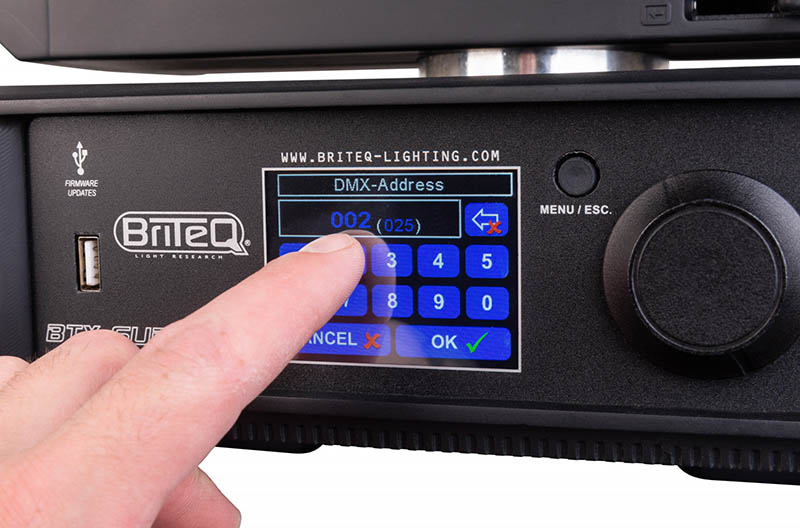

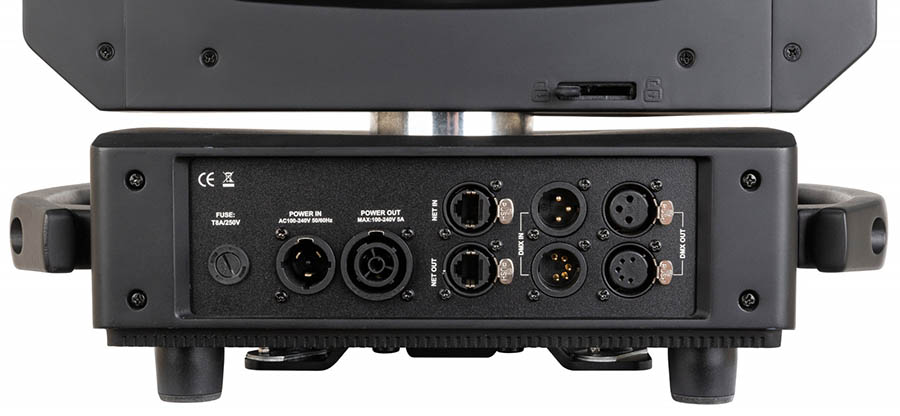

The Supreme Hybrid supports various protocols, including DMX512/RDM, Art-Net™, and sACN for seamless integration. Integrated wireless DMX module (W-DMX Sweden) for reliable wireless communication. Connectivity options include Neutrik® 3pin & 5pin XLR, RJ45 network in/outputs, and PowerCON TRUE1 in/outputs. Two DMX channel modes (standard: 24ch & Extended: 35ch) for maximum flexibility. 2.8" colour touch screen for easy menu navigation. It offers modular setup for easy servicing and cleaning. Firmware updates can be achieved via USB memory stick. Supplied with 2 omega brackets for fast installation.

In summary, the BTX-SUPREME HYBRID combines powerful lighting capabilities, a variety of effects, and convenient control options, making it a versatile and reliable choice for professional lighting setups.

Power Supply: 100-240Vac, 50/60Hz
Power Consumption: 800W
Lamp: HRI 471W SN
Beam Angle: 1.8-22 Degrees (Beam) or 3-42 Degrees (Spot)
DMX Channels: 24 or 35

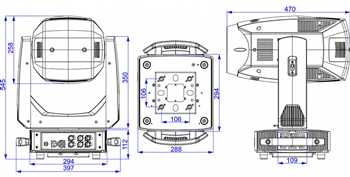

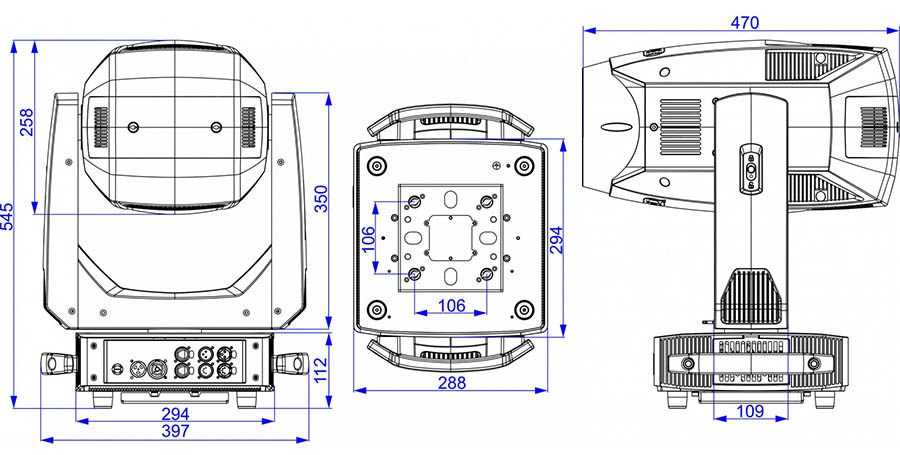

Dimensions: 545 x 397 x 470mm
Weight: 26.5Kg
