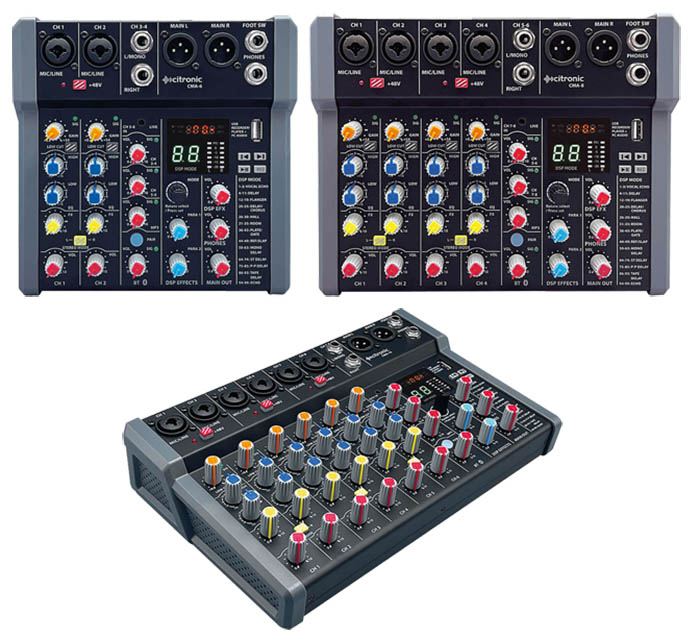

Compact Audio Mixer with DSP USB & Bluetooth Choice of 6 8 or 10 Channels

Code: CMAMIX
Availability: Please select an option
  • DSP Effect Section with 99 Adjustable Presets
  • USB mp3 Audio Player/Recorder
  • Bluetooth Receiver with Independent Volume Control
  • PC/Mac Audio Device and Aux Power via USB A Connection
  • Switchable +48V Phantom Power
  • Mono Mic Line Inputs can be Paired to Stereo
  • Balanced XLR/Jack Mono Inputs
  • Stereo Line Input Jacks and Stereo Minijack Input

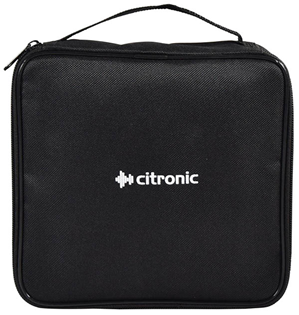

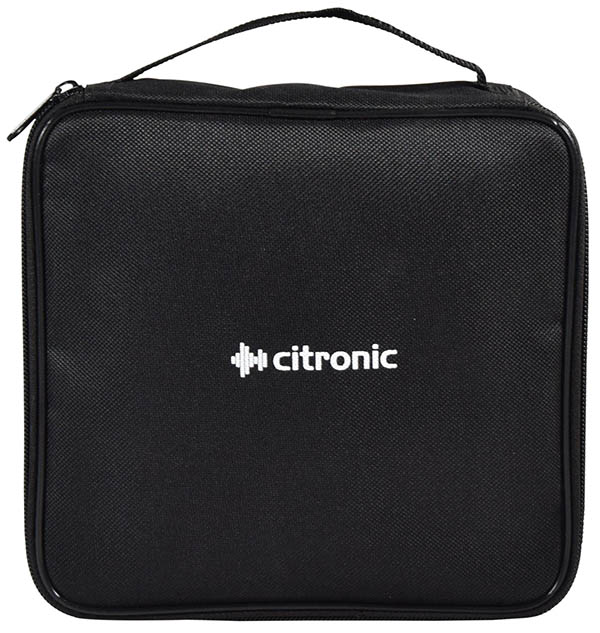

  • Supplied in a Padded Transit Bag
  • USB Type-C Power Supply
Please Select:
Channels
From £101.00 inc VAT

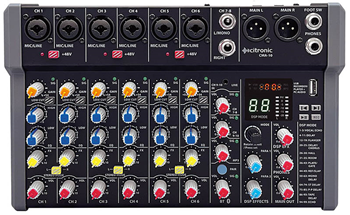

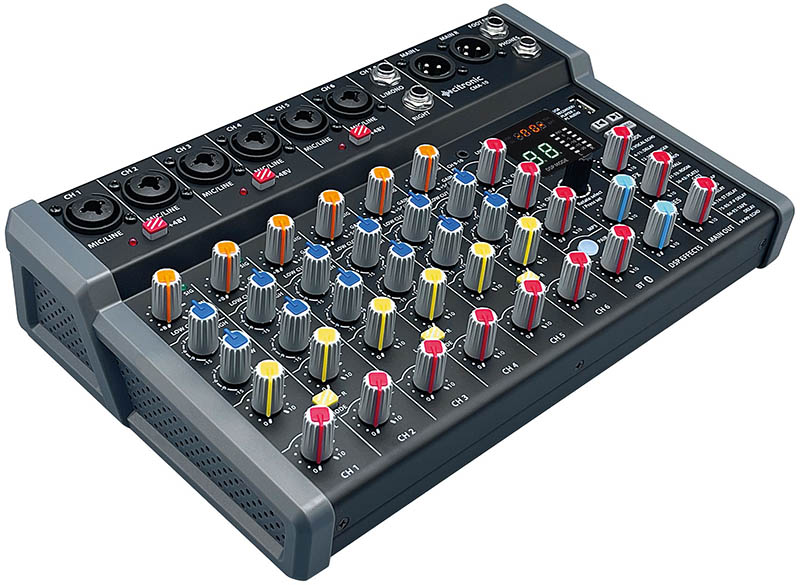

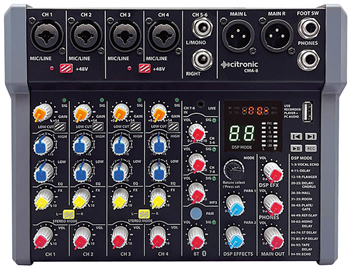

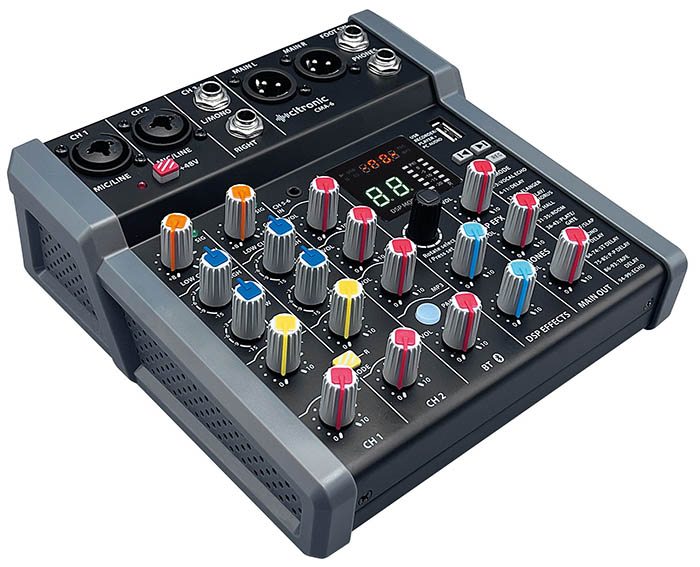

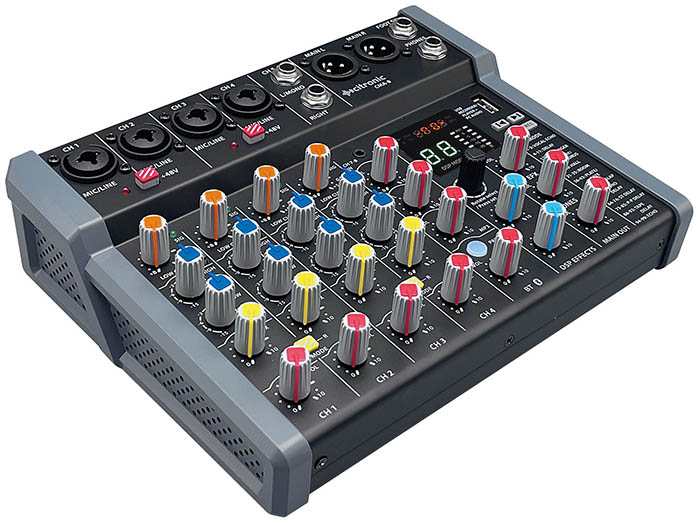

Compact format audio mixer with 2, 4 or 6 mono input channels, a stereo line input and a further minijack stereo input. Each mono mic/line channel has a combo XLR/jack input with +48V phantom power switchable in pairs for the XLR inputs. Each mic/line channel has a Gain control for matching the input source and a low-cut switch to filter out rumble or handling noise from microphones. Each mono channel also has High/Low EQ controls and an FX level control. Pairs of mono channels can be linked to act as a stereo left + right pair as required. The onboard foot-switchable DSP effects engine has 99 presets for delay, reverb and modulation effects, each of which can be adjusted using two parameter controls. An onboard Bluetooth receiver has an illuminated pairing button and independent volume control. The USB type-A port on the top panel is for playback of audio files or can be used to record the main outputs to a USB storage device or as an external audio device when connected to a laptop. Output is delivered to a pair of balanced XLR connectors to provide low noise operation for high quality studio or live performances.

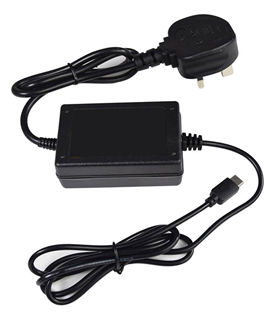

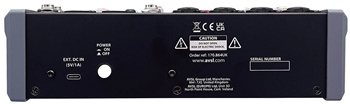

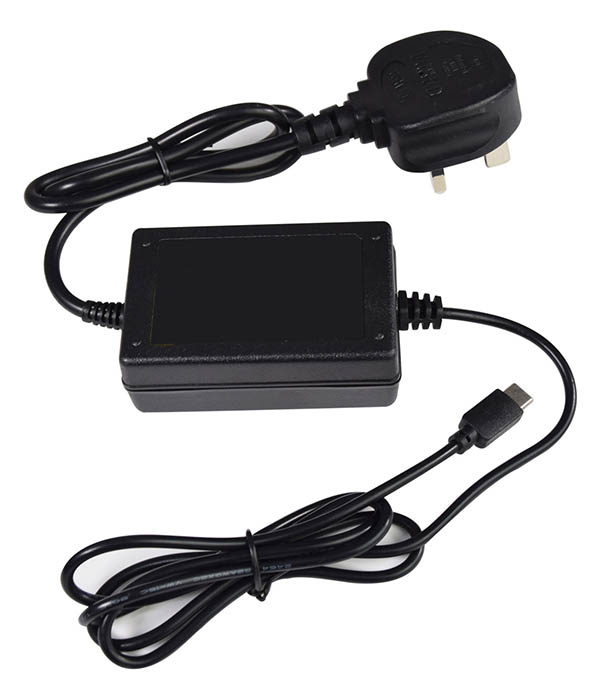

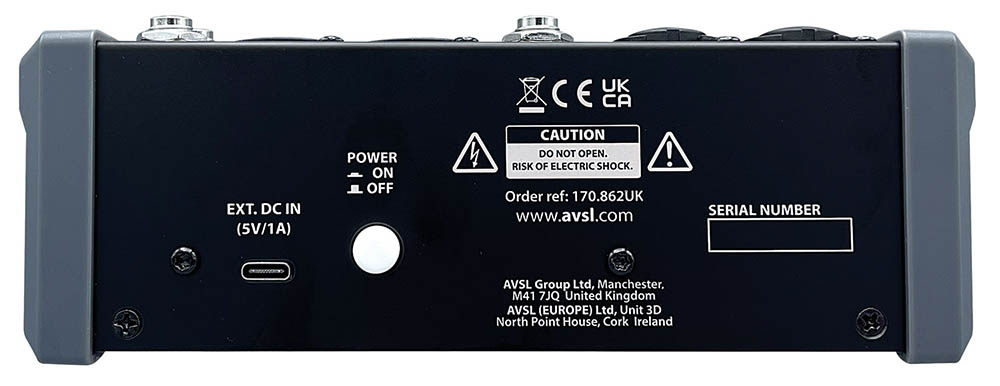

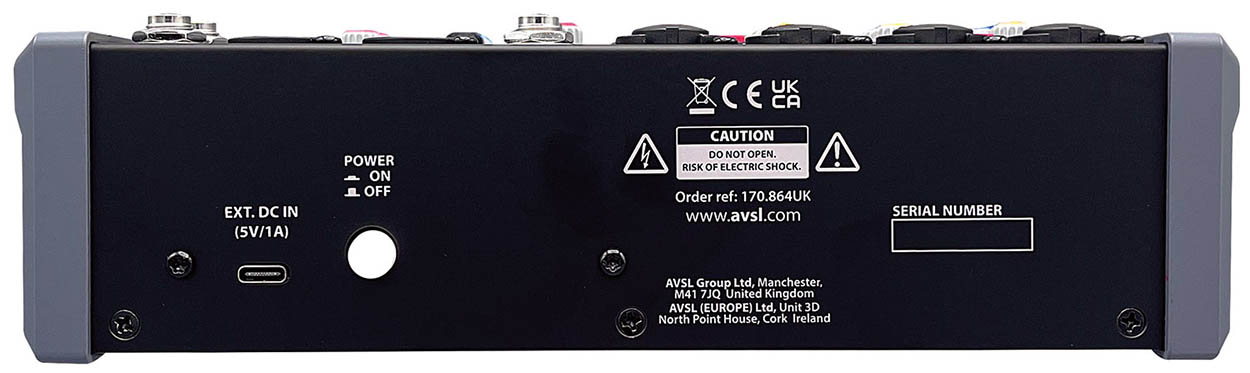

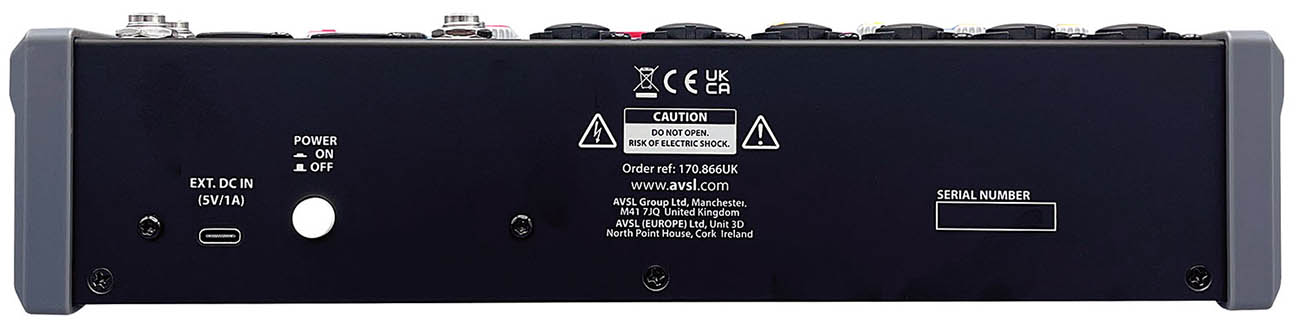

Power Supply: 5Vdc, 1A (USB-C Adaptor Included)
Power Consumption: 5W

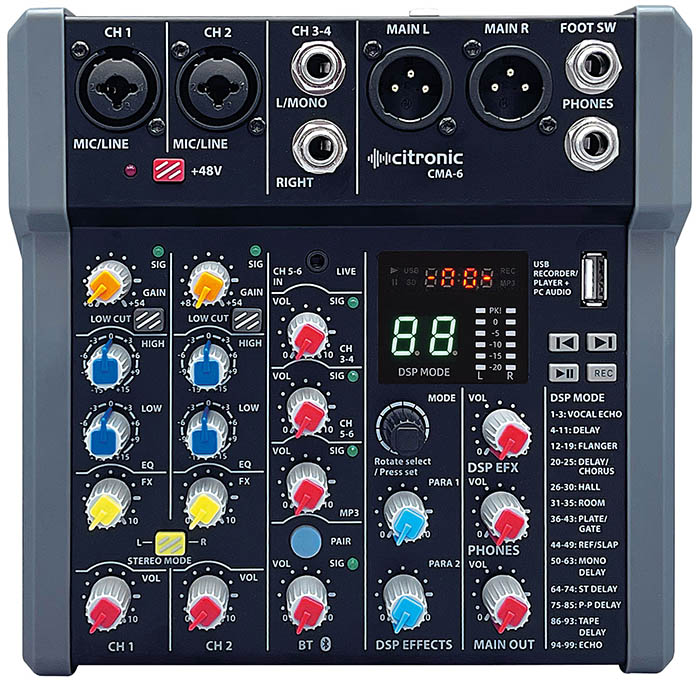

CMAMIX6
Mic Inputs: 2 XLR/Jack (Mono Mic/Line)
Line Inputs: 1 (Mono Jack)
3.5mm Jack Input: 1
USB Inputs: 1
Phantom Power: +48V (XLR Inputs Only)
Dimensions: 183 x 182 x 60mm
Weight: 875g

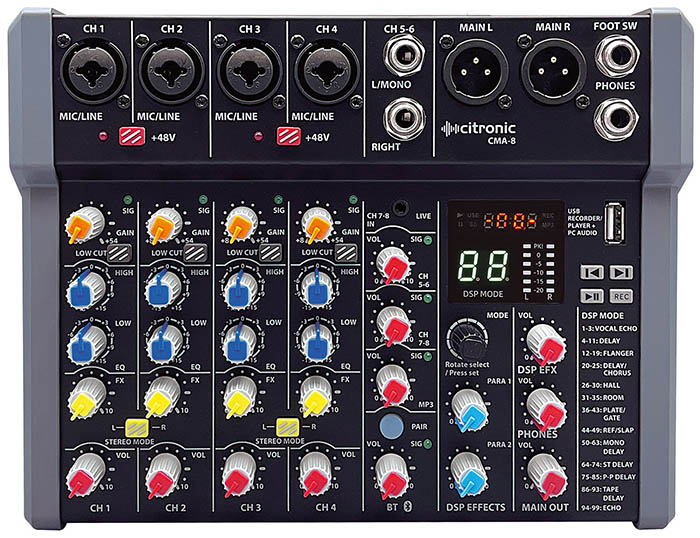

CMAMIX8
Mic Inputs: 4 XLR/Jack (Mono Mic/Line)
Line Inputs: 1 (Mono Jack)
3.5mm Jack Input: 1
USB Inputs: 1
Phantom Power: +48V (XLR Inputs Only)
Dimensions: 232 x 183 x 60mm
Weight: 1.12Kg

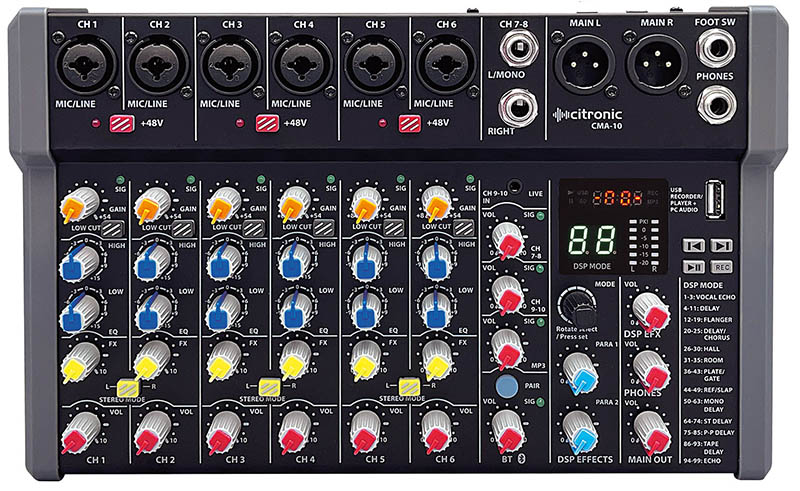

CMAMIX10
Mic Inputs: 6 XLR/Jack (Mono Mic/Line)
Line Inputs: 1 (Mono Jack)
3.5mm Jack Input: 1
USB Inputs: 1
Phantom Power: +48V (XLR Inputs Only)
Dimensions: 282 x 183 x 60mm
Weight: 1.39Kg
