Audio Mixer - 5 Channel Line + 1 Channel Mic

Code: ACA-012
Availability: 15 In Stock
  • 5 Channel Mixer
  • 3 Line Level Inputs
  • 1 Microphone Input via XLR
  • Phantom Power
  • Headphone Output
  • Ultra low Noise
  • Powered Via 12 Volt Power Supply
  • Individual Volume Controls
£33.95 inc VAT

A versatile mixer providing 3 line and 1 microphone inputs.

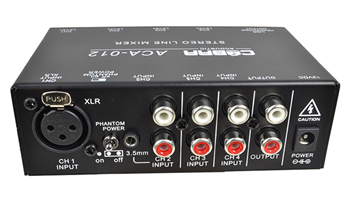

Input 1 is for a balanced microphone via an XLR socket with the ability to use a condenser microphone that needs phantom power, or any dynamic microphone. Input 2 is a line level input with RCA or 3.5mm connection options. Lines 3 and 4 are line level inputs with RCA connections. Each input has its own volume control and is output via unbalanced RCA stereo connectors. The mixer has a headphone output to deliver what is being played out of the output. This is a handy mixer that can be used on its own in a studio or can be added to a bigger mixer to give the user more mixer channels.

Line Input Connectors: 3x RCA, 1x 3.5m Stereo Jack
Microphone Input: Balanced XLR
Output Connectors: RCA
Power Supply: 12v DC 500mA
Dimensions: 123mm x 95 x 40mm
Weight: 0.379kg
