Paging Microphone with Call Station 4 Paging Zones

Code: CS4
Availability: Expected Soon
  • Compatible with RM244V & RM4460 Amplifiers
  • Assignable to Individual or All 4 Zones

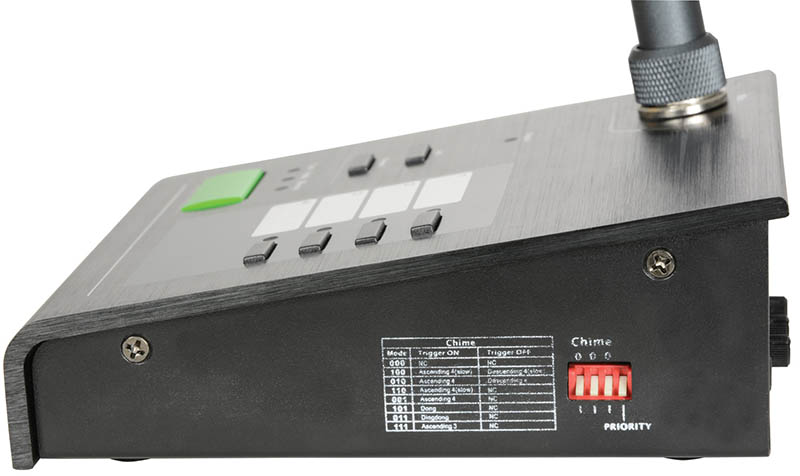

  • 8 Selectable Chime Settings
  • 3.5mm Aux Input
  • Up to 1km Remote Wiring over CAT5
  • Supplied with 1m RJ45 Patch Lead
£136.00 inc VAT

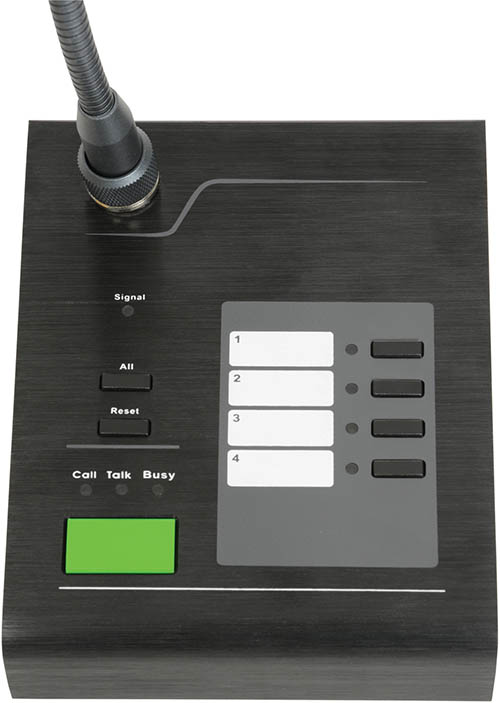

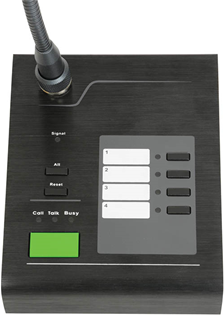

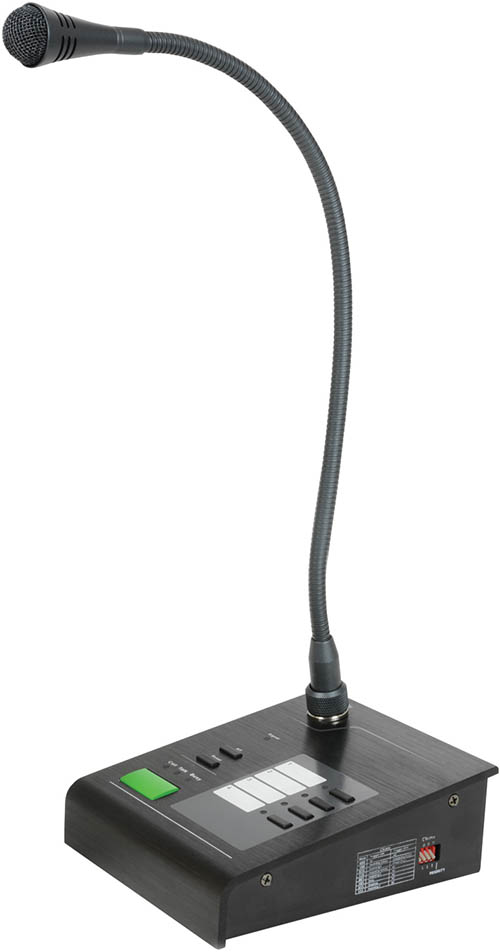

Paging microphone with call station base for use with the RM244V or RM4460 mixer-amps. Connected via RJ45 for both signal and power to simplify wiring. Zone assign buttons enable calling to one or all zones. Pressing the page button mutes all audio playback and plays one of 8 selectable chimes, opening the microphone to the selected zone(s). Pressing the reset button mutes the microphone and resumes background music playback to all zones. This system offers 4-zone paging without the additional cost of using a quad amplifier.

Power Supply: 24Vdc, 500mA from RJ45 or Optional Adaptor
Max Connection Length: 100m (CAT5 Cable) or 1km (With Optional 24Vdc Adaptor)
Polar Pattern: Cardioid
Frequency Response: 150Hz-22kHz (-3dB)

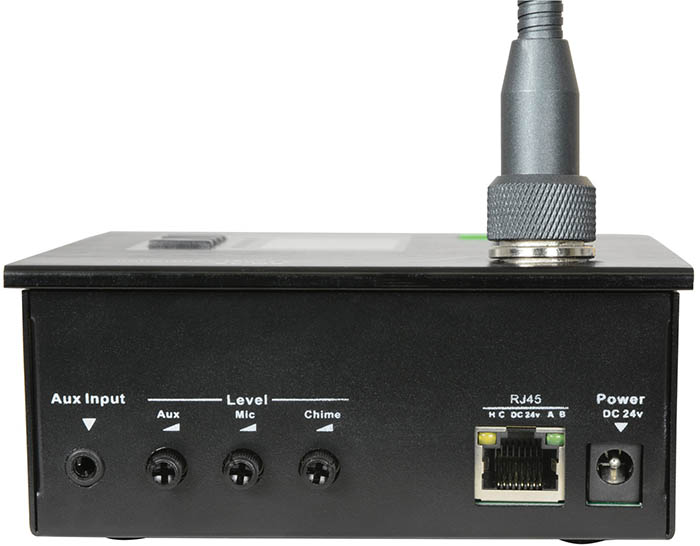

Connectors: RJ45 to Amplifier, 24Vdc Power Jack, 3.5mm Aux In
Dimensions: 460 x 140 x 115mm
Weight: 670g
