The FBT X3000 Active System is a professional audio setup designed for various applications, such as live sound reinforcement, fixed installations, and more. It consists of the following components:

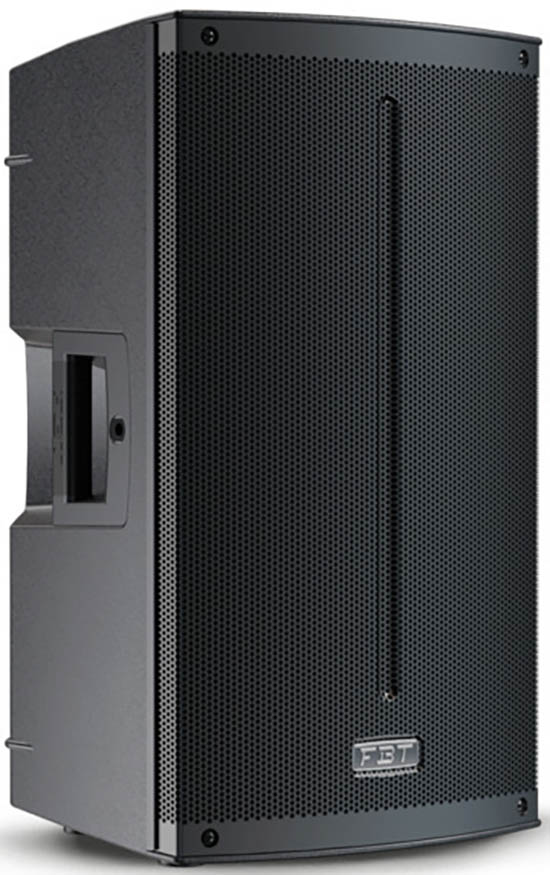

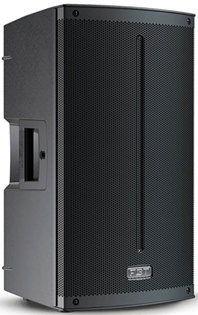

1. X-LITE 12A Top Boxes:
These are lightweight, durable, two-way speakers suitable for various sound applications.
Features:
Cabinet Material: Gas-injected moulded polypropylene
Cabinet Colour: Black
Design: Asymmetrical shape for floor monitoring
Woofer: 12" low-frequency driver
Tweeter: 1" HF compression driver with a 90°H x 60°V constant directivity horn
Frequency Range: 50Hz - 20kHz
Maximum SPL: 127dB
Amplification: Bi-amplified with an 800W RMS low-frequency amp and a 200W RMS high-frequency amp
Control Panel: XLR input and link out, 6.3mm jack stereo input with volume, stereo RCA input with volume, XLR output selector (stereo/mono), HP filter, mic/line, DSP preset selector, part/let LED indicator
Mounting: 4 x M10 rigging points for wall or ceiling mounting, 1.38" speaker stand socket
Protection: Front face steel grill

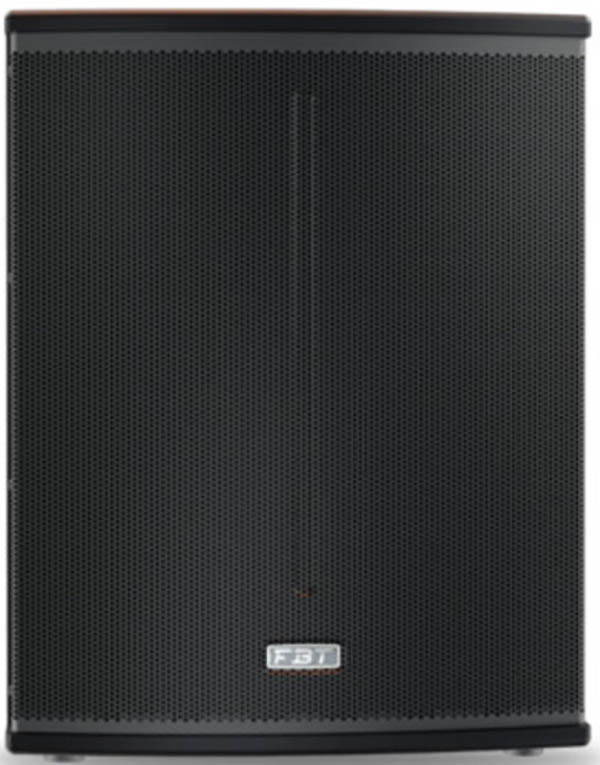

2. X-SUB 115SA Subwoofers:
These subwoofers are designed to complement the X-LITE series by providing extended low-frequency support.
Features:
Design: 1 x 15" bass-reflex subwoofer
Frequency Response: 42Hz to 120Hz @ -6dB
Maximum SPL: 135 dB peak
Amplification: 1200W Class D amplifier
DSP Processor: 4 presets (2 responses with 2 different cut-off frequencies)
Construction: 0.59" birch plywood with a scratch-resistant black paint finish
Stand Mount: M20 top-mounted stand adapter
Handles: Two FBT design aluminium handles
Optional Wheels: Four 100mm/3.93" transport wheels
Control Panel: Two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt LED indicators

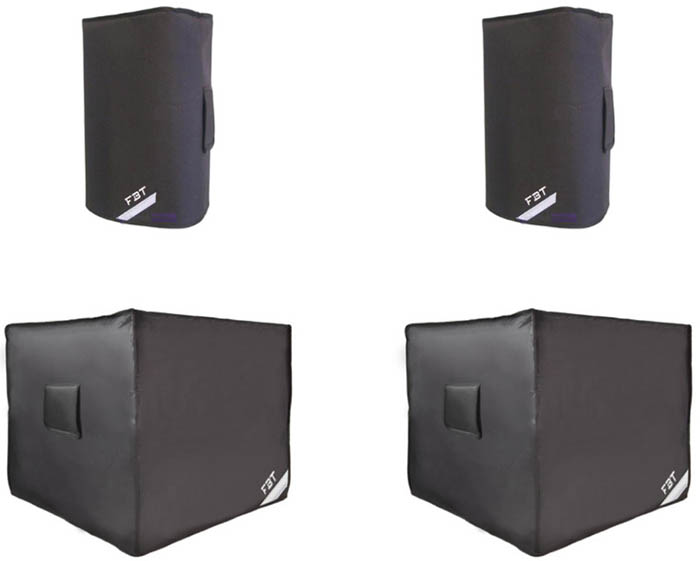

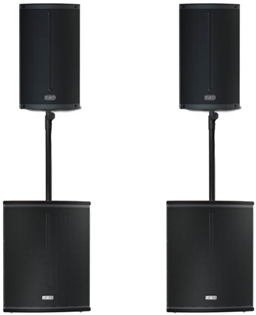

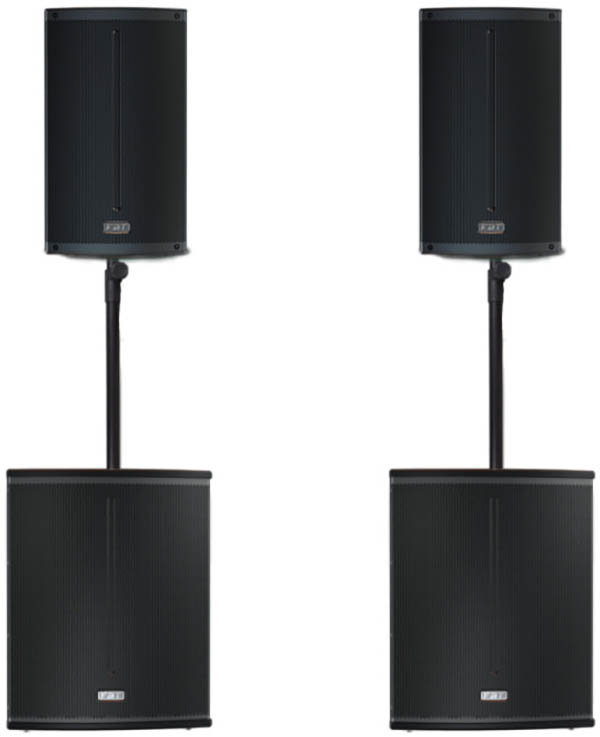

Additionally, the X3000 system includes telescoping poles for speaker mounting, a carry bag for the poles, and covers for the top speakers and subs. This makes it a comprehensive and convenient audio system suitable for a range of professional audio needs, including concerts, events, and installations.
