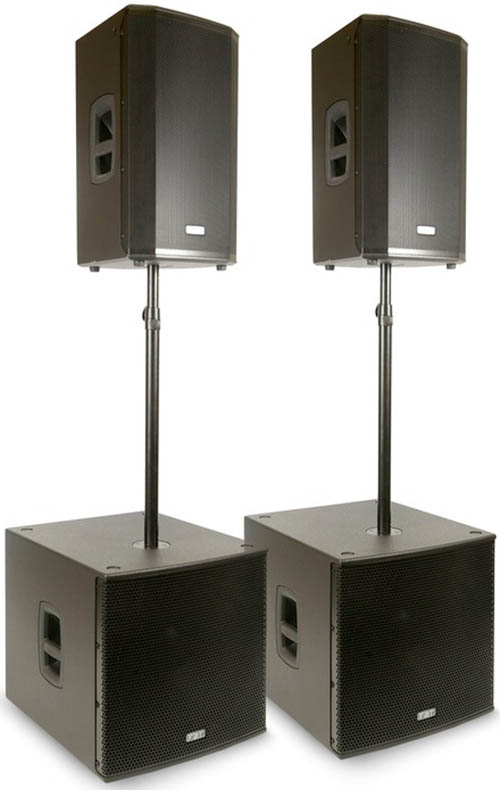

The VN 4000 is a powerful and versatile PA system designed for various applications, including conference work, ceremonies, speeches, DJ sets, and live music events. It consists of the following components:

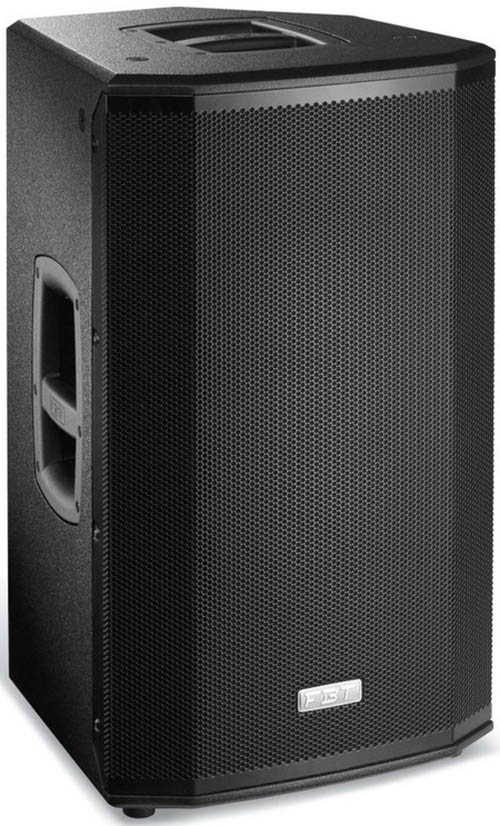

1. Ventis 112A Top Boxes:
These are active speakers with a 12" low-frequency woofer and a 1" B&C high-frequency compression driver in a vertical configuration.
The cabinets are made of 15mm birch ply with a scratch-resistant paint finish and feature a full-face grille.
They are lightweight at 20.6kg, making them easy to transport with an integrated handle.
M10 suspension points make them suitable for permanent installation, and there's a 35mm top-hat for mounting on sub poles or tripods.
The amplifier module provides 700W RMS for low-frequency and 200W RMS for high-frequency, with Class D for LF and Class H/AB for HF.
Input options include a single XLR/¼-inch jack combi socket that accepts both LINE or MIC level signals and a pair of RCA phono connections.
There are dedicated level controls for each input, allowing you to mix a microphone and background music without a separate mixer.
An XLR output socket is provided for daisy-chaining audio to another cabinet.
Built-in DSP with an LCD display and control dial allows for sound tuning, delay adjustments (0-10 meters), and a Hi-Pass filter for focusing on hi/mid frequencies when using a subwoofer.

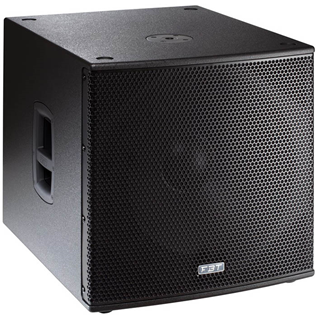

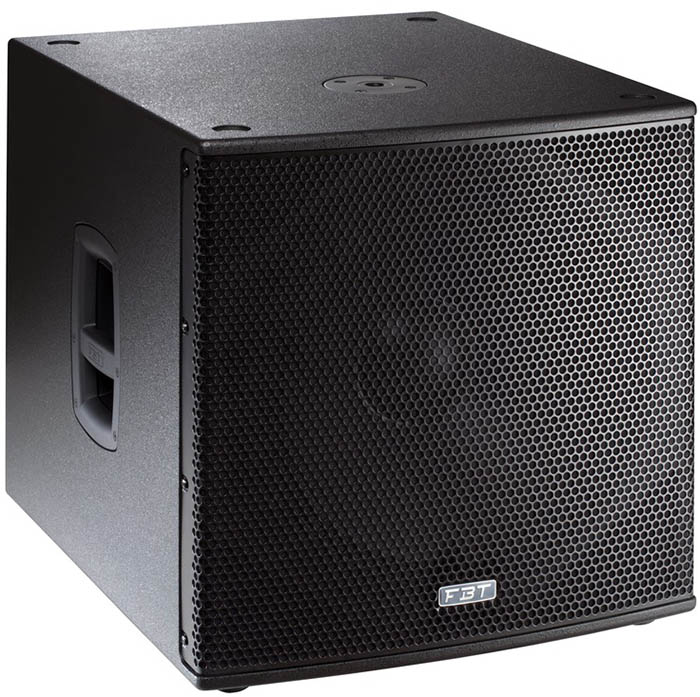

2. SUBline 118SA Subs:
These are subwoofers with an 18" woofer featuring a 3-inch voice coil, delivering high SPL (137 dB) in a compact design.
The amplifier module provides 1200W RMS and includes a built-in DSP with eight different presets, an 8-step delay control, and a Phase push button.
Two XLR input sockets are provided for stereo input, along with corresponding outputs and a push button for a variable High Pass filter.
The sub matches the Ventis 112A in terms of design, with a birch-ply cabinet, scratch-resistant paint finish, and full-face grille.
Ergonomic handles on the side make it easy to transport, despite its powerful performance.
Package Accessories:

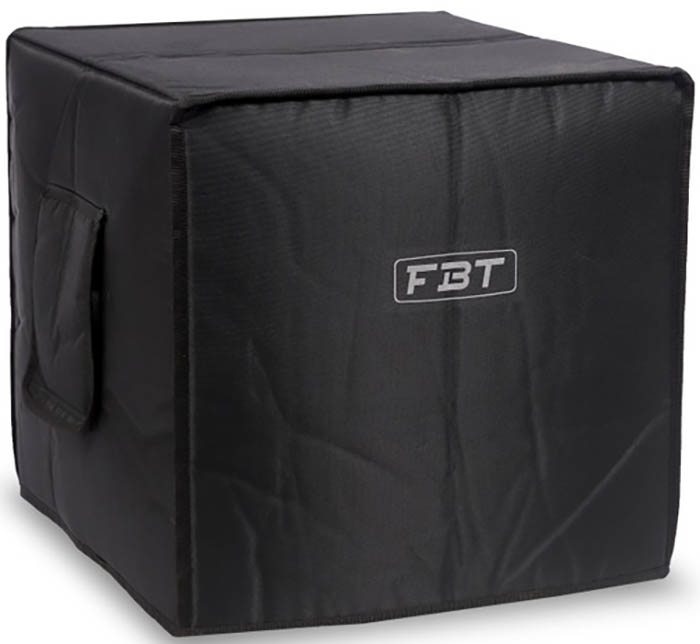

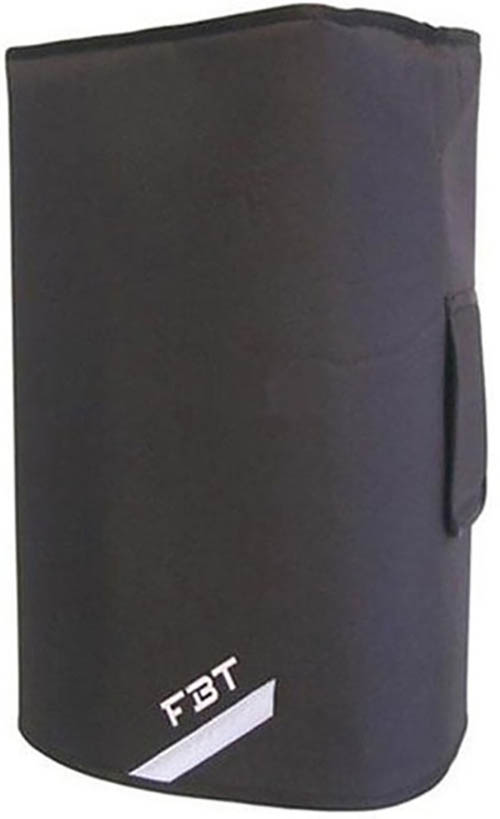

The VN 4000 package includes two telescopic poles for mounting the top boxes, a carry bag for the poles, and covers for both the top speakers and subs. The VN 4000 system offers flexibility and scalability, allowing it to be used as a full-range mobile PA system or broken down into smaller setups as needed. It's well-suited for a wide range of applications and provides powerful sound reinforcement with quality components and features.
