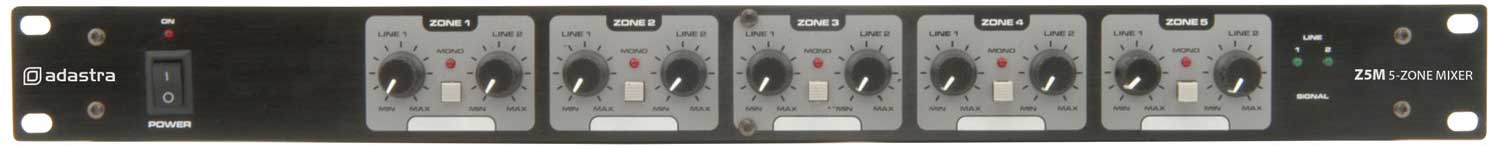

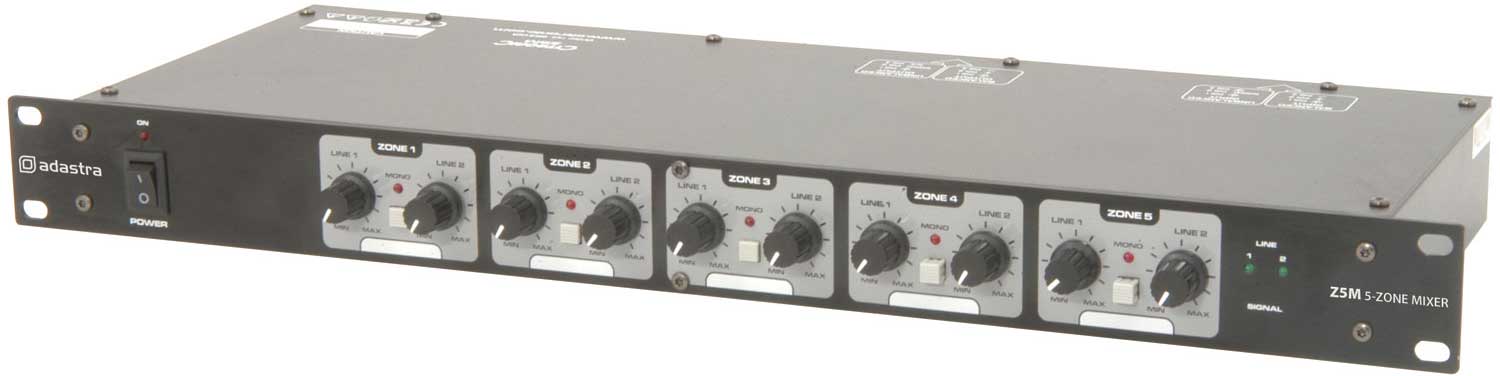

5 Stereo Zone Distribution Mixer - 2 Input 5 Outputs – Balanced In & Out

Code: ZMAD-5
Availability: 1 In Stock
  • Fully Balanced XLR Connections
  • 2 Inputs To 5 Zones
  • Mono Selectable For Each Zone
£99.95 inc VAT

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

Power supply:115/230Vac 50/60Hz (IEC)
Inputs:Line 1 L+R, Line 2 L+R, balanced XLRF

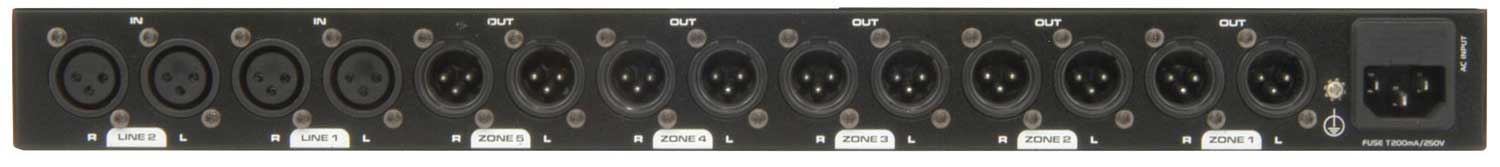

Outputs:Zone 1 to 5 L+R, balanced XLRM
Input impedance:40k Ohms
Output impedance:220 Ohms
Frequency response:20Hz - 25kHz, +0/-1dB
Signal to noise ratio:>100dB
THD:<0.005%
Dimensions:483 x 175 x 44mm
Weight:2.2kg
