5 Channel Audio Mixer with Media Player, Bluetooth & FM Tuner

Code: QMEDIAMIX52
Availability: In Stock
  • 2 Stereo Line Inputs, 2 Microphone Inputs
  • Bluetooth Receiver, USB and FM Tuner
  • Rear and Front Gain Controls for Line Inputs
  • Front Panel 3.5mm Stereo TRS Input
  • Adjustable Auto Talk-Over
  • MP3 Tag Readout on Large LCD Display
  • Two Stereo Main Outputs with Independent Level Control
  • Rear-Side Adjustable Maximum Level Control for each Output
  • Balanced TRS & Phoenix Output Connectors for Both Outputs
  • Emergency Mute and Emergency Message Connections
  • Headphone Section with Volume Control
  • 19" Rack Mountable
£215.00 inc VAT

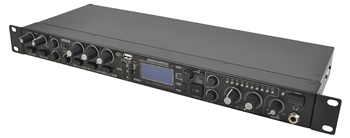

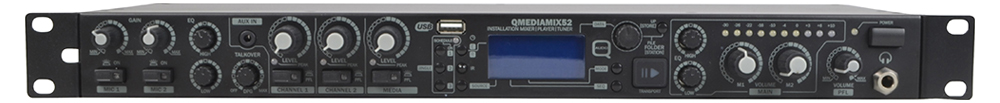

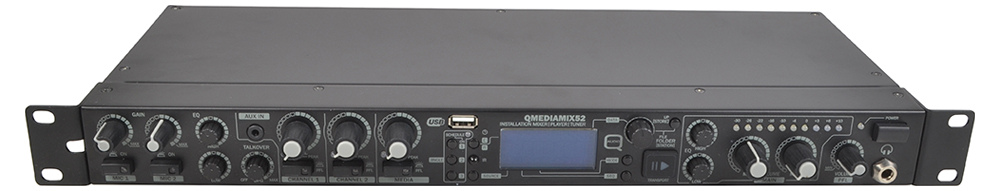

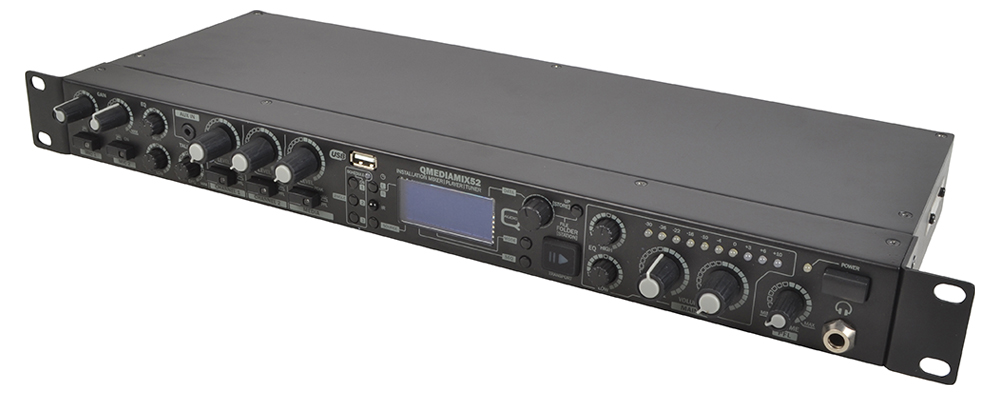

The Q Audio QMEDIAMIX52 media installation mixer is a versatile audio solution featuring three stereo inputs, two microphone inputs, and a multimedia player with Bluetooth, FM tuner, and USB connectivity.

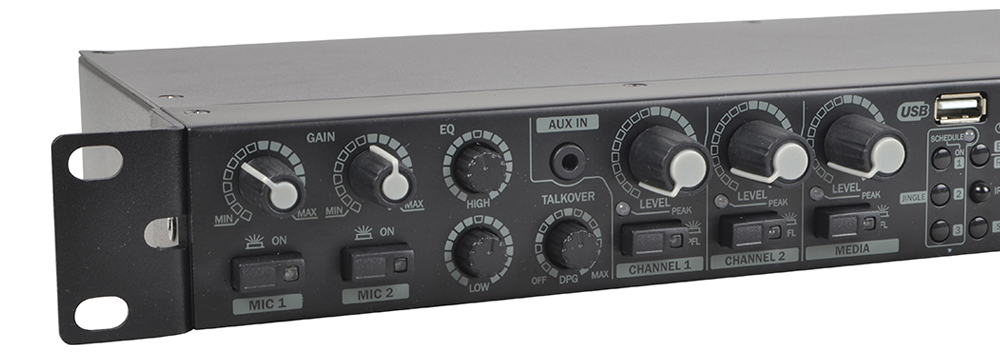

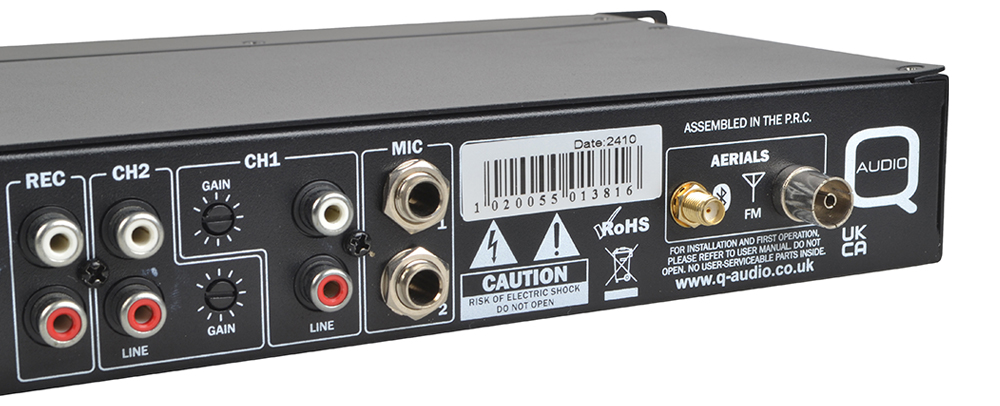

The mixer includes two stereo inputs with pre-set signal LEDs, rear-panel gain controls, and front-panel level adjustments. A 3.5mm front jack input provides easy connection for tablets and phones. Two microphone inputs, located on the rear with 1/4” jack connectors, feature a 2-band EQ for voice enhancement and "on-air" switches. The auto talk-over function smoothly lowers music volume when the microphone is in use.

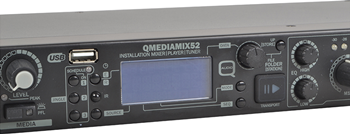

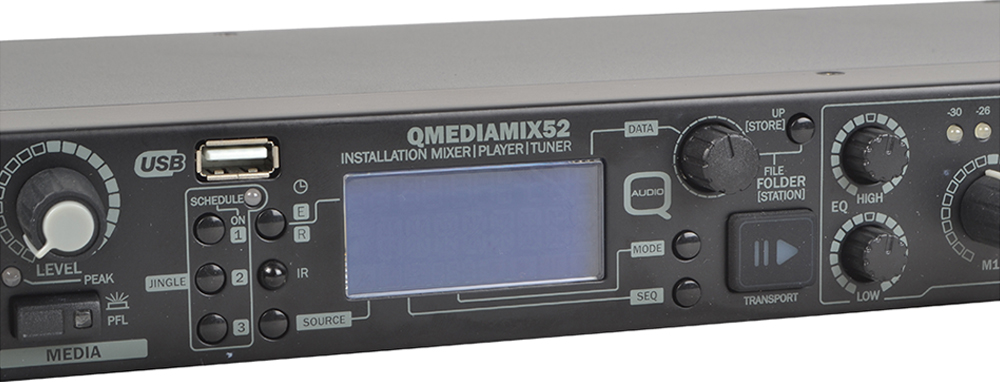

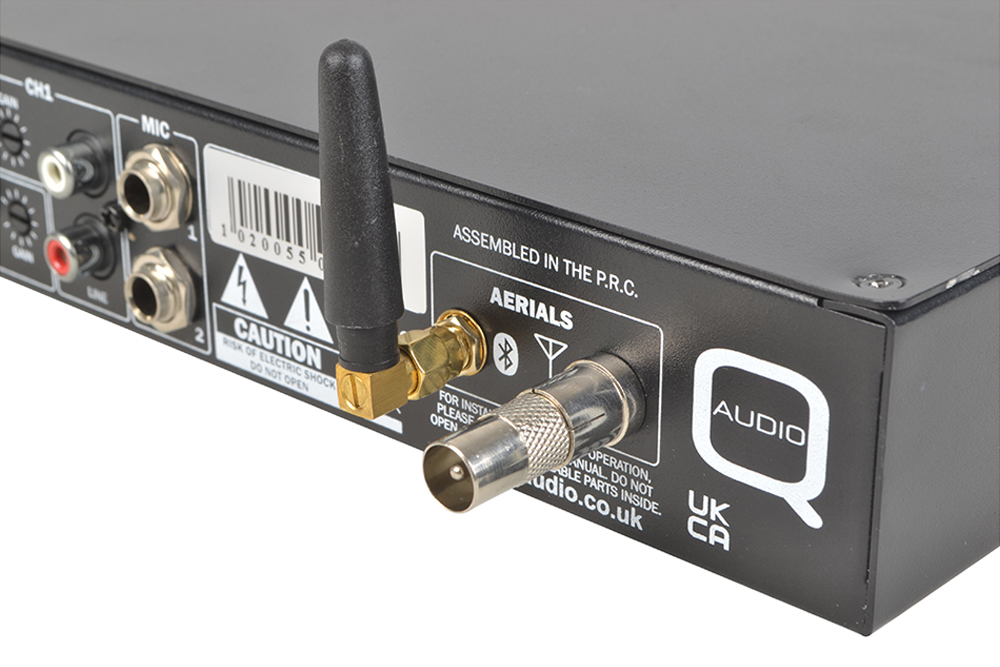

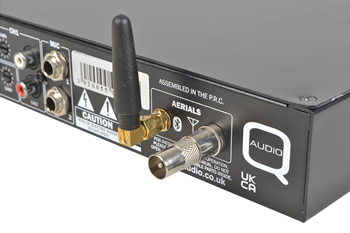

The built-in media player supports USB drives up to 16GB (about 2000 songs) and allows for easy file/folder browsing, MP3 tag display, sequential or random play modes, and elapsed/remaining time settings. The FM tuner includes RDS for station display. A handy jingle player is also included, capable of holding up to three jingles, which can be scheduled or triggered via front-panel buttons – ideal for announcements and advertising.

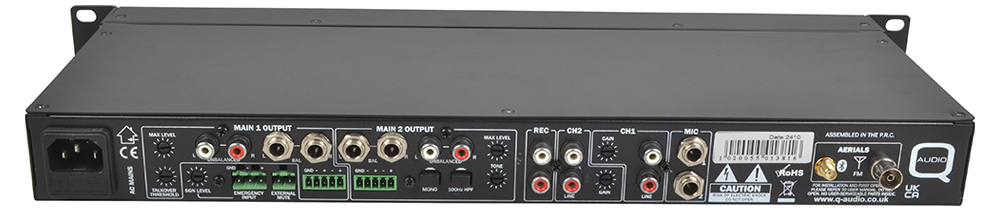

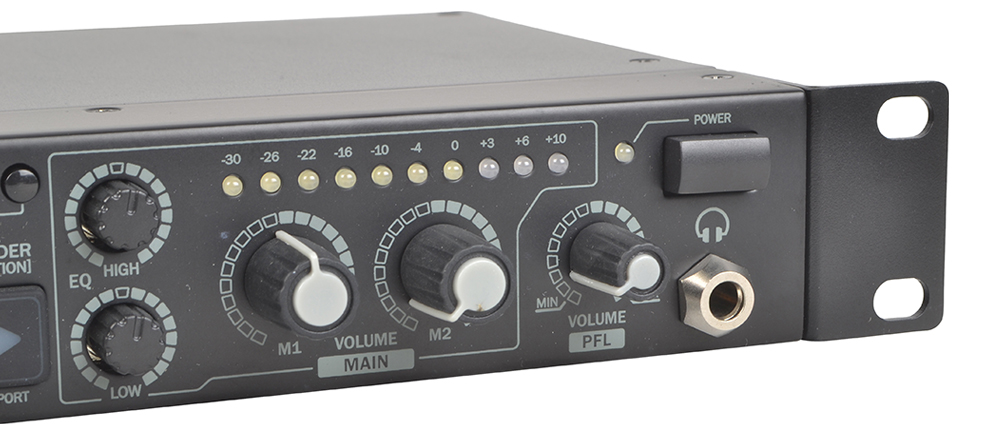

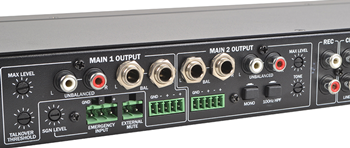

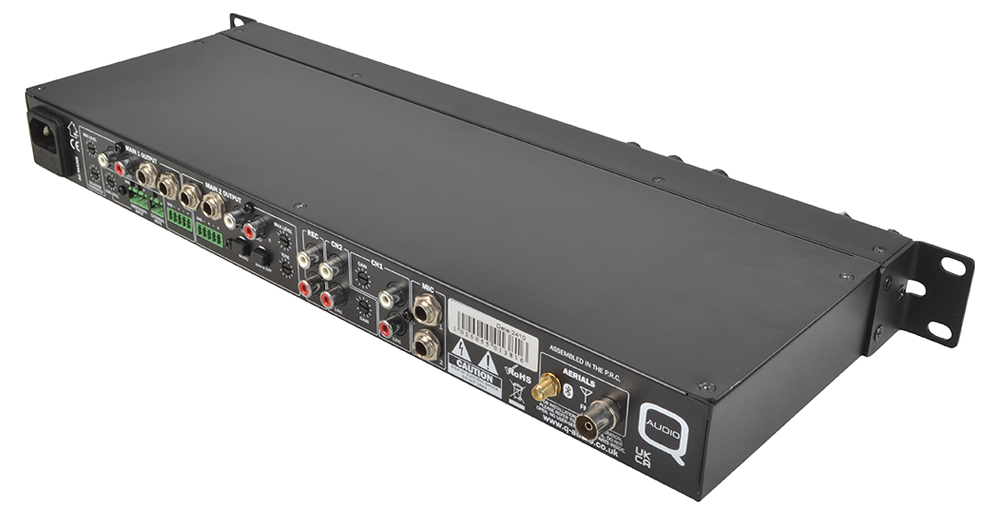

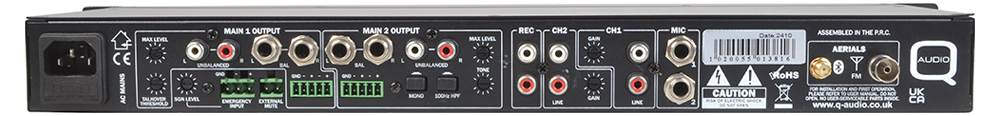

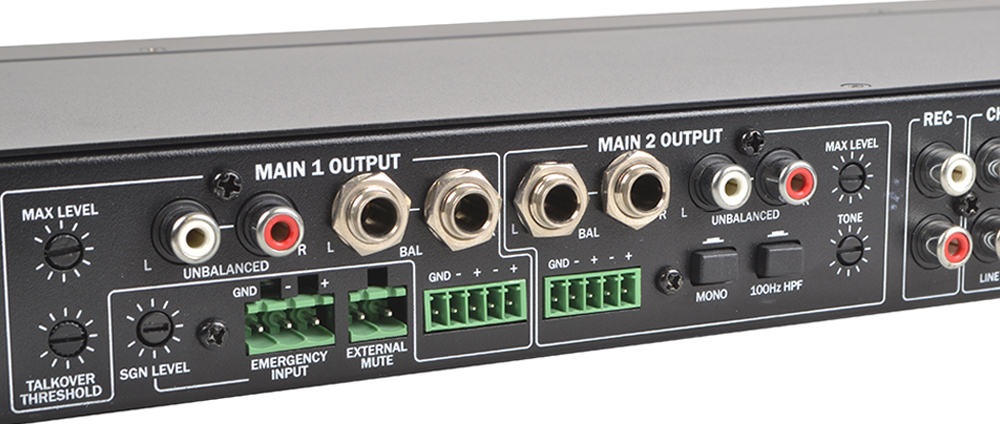

For outputs, the mixer offers two independent stereo outputs with individual level controls. Output 1 includes a front-side 2-band EQ and a 10-LED level meter, while Output 2 has rear-side tone control, a mono switch, and a 100Hz high-pass filter. Both outputs come with balanced TRS and Phoenix connectors as well as unbalanced RCA options.

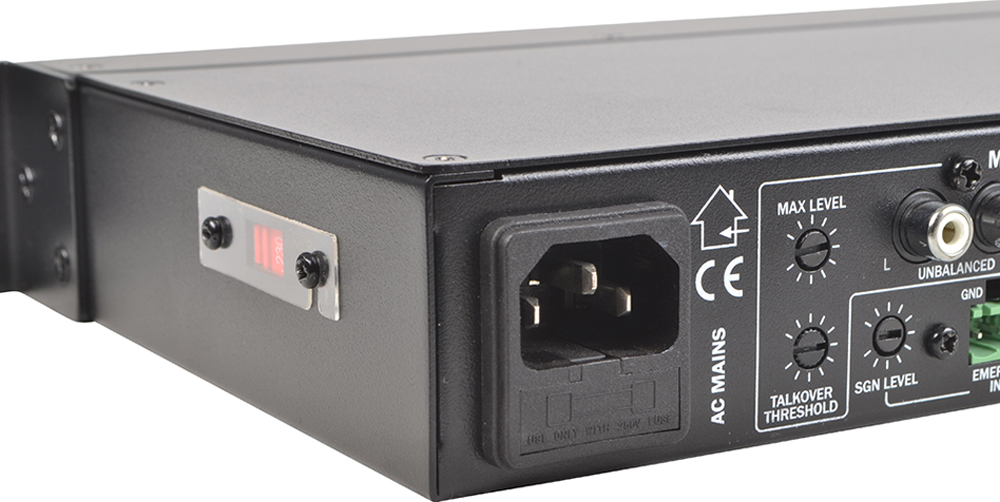

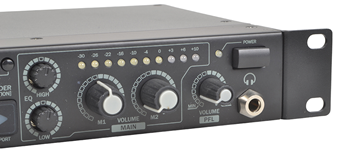

Additional features include an emergency input, which overrides the main output for emergency signals, and an output mute contact for external muting control. The headphone section offers volume adjustment and a 6.3mm stereo jack on the front.
A feature-rich mixer designed for installations in bars, restaurants, schools, and other venues.

Unit Size: 1U
Dimensions: 483 x 45 x 152mm
Weight: 2.2Kg
