4 Zone Mixer with Bluetooth & USB/SD/FM Media Player

Code: PMX34
Availability: Expected Soon
  • 2 Balanced Mic/Line Inputs on Euroblock Connectors
  • USB/SC/BT/Tuner Media Player/Recorder
  • Balanced Mono or Stereo Outputs on Euroblock Connectors
  • Phantom Power on Inputs 1 and 2
  • Gain and Tone Control on Channels 1 and 2
  • Gain Adjustment on all Inputs
  • Mute Contact on Outputs 1 to 4
  • Assignment of Zones 1 to 4 on each Input Channel

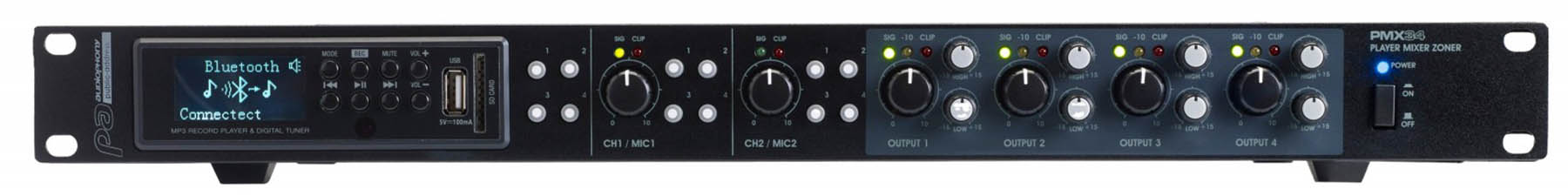

  • 2-Band Front Panel Equalization for Outputs 1 to 4
£447.00 inc VAT

A 4 zone installation mixer with a built in media player that is simple to use, yet packed with features!

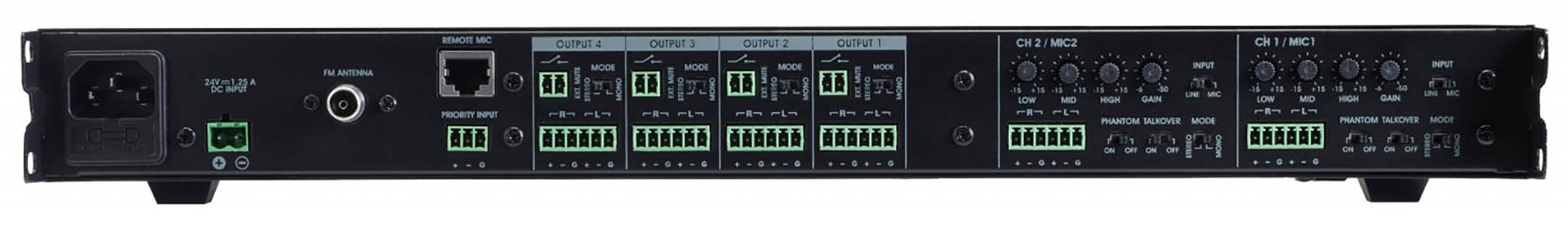

There are two line/mic inputs, these can be switched for stereo or mono, phantom power and talk over. All the inputs and outputs are on euro blocks, making the installation solder and connector free. The gain and EQ can all be set on the back panel, so the everyday users can not adjust the pre-sets. The media player can play music from a SD card, USB stick or be connected to any suitable Bluetooth device, offering great flexibility for music source. Each zone output can be switched for stereo or mono and muted via contacts independently. Each music source is routed to the zone outputs via switches, allowing the same music or different sources to be played in each zone. Each output has its own volume and 2 band EQ.

Overall this is an ideal choice for small to medium audio installations.

Unit Size: 1U
Dimensions: 482 x 44 x 320mm
Weight: 3.5Kg
