4 Zone Mixer with 2 Mic_Line Inputs & 2 Stereo Inputs

Code: MX44
Availability: Expected Soon
  • 2 Balanced Inputs Microphone/Line Mono or Stereo on Euroblock Connectors
  • 2 Mono or Stereo Line Inputs on Euroblock Connectors
  • 4 Balanced Mono or Stereo Outputs on Euroblock Connectors
  • Phantom Power on Inputs 1 and 2
  • Gain and Tone Control on Channels 1 and 2
  • Gain Adjustment on all Inputs
  • Mute Contact on Outputs 1 to 4
  • Assignment of Zones 1 to 4 on each Input Channel
  • 2 Band Front Panel Equalization for Outputs 1 to 4
£494.00 inc VAT
Add

A 4 zone installation mixer with 4 input channels offering straightforward use with a host of features!

Firstly, all inputs and outputs are on euro-blocks, making the installation solder and connector free. There are four line/mic inputs, two of these can be switched for stereo or mono, phantom power and talk over. All inputs have gain controls on the back panel, so the users can not adjust the pre-sets in error. Each zone output can be switched for stereo or mono and muted via connects independently. Each music source is routed to the zone outputs via switches, allowing the same music or different sources to be played in each zone. Each output has its own volume and 2 band EQ.

A great option for those looking for a wide range of features from a simple to use mixer.

Unit Size: 1U
Dimensions: 482 x 44 x 320mm
Weight: 3.5Kg

  • 4 Zone Mixer with 2 Mic_Line Inputs
  • 4 Zone Mixer with 2 Mic_Line Inputs
Click to Enlarge

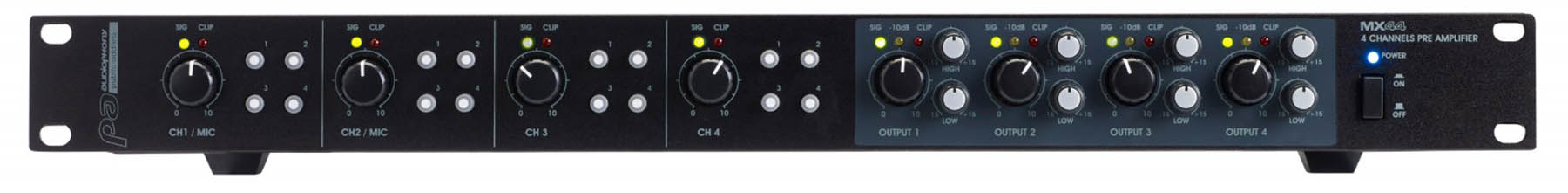

4 Zone Mixer with 2 Mic_Line Inputs

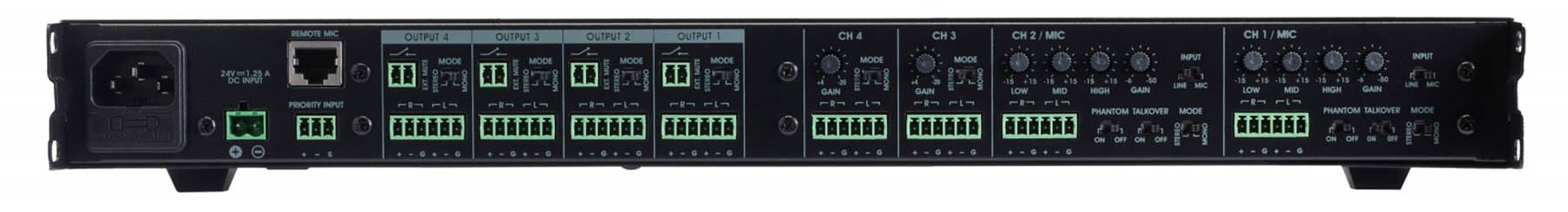

4 Zone Mixer with 2 Mic_Line Inputs
