3 Zone Installation Mixer with 5 Stereo Inputs + 2 Mic Inputs

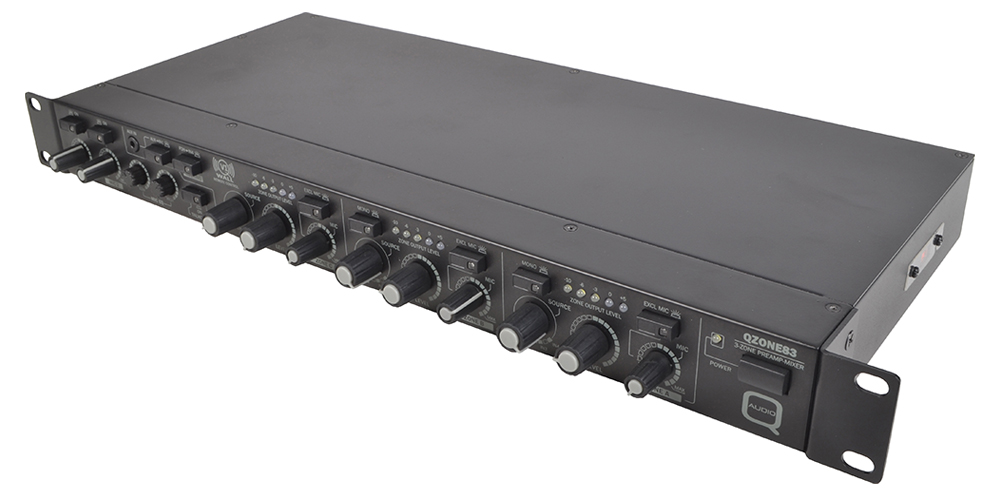

The Q Audio QZONE83 is a highly versatile 3-zone mixer, designed for installations in bars, restaurants, gyms, schools, and similar environments. This compact 1U, 19” rack-mountable mixer provides a robust solution for professional audio setups, ensuring seamless integration and high-quality sound.

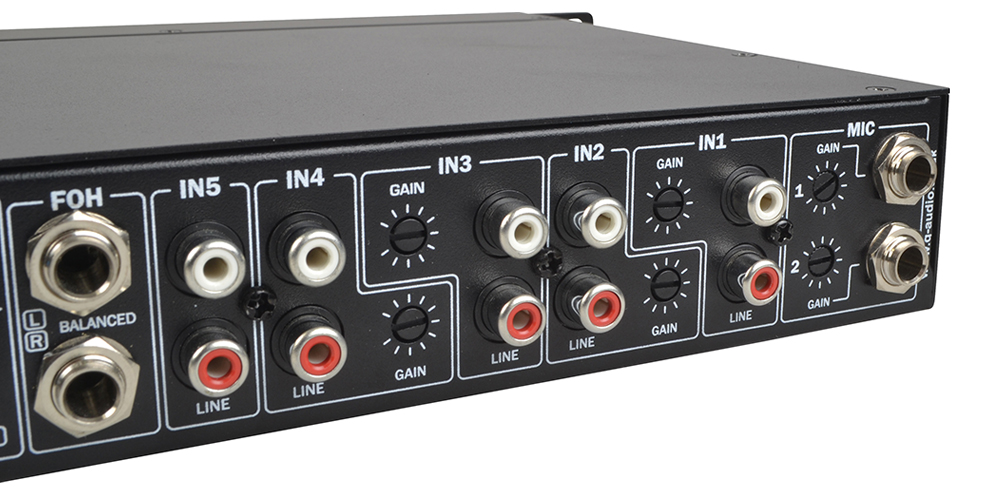

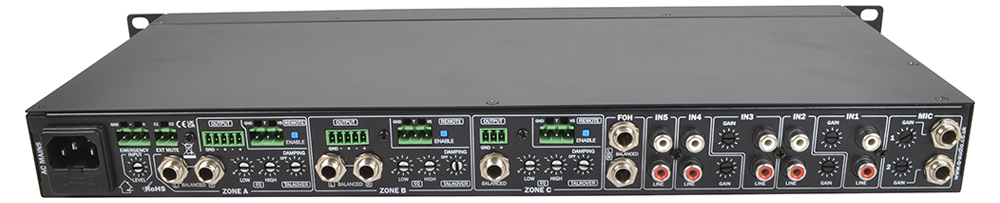

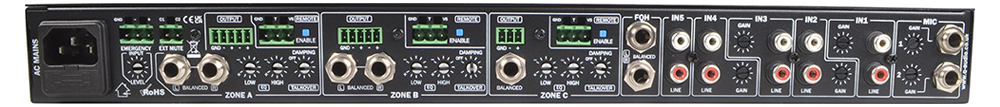

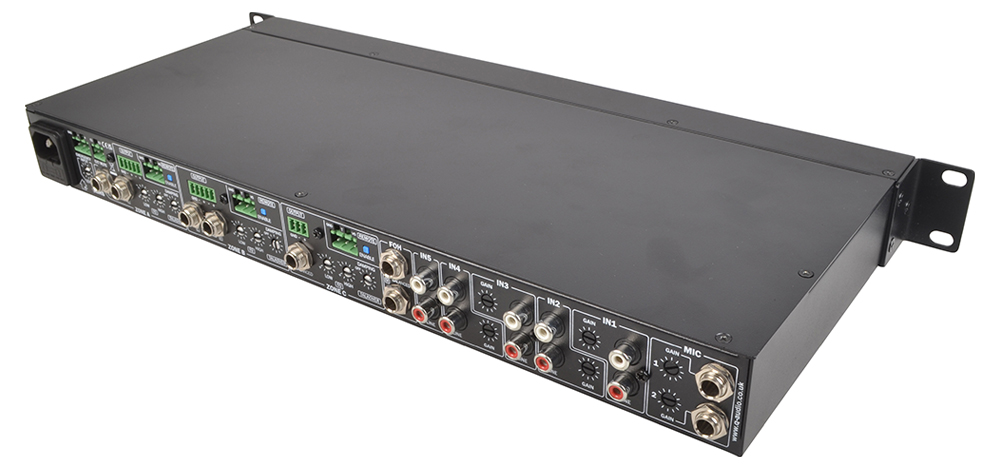

The QZONE83 offers five stereo inputs; four of these have rear-panel gain controls and can be routed to output zones A, B, or C. The fifth input is dedicated to Zone C, delivering a focused audio output. Additionally, the mixer includes a balanced rear-panel stereo FOH input and a convenient front 3.5mm stereo jack input, which can replace inputs 1 and 4, and be routed to any zone.
The unit features two microphone inputs with rear 1/4” TRS connectors and gain controls, and includes phantom power for condenser microphones (activated via an internal jumper). A voice-optimised 2-band EQ and "on-air" switches provide customisation for microphone inputs. The automatic talk-over function reduces music levels during microphone use, with adjustable damping levels per zone.

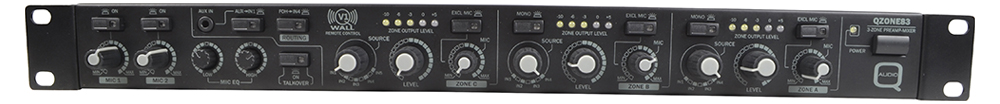

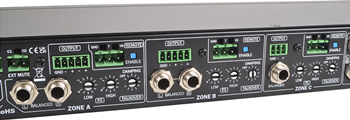

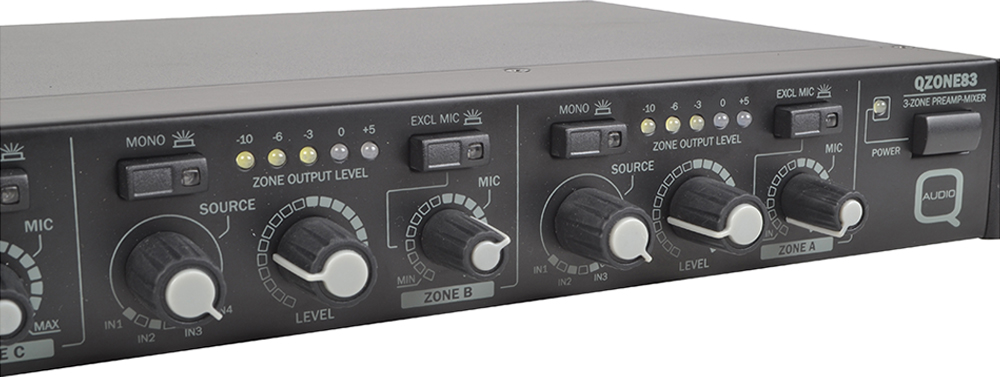

The QZONE83 supports two stereo output zones and one mono output zone, each monitored by a 5-LED level meter. Each zone includes an adjustable 2-band EQ on the rear panel for precise audio tuning. Volume control can be managed via the front-panel knobs or an optional remote control potentiometer, such as the QWALL V1 control panel (sold separately). Balanced TRS and Phoenix output connectors ensure reliable connections across zones.

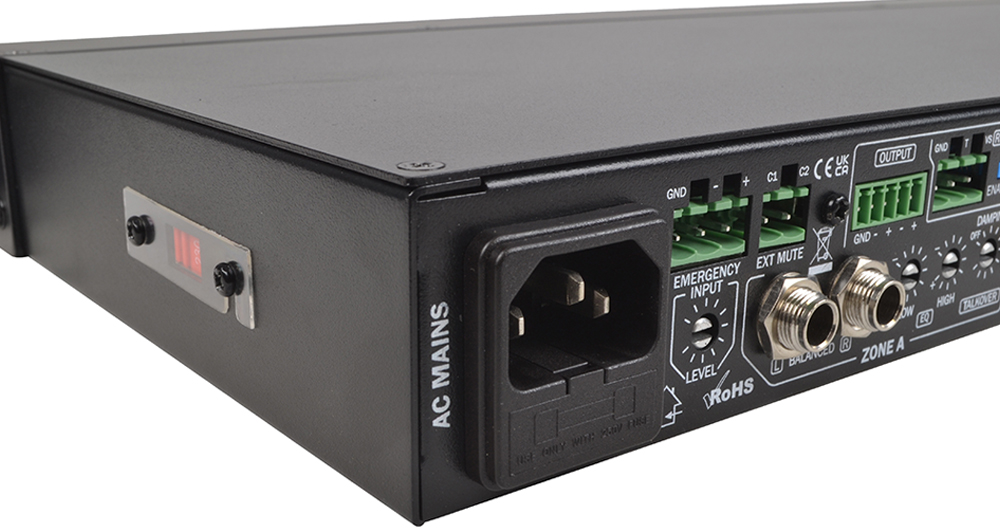

For emergency situations, the mixer features an emergency input that overrides the master output to broadcast an emergency signal. An output mute contact also allows for external muting, providing complete control over the audio environment.
