2 Zone Installation Mixer with 4 Dual Stereo Channels + 2 Mic Inputs

Code: QZONE102
Availability: In Stock
  • 2 Zone Installation Mixer
  • 4 Line Inputs RCA and 2 Mic Inputs
  • 2U 19" Rack Mountable
  • Tone Controls
  • Emergency Input & Output Mute
  • Adjustable Auto Talk-Over for Automatic Music Level Reduction
  • Front Panel 3.5mm Stereo Jack Input
  • Balanced XLR and Phoenix Output Connectors
  • 100Hz High Pass Filter for Background Speakers
  • Phantom Power
£239.00 inc VAT

The Q Audio QZONE102 is a purpose-built mixer, ideal for small installations in venues such as bars, restaurants, and gyms. It is especially effective in setups where two zones require either distinct music sources or the same audio at different volume levels.

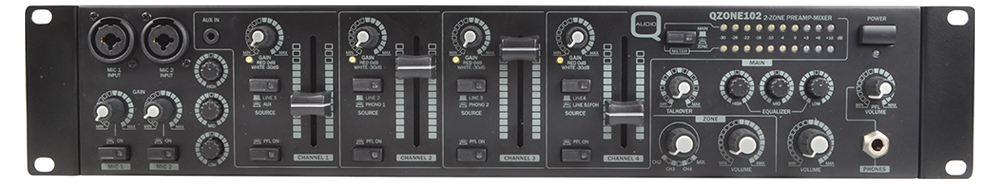

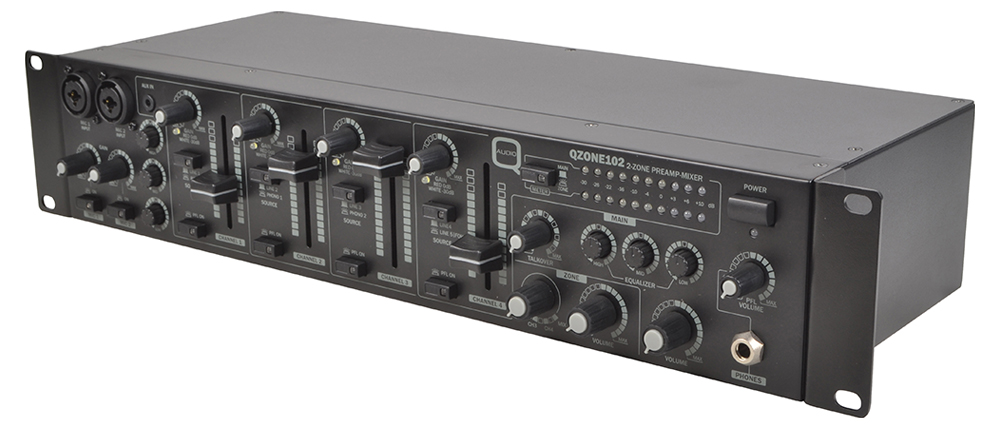

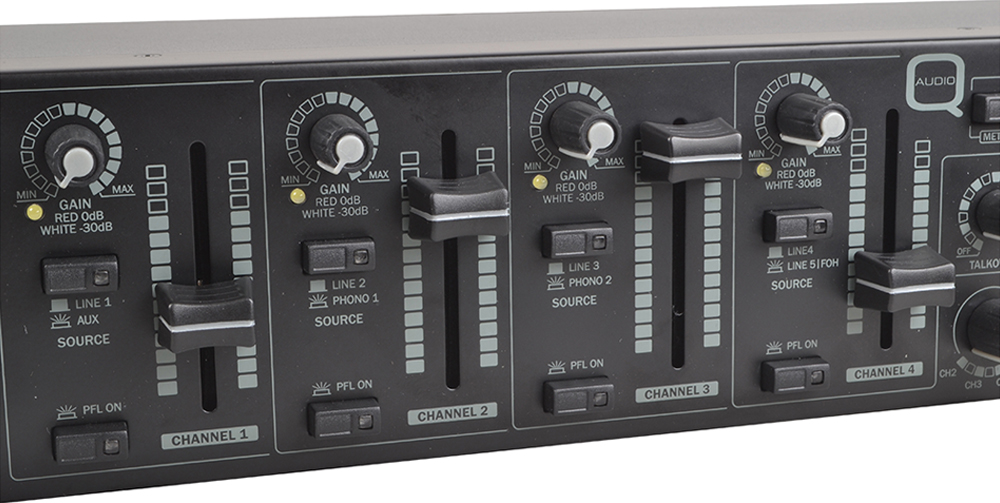

This mixer offers four main input channels, compatible with both line and phono sources. Channel 1 includes a front-panel 3.5mm auxiliary jack for convenient connection to devices like iPods or smartphones. Channel 4 features a Front-of-House (FOH) input, allowing external sound sources, such as a DJ or band, to connect via balanced stereo jacks—an invaluable option for integrating live performances with background music.

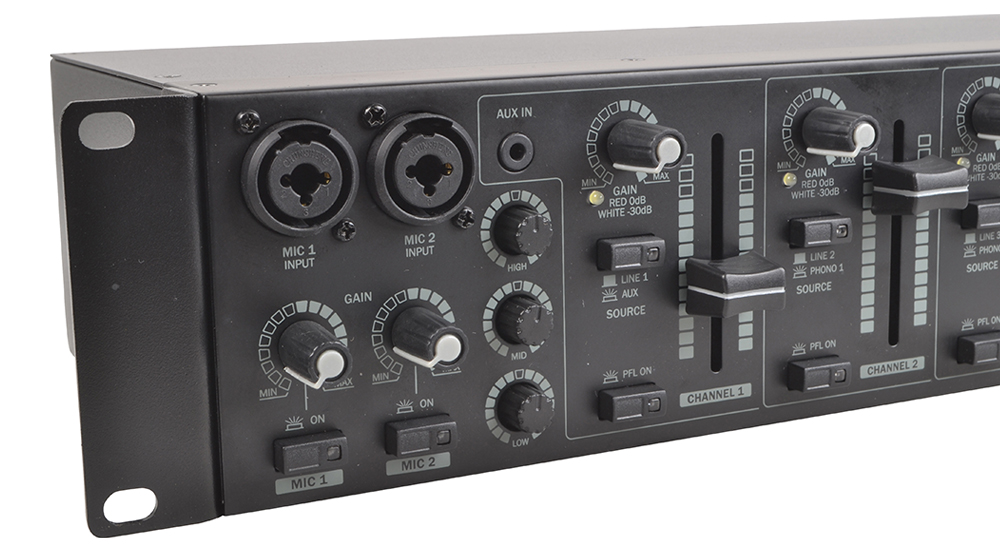

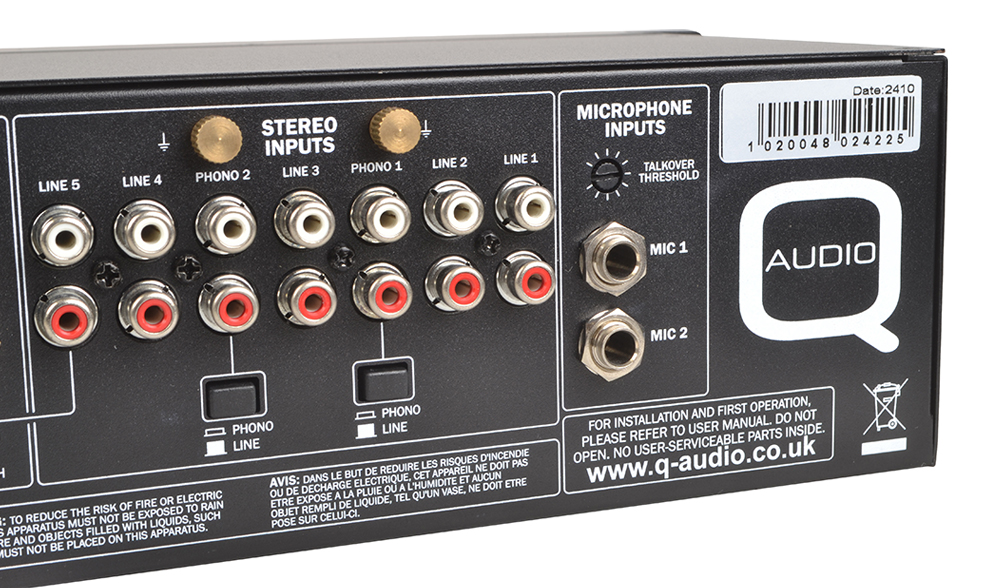

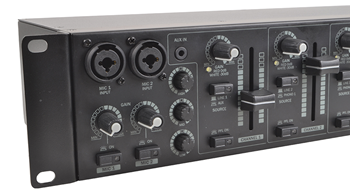

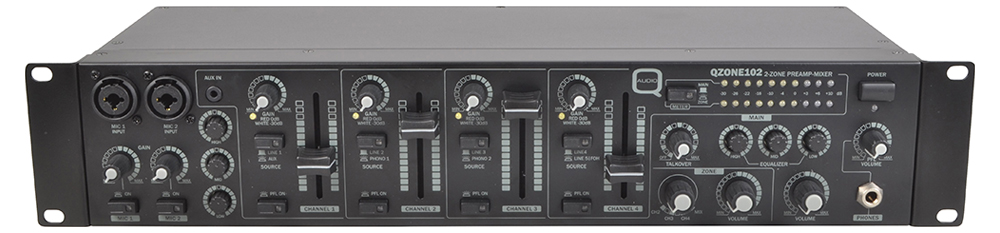

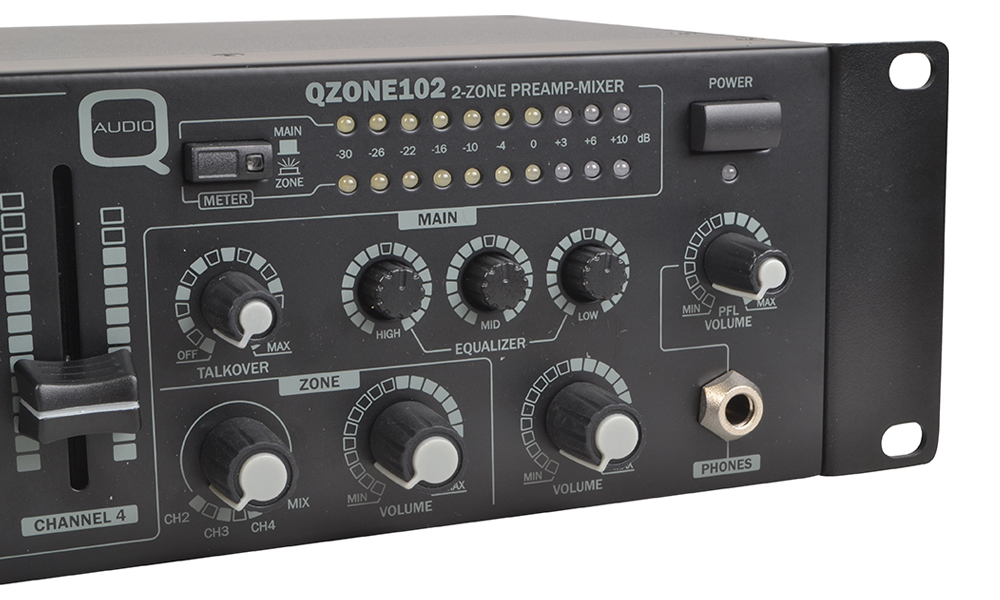

The front panel also provides two microphone inputs, with the choice of XLR or jack connectors, paralleled by two additional mic inputs on the rear. Each mic input includes bass, mid, and treble controls and can be activated or muted as needed. An automatic talk-over function reduces music volume when microphone input is detected.

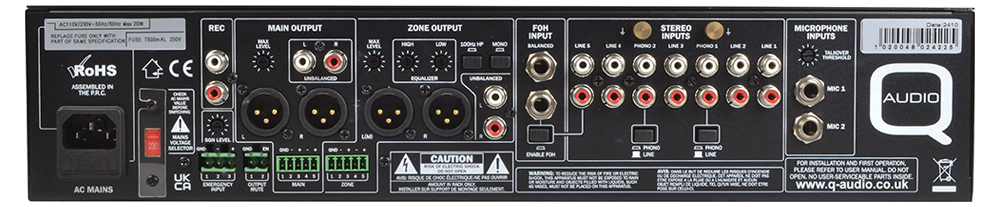

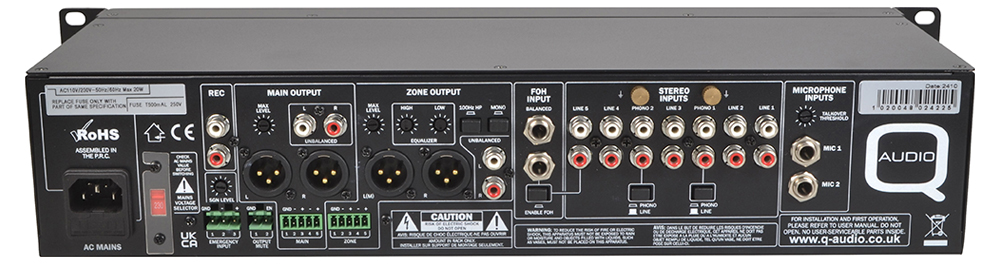

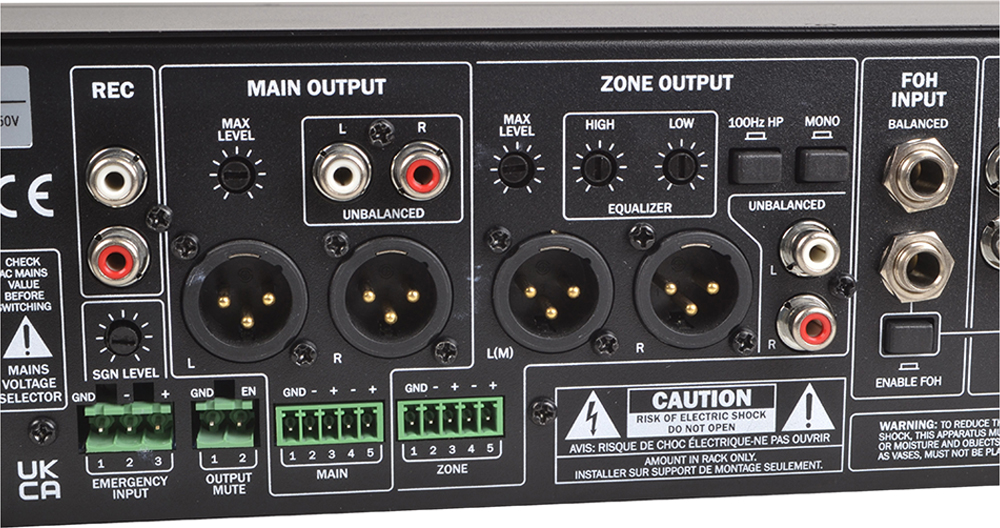

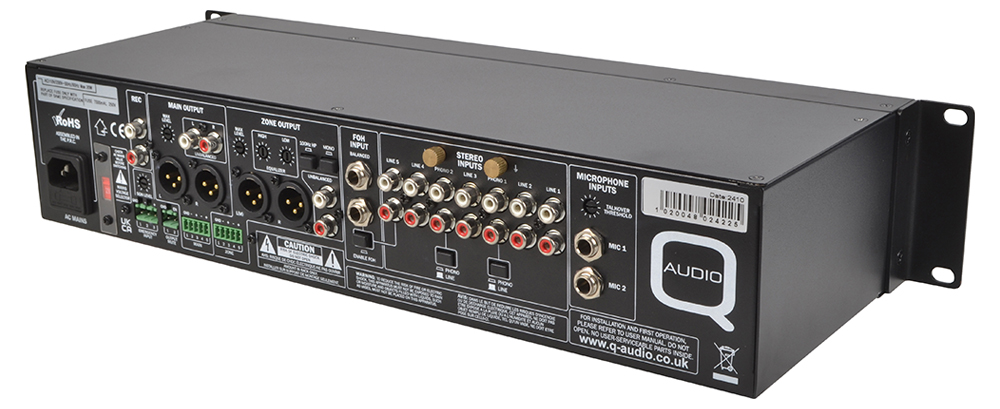

Rear-panel connections enable balanced and unbalanced output to amplifiers via XLR or RCA. Zone outputs can be configured as mono or stereo, balanced or unbalanced, and include a 100Hz cut to reduce bass frequencies—an ideal feature for background music played through smaller speakers. A two-way tone control and volume adjustment on the rear panel allow precise setup prior to installation. The main output also supports balanced or unbalanced output and has its own rear-panel volume control.

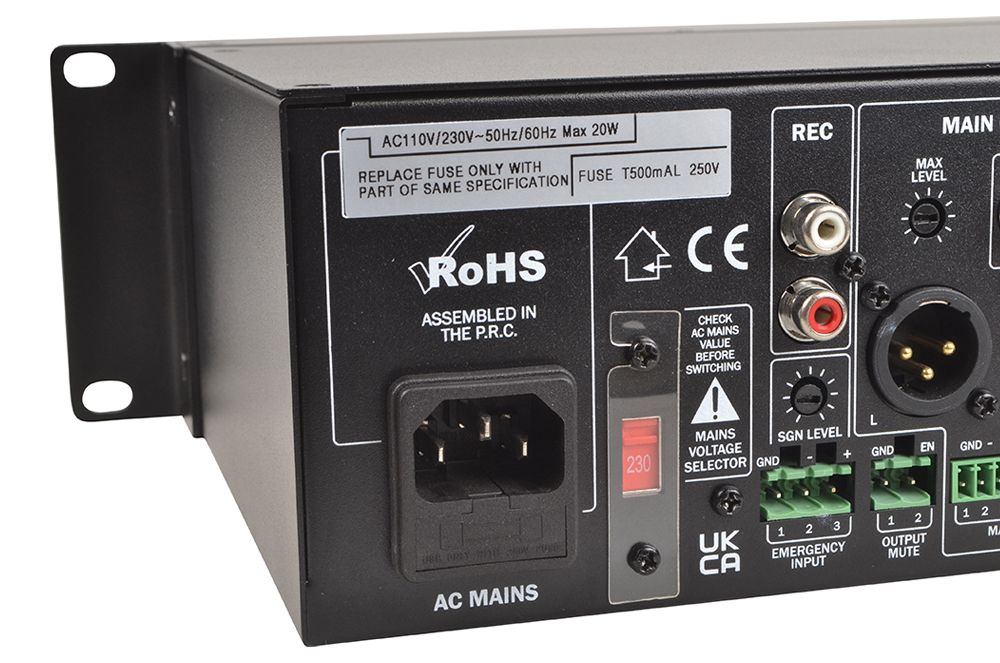

For emergency requirements, the mixer includes a rear-panel emergency input that mutes all music to prioritise an emergency message. An output mute function is also available for integration with fire alarm systems, automatically silencing the music when the alarm is triggered.

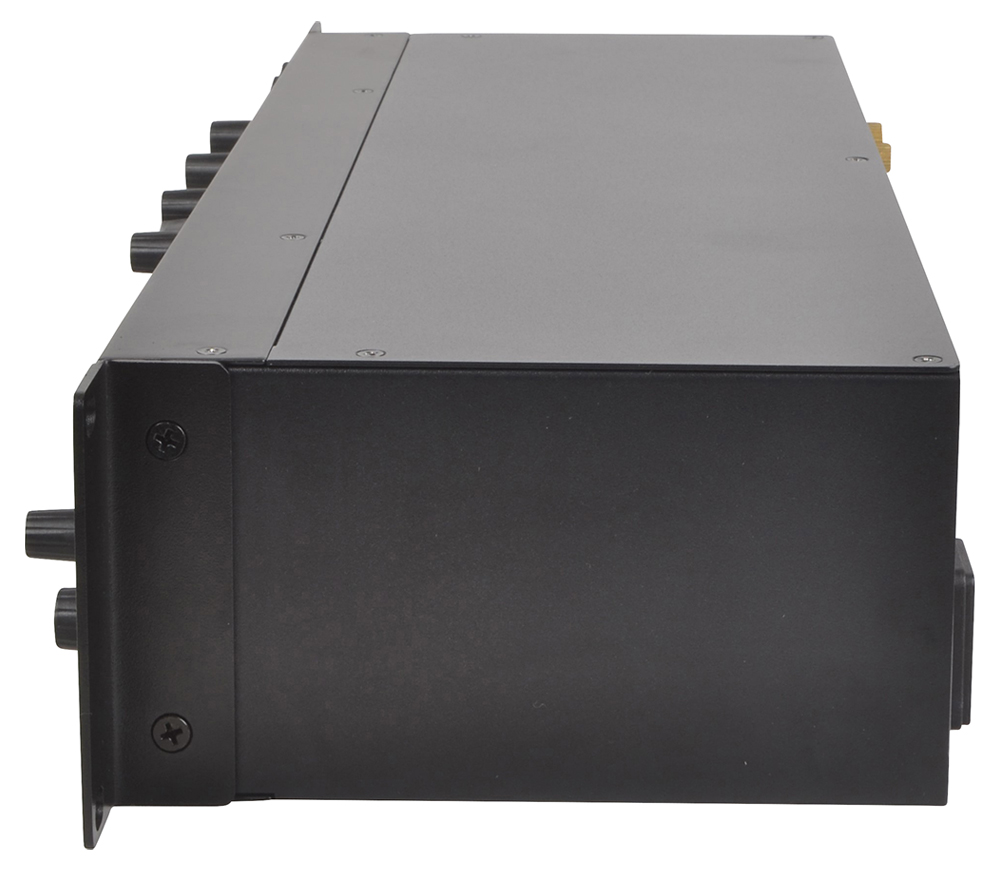

Unit Size: 2U
Dimensions: 483 x 88 x 183.5
Weight: 2.8Kg
