2 Zone Installation Mixer with 2 Mic_Line Inputs & 6 Stereo Inputs

Code: MX82
Availability: In Stock
  • 2 Balanced Mic/Line Inputs on Euroblock Connectors
  • 6 Stereo or Mono Inputs on Euroblock Connectors
  • 2 Balanced Mono or Stereo Outputs on Euroblock Connectors
  • Priority Microphone
  • Phantom Power Supply on Inputs 1 and 2
  • Gain and Tone Adjustment on Channels 1 and 2
  • Gain Adjustment on all Inputs
  • Mute Contact Possible on Outputs 1 and 2
  • Assignment of Zones 1 and 2 on each Input Channel
£354.00 inc VAT

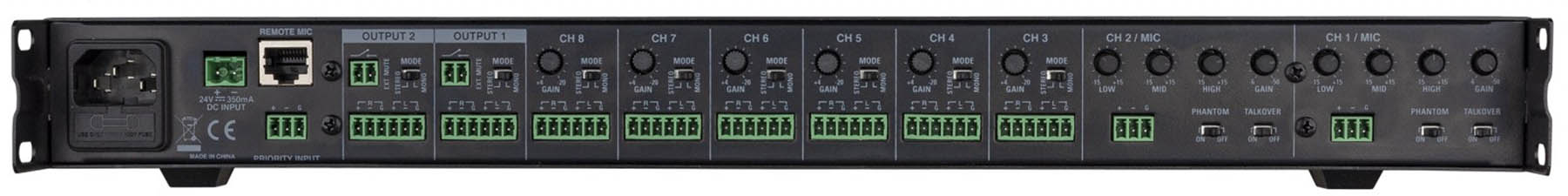

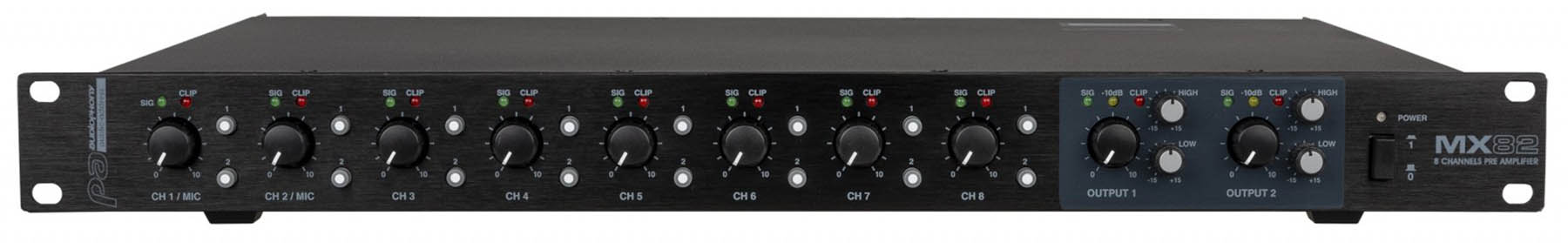

This installation mixer has 8 input channels, any of these can be routed to either or both of the zone outputs. The first two input channels have talk over, phantom power, 3 band EQ, all inputs have gain control and mono stereo switch. Settings can be pre-set on the back to eliminate user errors with adjustments to key settings. All inputs are on euro blocks making for a solder and connector free installation. There is a 24v DC power input for a battery back up supply. The mixer has simple layout with easy to use controls, each input has a volume control and two switches to select what zone the input is sent to. Each output has a volume and tone controls. A good choice for small installations in bars, restaurants and gyms.

Unit Size: 1U
Dimensions: 482 x 44 x 32mm
Weight: 9Kg
