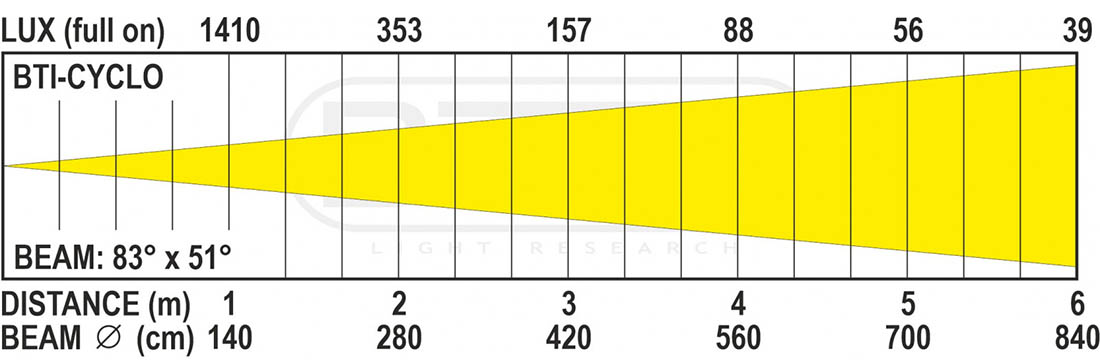

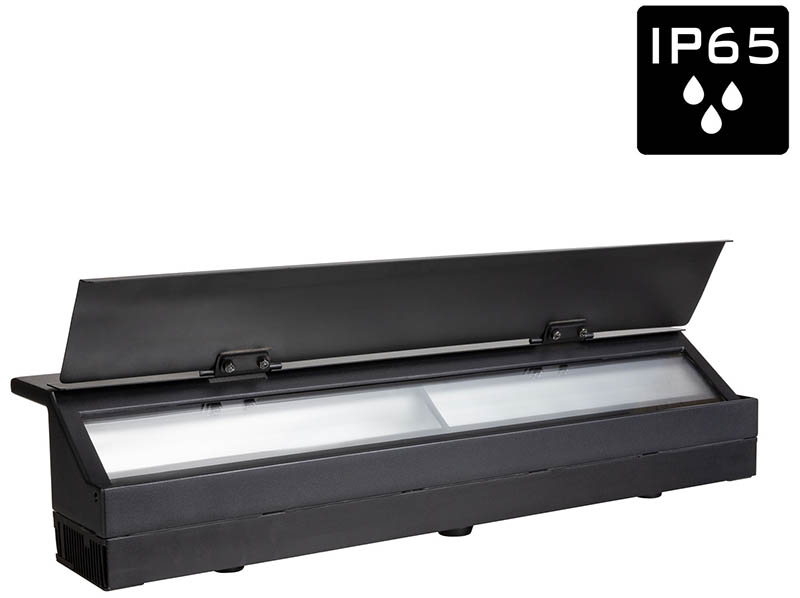

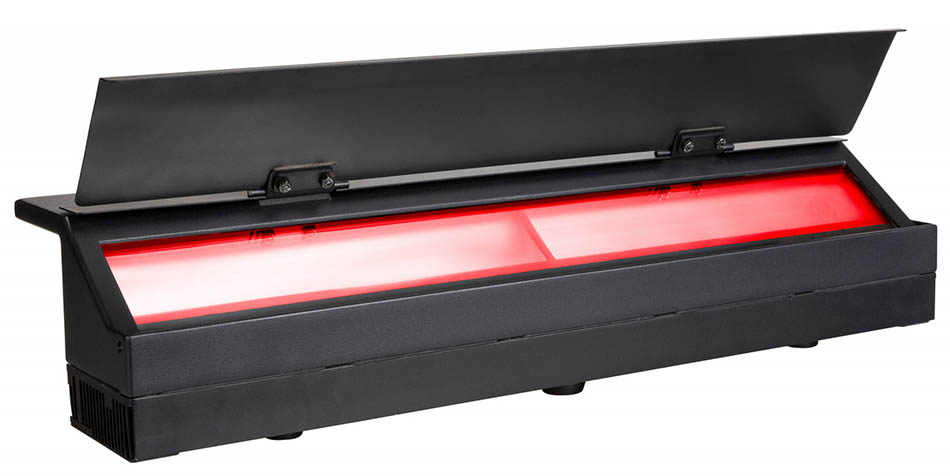

The BTI-CYCLO is a highly compact yet powerful full-colour LED cyclorama designed for both indoor and outdoor theatre stages. It features an 83° x 51° beam angle, providing versatile lighting solutions for various applications.

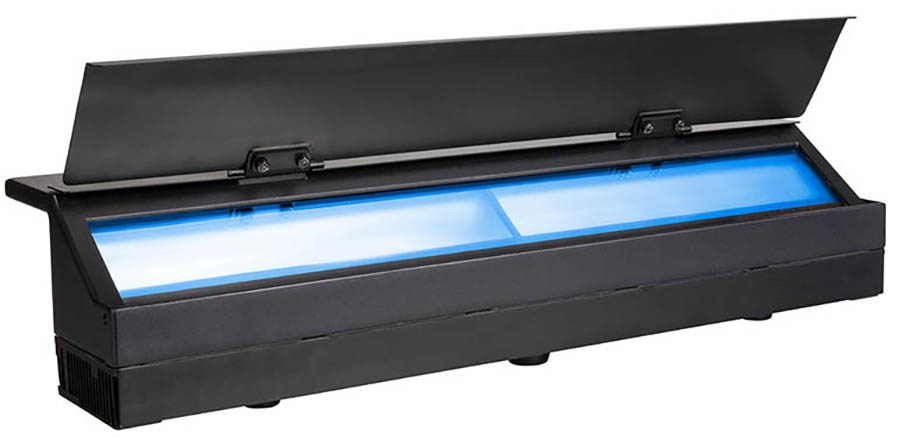

For colour backgrounds on theatre stages, the BTI-CYCLO offers effective uplighting capabilities: it can illuminate up to 3 meters high at a 1-meter distance, or up to 6 meters high at a 2-meter distance. It can also be mounted on the ceiling for downlighting, making it a flexible choice for different lighting setups. Additionally, it serves as an excellent footlight for both indoor and outdoor stages, softening heavy shadows created by overhead lighting.
This LED cyclorama eliminates the need for separate white and colour projectors by delivering perfect white light with a high CRI of over 95Ra and a range of CCT presets. It also offers a rich selection of colours with preset options. The CCS Colour Calibration System ensures consistent colour accuracy across different batches and allows it to work seamlessly with the BT-THEATRE HD2. The cyclorama provides the same CCT presets for white light, ranging from 1800K to 10000K, and includes 48 calibrated colour presets based on LEE® and ROSCO® numbering.
Equipped with a 160-watt 6-color RGBALC LED-cluster (Red, Green, Blue, Amber, Lime, Cyan), the BTI-CYCLO operates silently due to its passive cooling design, eliminating the need for a cooling fan. It can function independently without DMX control, making it suitable for use in museums, exhibition booths, and similar settings. For DMX-controlled environments, it offers six different channel modes for maximum flexibility and features RDM functionality for easy remote setup, including DMX addressing and channel mode adjustments.

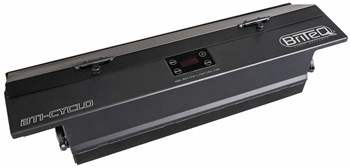

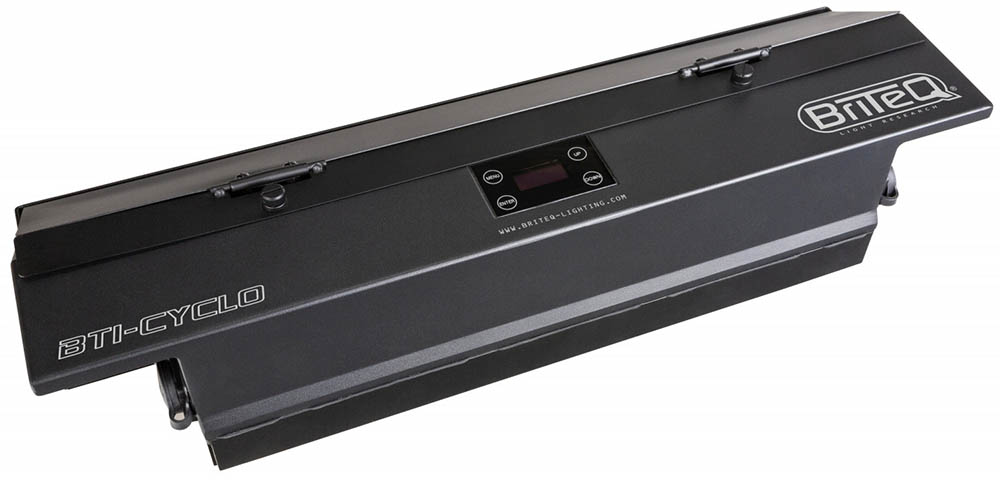

The cyclorama is designed to be flicker-free, which is ideal for TV recordings, thanks to its adjustable high LED-refresh rate. It provides two dimmer settings with varying behaviour and speed, and manual control options for dimming, colours, CCT, and zoom. An OLED display facilitates easy navigation through the settings menu. In case of a DMX failure, users can choose between blackout and freeze modes, and a lock function prevents unintended alterations to settings.

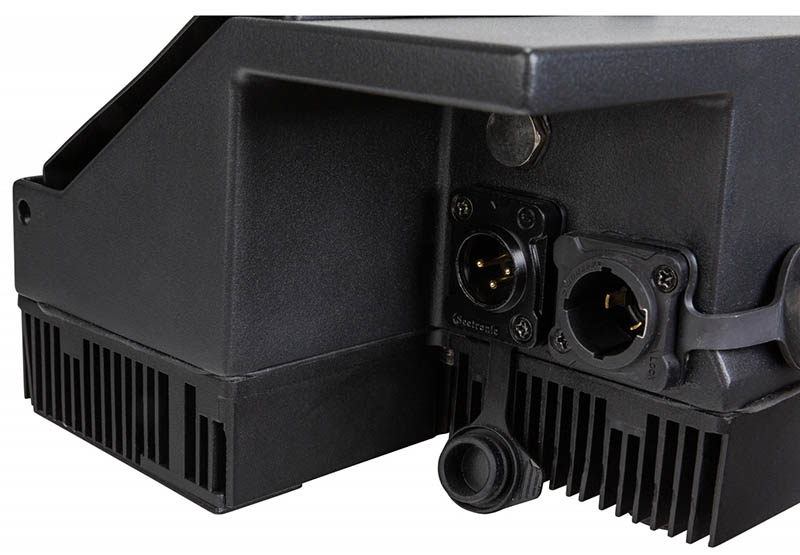

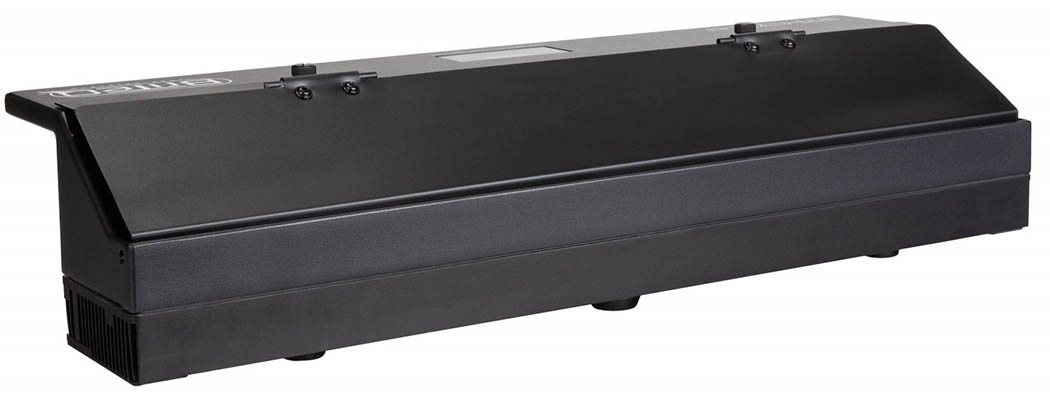

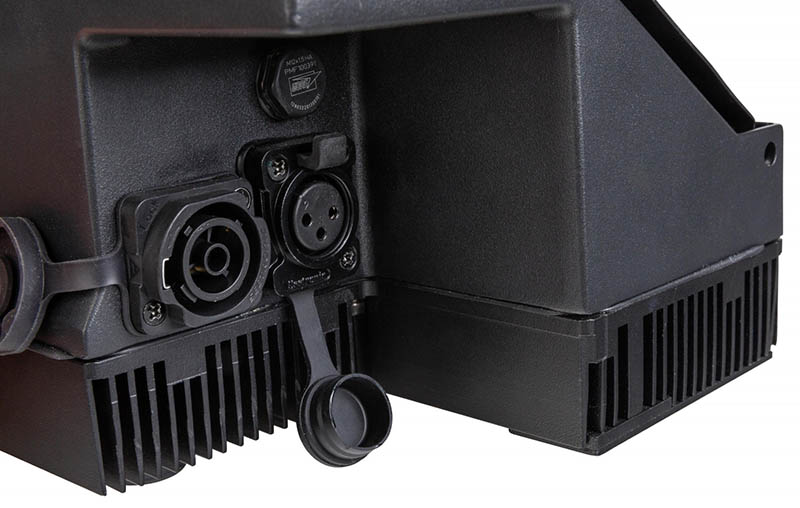

The BTI-CYCLO features a lightweight yet rugged housing and is compatible with PowerCON TRUE1 in/outputs for easy daisy chaining. Additionally, a special conversion kit allows the 3-pin DMX in/outputs to be converted to 5-pin XLR if needed(sold separately)
