Anyscene 512 DMX Scene Recall Unit 23 Scenes + Blackout

Code: AS512
Availability: In Stock 3-5 days
  • 23 Scene Programmable DMX Scene Recall Unit
  • 512 Independent Channels of DMX Control
  • Simple to Programme from any DMX Lighting Desk or Controller
  • Dimmable Front Panel Status LED’s
  • Standard UK Double Surface Box
  • 2 x RJ45 Category 5 Connection Provides DMX Data & Power
  • Automatic DMX Backup Feature
£304.00 inc VAT
Add

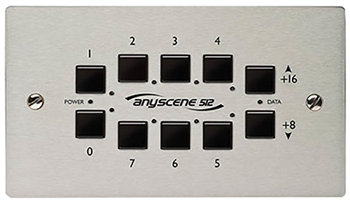

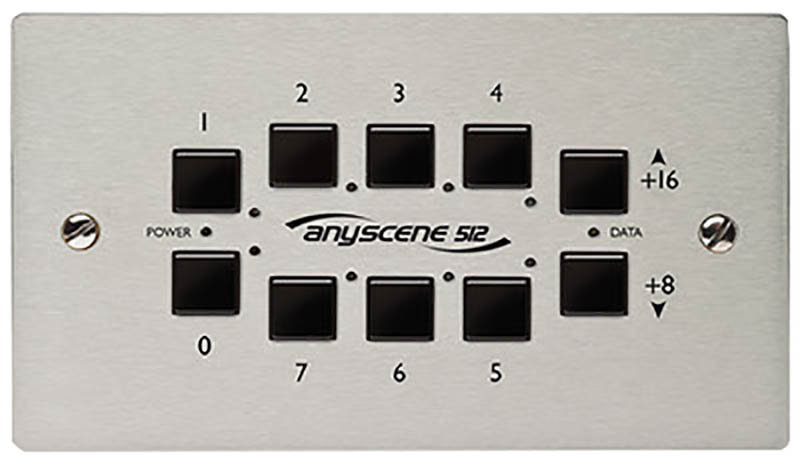

Stylish and easy to use programmable DMX scene recall unit. There are 23 programmable scene plus ‘blackout’ with full status indication, each scene can use all 512 DMX channels. The panel is super easy to programme via any standard DMX controller whilst powered via AS180 power supply or most Anytronic dimmer packs. Fade rate between scenes of 2.5,20,40,60 seconds is selectable via DIP switches on the PCB. The touch panel is brushed stainless steel and fits into any 32mm double pattress back box. The panel has two RJ45 connections, one to connect to the AS180 power supply/dimmer pack and one to connect to the next Anyscene touch panel. Up to 4 panels can be connected together and these can be programmed to the do same as the first or different to the first.

Dimensions: 148 x 86 x 15mm
Weight: 14g
