DMX Splitter 3/5 Pin 2 Way

Code: SPLIT35
Availability: Expected Soon

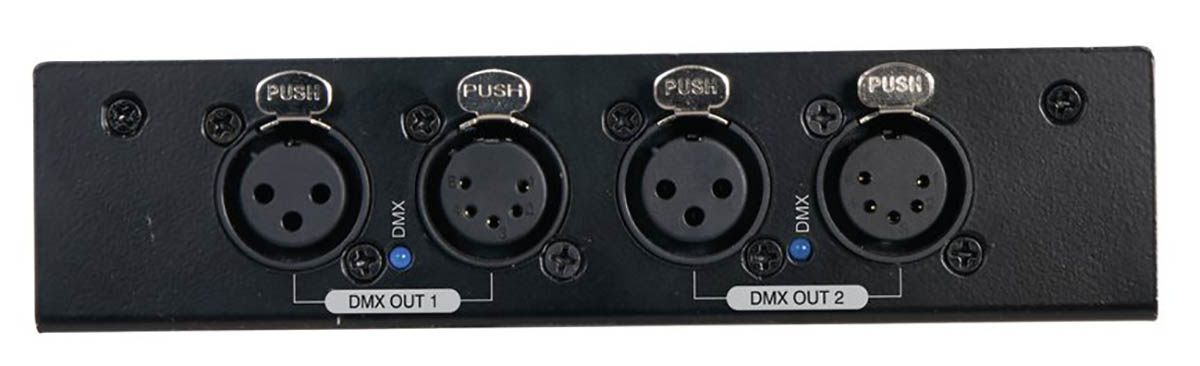

  • Compact Splitter with 3 & 5 Pin XLR Terminals
  • LED Status Indicator
  • Rugged Metal Housing with M10 Threaded Inserts
  • Fixed Power Cable
£69.95 inc VAT

The perfect solution for many DMX line problems: This DMX splitter divides any 3/5 pin DMX chain into 2 separate lines, which will not interfere with each other. Problems on one line will not influence the other line. This small unit can easily be accommodated in any lighting chain, 1 DMX input + 2 DMX outputs, with 3/5 pin XLR connectors. Power lead included. The splitter has a M10 thread for easy connection of a lighting clamp making hanging from a lighting gantry possible.

Power Supply: 100-240 V AC, 50/60 Hz
Power consumption: 1W
DMX Output: 3/5 Pin XLR
Dimensions: 160 x 80 x 40mm
Weight: 430g
