DMX Splitter 2 Way Powercon and 3 Pin DMX

Code: DS123
Availability: In Stock
  • Divides any DMX Chain into 2 Separate Lines that will not Interfere with each Other
  • Maximum Security thanks to Complete Galvanic Isolation between all DMX In/Outputs
  • Booster Function

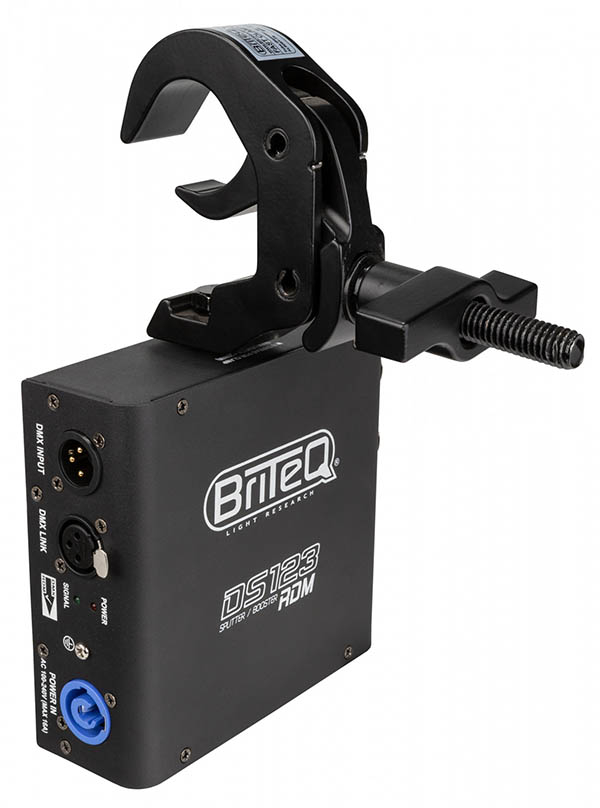

  • Compatible with any Standard Truss Clamp with M10 Thread
  • 3 Pin DMX & Powercon Connections
£122.00 inc VAT

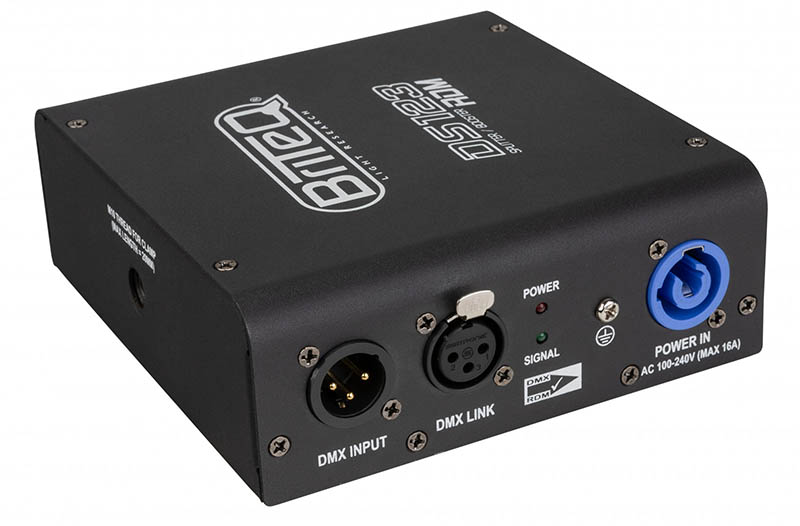

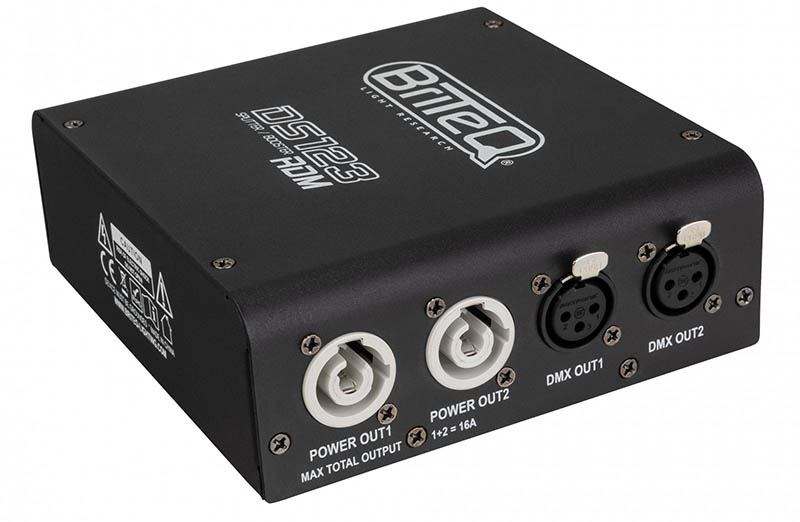

This product is a DMX splitter that provides a solution for many DMX-line problems. It is designed for professionals and has a compact size that can be hidden anywhere, making it perfect for rental and install applications. The splitter divides any DMX-chain into two separate lines, ensuring that problems on one line will not interfere with the other line. It also has complete galvanic isolation between all DMX inputs and outputs, which maximizes security. The splitter is 100% RDM compatible for bidirectional DMX communication, and its booster function makes the DMX installation more reliable and flexible to set up. Its connections include one input with DMX 3pin and a 16A PowerCON-compliant Seetronic connector, as well as two outputs, each with DMX 3pin and a 16A PowerCON-compliant Seetronic connector.

Power Supply: 100-240Vac
Power Consumption: 1W
DMX Input: 3 Pin
DMX Output: 3 Pin

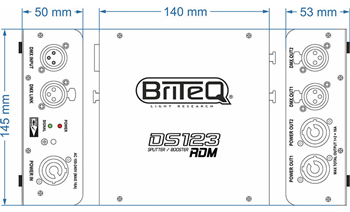

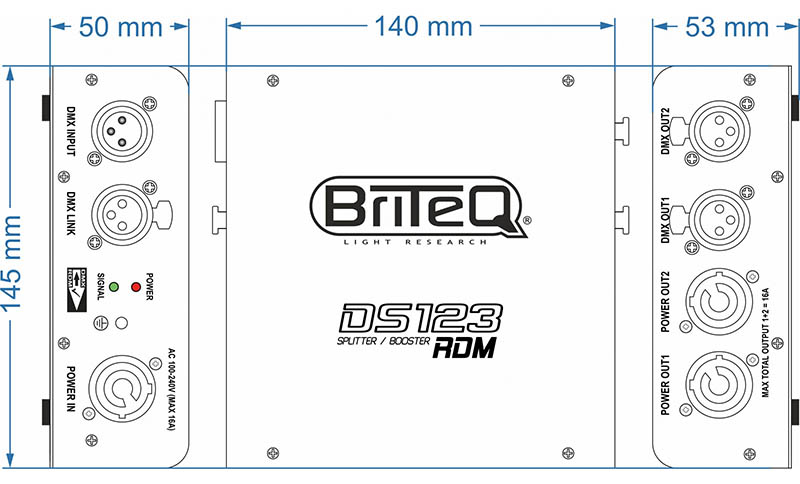

Dimensions: 140 x 145 x 50mm
Weight: 750g
