Sweetlight D512S DMX Lighting Software Interface

Code: D512S
Availability: Expected Soon
  • Lighting Software Capable of Controlling 512 DMX Channels
  • Use with Free Sweetlight Software
  • Packed with Features for a Range of Applications
  • Suitable For Windows or MAC
£183.00 inc VAT

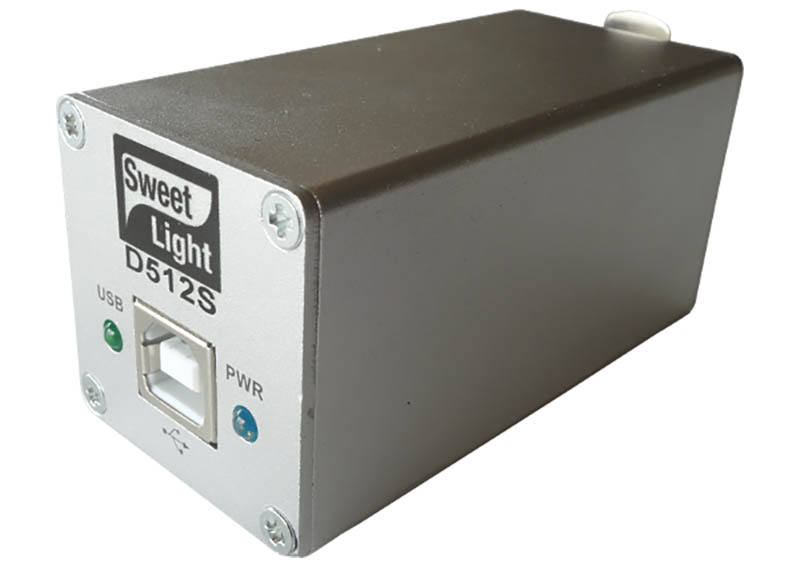

The interface D512S allows you to use the Sweetlight lighting software with 512 DMX channels. Connect the unit to a PC or laptop and download the free software from www.sweetlight-controller.com to get started. The software can be used for a multitude of applications, whilst the programming and controlling of lights is quick & easy to set up.

Stage designers can select buttons for pan/tilt movements, stack colour/gobos pre-sets, adjusts speed faders and dimmers and drive all buttons and sliders from any suitable midi device. Theatre engineers can select a scene from a list, select the next scene with the "GO" button and adjust fade in and out times easily. Scenes are easily reorganised whilst another is playing. Nightclubs & evening venues can utilise the software with just a few “Macro” buttons, which allow a DJ to trigger, in one click, several scene buttons simultaneously (they can also be triggered randomly or in chase), the result being an amazing lightshow for a long period of time! For mobile DJs & entertainers, they can memorise the key pan/tilt positions for fixtures as “palettes”, then simply build scenes with these "palettes". You can then just update the palettes in the software and the lightshow will be ready for the next stage/ performance.

Integration for all applications is seamless, the software will work on MAC or windows platforms. No external libraries from third parties and all with a fast software response & simple install/uninstall process. Software updates are free and there is a free product forum to help you with any technical issues you may have (Of course you can also contact our technicians for guidance).

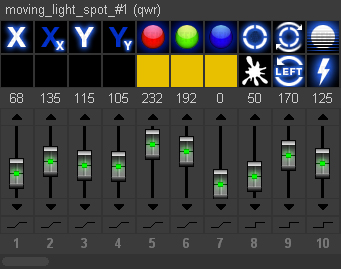

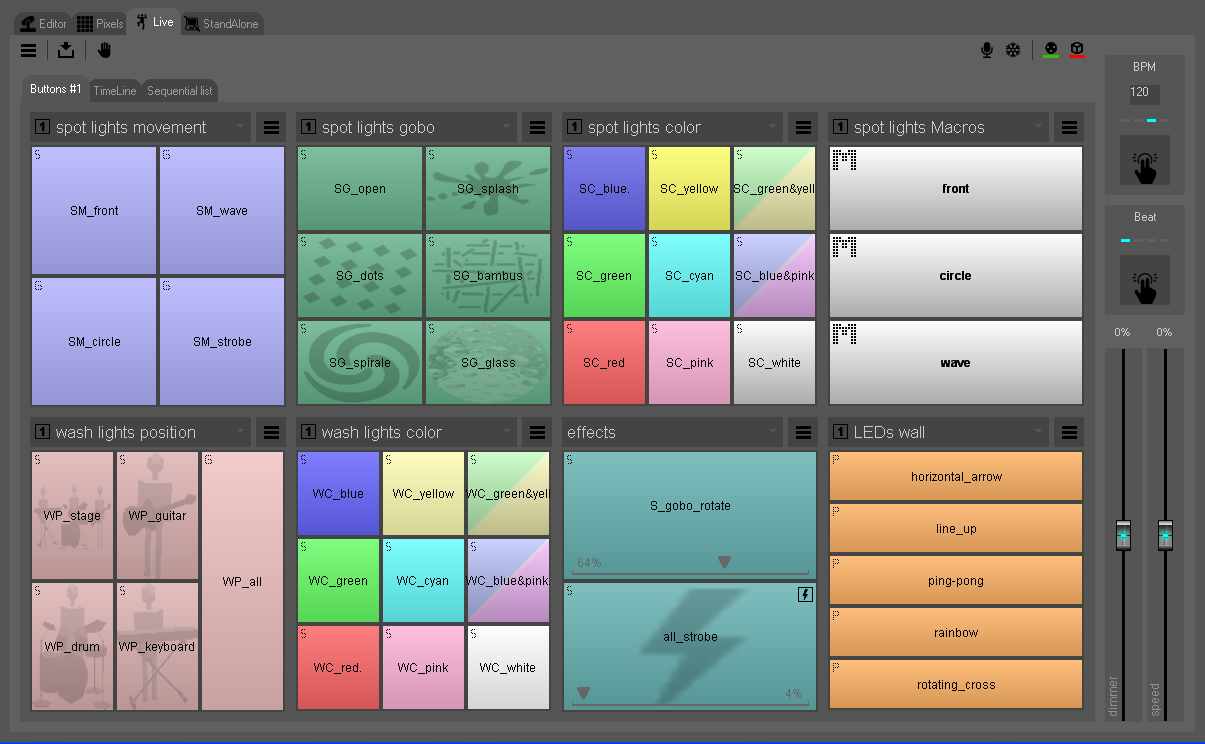

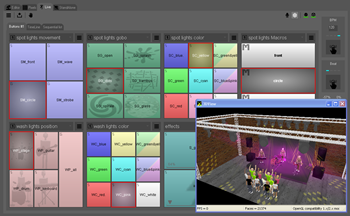

Using the software is straightforward. The user can pick a fixture from the built-in library or create your own. You can adjust channel level & fade modes across a group of fixtures or stack steps to build a chase. Complex pan and tilt movements are created with the generator function. Use the live screen to organise all your scenes and chases. The live screen is customisable to suit the users needs. The user can synchronize light shows with light and audio files. Users can also build a 3D view of your rig, this allows you to pre- programme light shows at home.

All-in-all, this is very versatile lighting software which enables both basic and sophisticated control over any type of DMX fixture.

Power Supply: USB

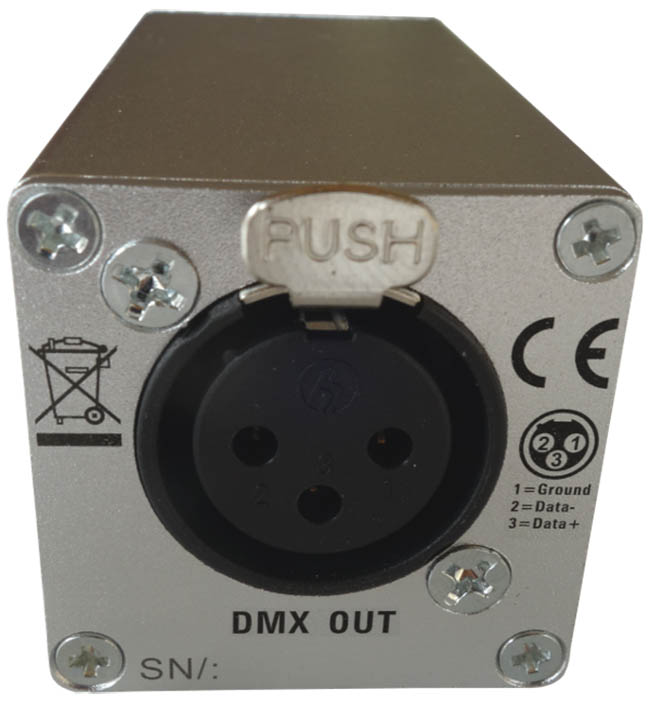

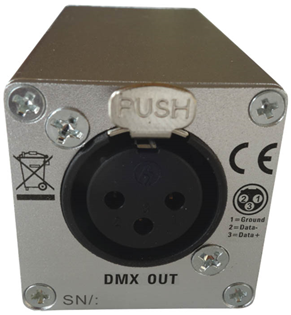

DMX: 3 Pin XLR Input/Output
