AR84 Digital Stage Snake 8 Inputs 4 Outputs 19" Rack Mountable for Allen & Heath QU Mixers

Code: ALLAR84
Availability: In Stock - Del 1-2 Days
  • AudioRack Compatible with Qu Mixers
  • 8 Mic Preamps on XLR's
  • 4 XLR Line Outputs
  • dSNAKE Connection Ethercon Port
  • dSNAKE Provides Control to the Remote Preamp
  • All Mic Preamps are Scene Recallable
  • Rack Mountable
£785.00 inc VAT

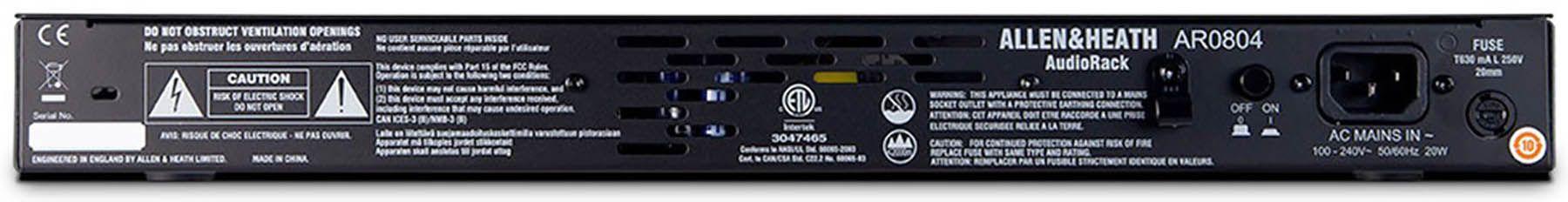

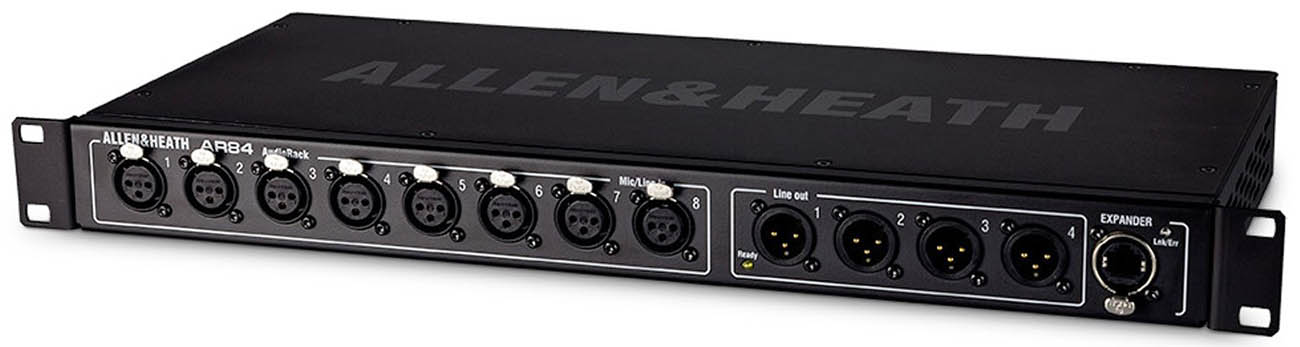

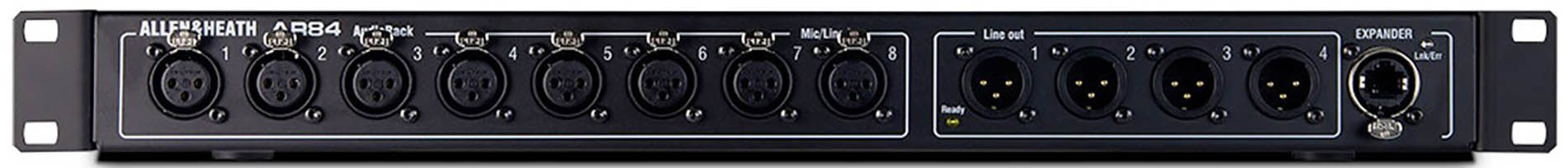

Introducing the Allen & Heath AR84 Expander, a modern solution replacing traditional analog stage snakes. With this unit, you can extend your setup using just a single Cat cable, reaching distances of up to 100 meters. Designed for rack mounting, this 19-inch device offers:

8 Mic Preamps: Experience up to +60dB of gain, with the flexibility of a -20dB pad for line level sources.
4 Line Outs: Enjoy balanced, relay-protected line outputs via XLR connections.
Plug-and-Play: No complex configurations needed—simply connect to your mixer and you're good to go. Firmware updates are seamlessly handled by the mixer.
Place the AR84 wherever you need it, even up to 100m away, using a single RJ45 Cat cable. Additionally, an extra RJ45 output port allows easy connection to other compatible expanders.

Power Supply: 100-240Vac, 50/60Hz
Power Consumption: 20W
Inputs: 8 (XLR)
Outputs: 4 (XLR)
Dimensions: 482.6 x 220 x 48mm
Weight: 3Kg
