Allen & Heath Audio Rack for QU, SQ & Avantis Mixers

Code: AHAR2412
Availability: Expected soon
  • 24 Remote Mic Preamps on Balanced XLR
  • 12 Balanced XLR Line Outputs
  • dSNAKE Connection over a Single Cat5 Cable (up to 100m)
  • Remote Preamp Control with Scene Recall
  • Expander Port for Daisy-Chaining AR84 or AB168
  • Dedicated ME Personal Monitor Port
  • Locking EtherCon Connectors
  • Compatible with Qu, SQ, Avantis, and AHM-64
  • 3U Rack-Mountable Chassis
£1310.00 inc VAT
Add

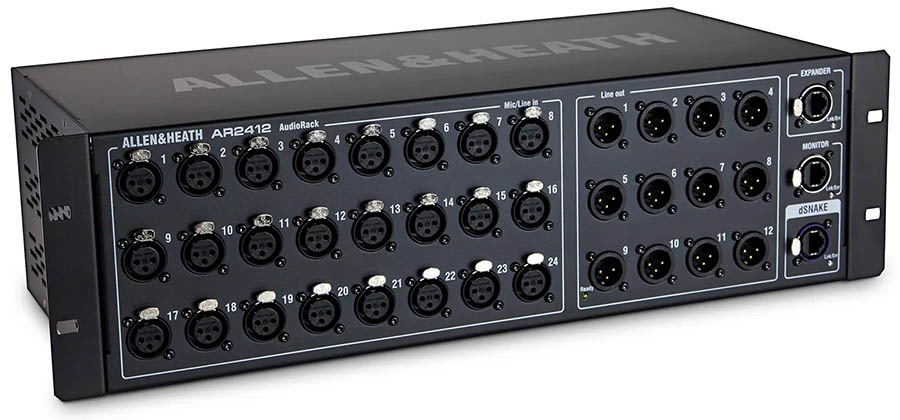

The Allen & Heath AR2412 is a 48kHz remote AudioRack featuring 24 XLR mic preamps and 12 XLR line outputs. Compatible with Qu, SQ, Avantis mixers, and the AHM-64 matrix processor, it connects via a single Cat5 using the dSNAKE protocol, providing up to 100m of distance between the mixer and I/O. The AR2412 supports remote preamp control, scene recall, personal monitoring via ME-1, and expansion through the AR84 or AB168 AudioRacks. It’s the ideal remote stagebox solution for fixed installs, live sound, and touring.

Power Supply: 100-240Vac, 50/60Hz
Power Consumption: 70W
Inputs: 24 (XLR)
Outputs: 12 (XLR)
Dimensions: 482 x 207 x 137mm
Weight: 6.4Kg
