Cat6 LSZH Network Cable 305m - Choice of Type

Code: CAT6LSZH
Availability: Please select an option
  • Low Smoke Zero Halogen Sheath Material Compliant to RoHS Minimises the Risk of Thick Black Mmoke & Poisonous Fumes in the Event of a Fire
  • Oxygen Free Solid Copper Conductor
  • CAT6LSZH-UTP is Supplied in an Easy-Pull Dispensing Box
  • Passes Cat6 Fluke Test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 Standard
  • HDBaseT Compliant
Please Select:
TYPE
From £138.00 inc VAT

Cat6 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. The CAT6LSZH-UFTP has individual pair aluminium foil screens and the CAT6LSZH-SFTP has individual pair aluminium foil screens with overall braided aluminium screens to provide protection from any pair or alien crosstalk Supplied in dispensing box (CAT6LSZH-UTP) or wooden drum reel (CAT6LSZH-UFTP CAT6LSZH-SFTP) and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

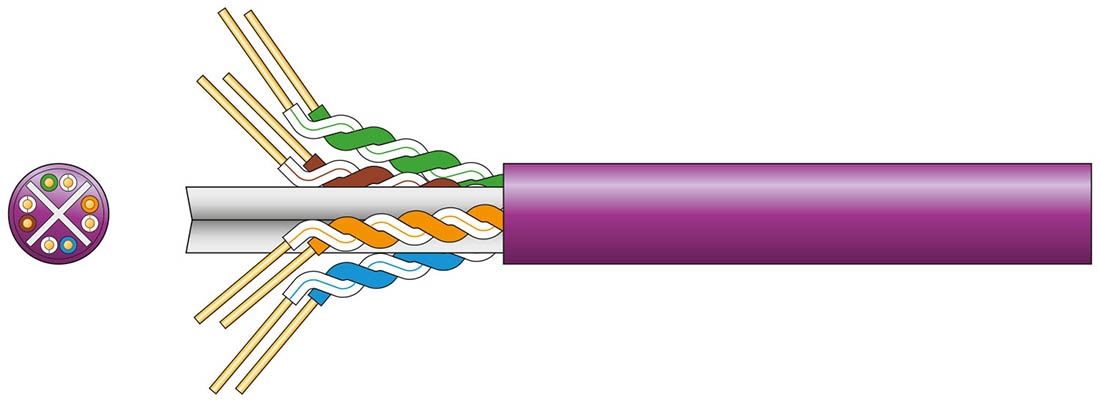

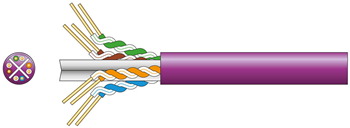

CAT6LSZH-UUTP
Strands: 8 x 1/0.54mmØ ±2%
Cable Diameter: 5.8mmØ
Cable Length: 305m
Weight: 12.7Kg

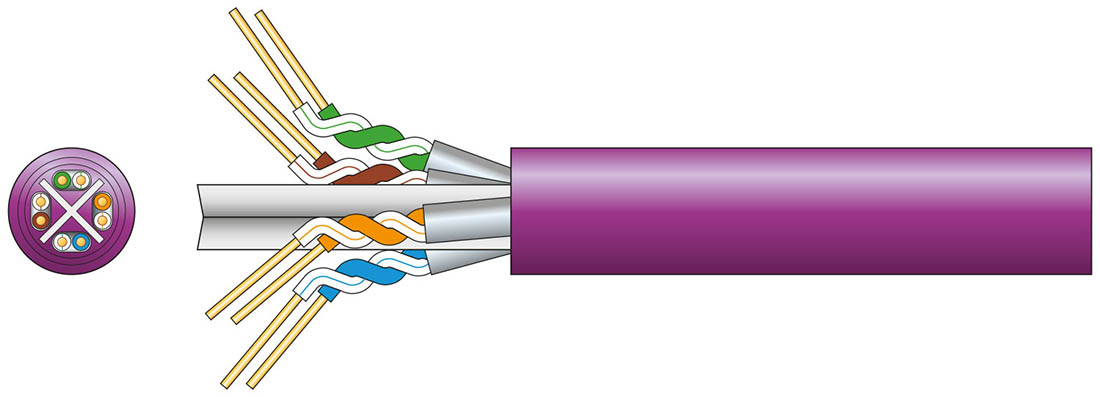

CAT6LSZH-UFTP
Strands: 8 x 1/0.565mmØ ±2%
Cable Diameter: 7.5mmØ
Cable Length: 305m
Weight:14.5Kg

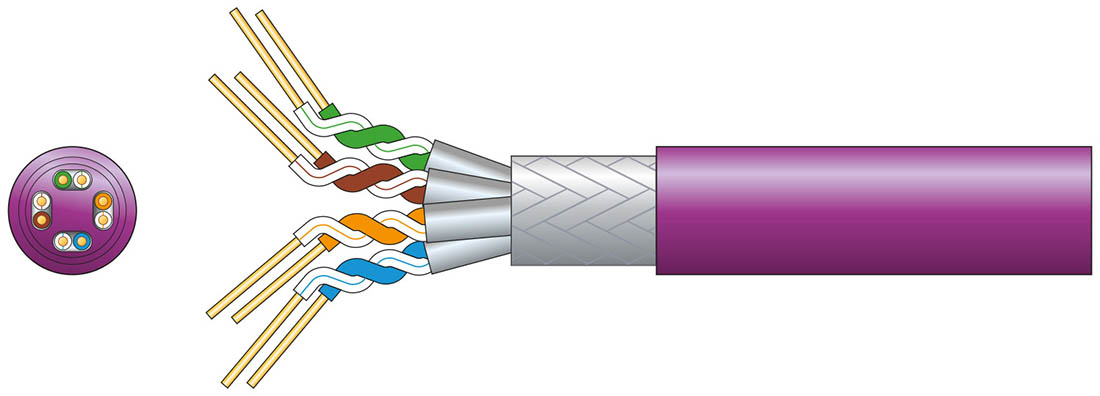

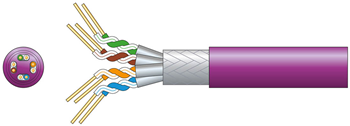

CAT6LSZH-SFTP
Strands: 8 x 1/0.565mmØ ±2%
Cable Diameter: 7.5mmØ
Cable Length: 305m
Weight: 17.4Kg
