BTI-BEAMBAR18 LED Batten 18 x 25W RGBL LEDs by BriteQ

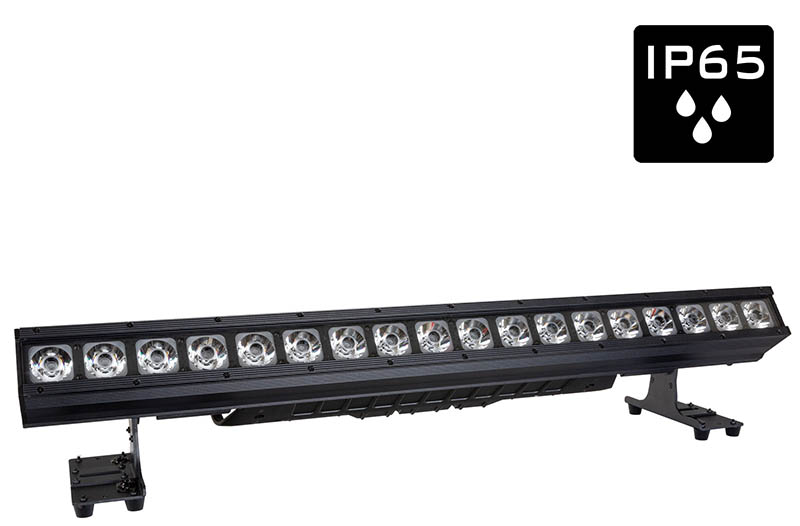

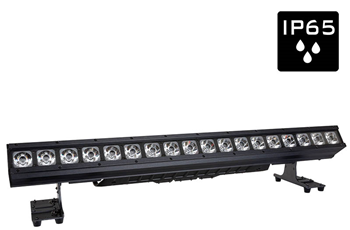

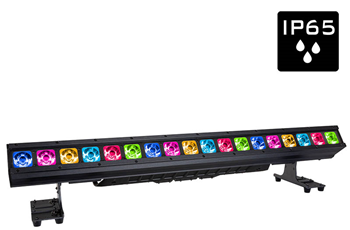

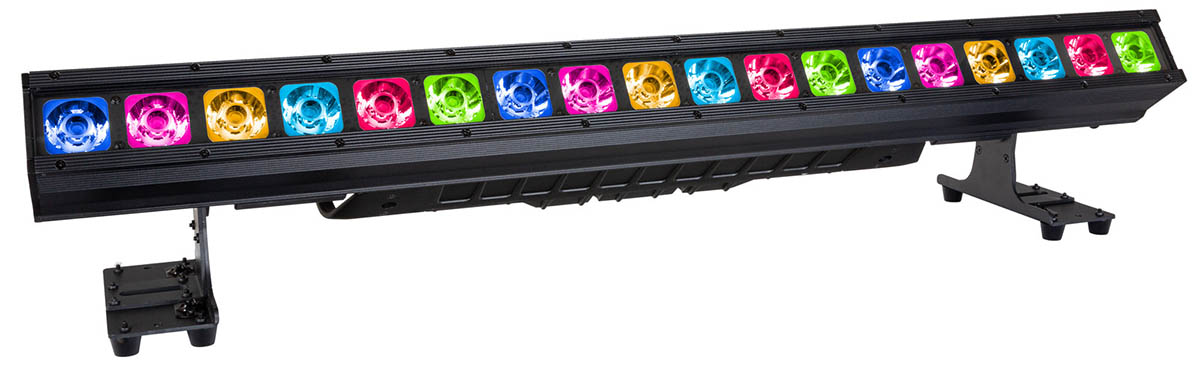

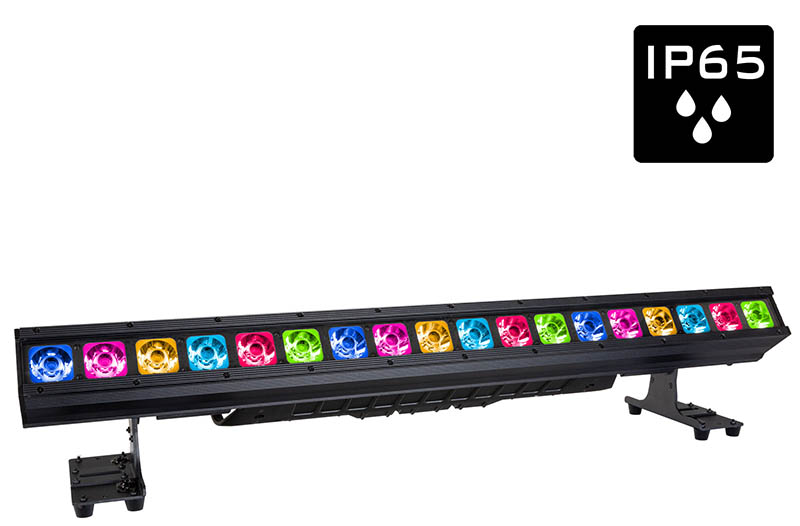

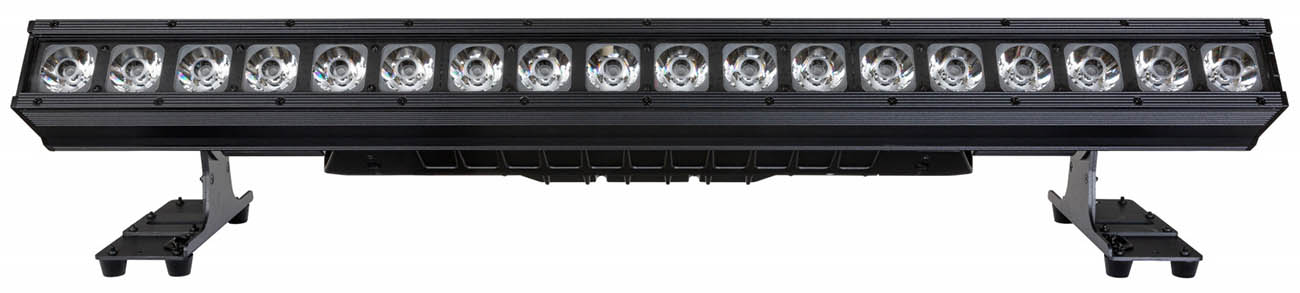

The BTI-BEAMBAR18 is a highly versatile 1-meter long outdoor LED Pixel mapping bar designed for a range of applications, including rental jobs, TV studios, concert stages and theatres. It features 18 highly effective 6° narrow lenses paired with powerful 25W RGBL LEDs, providing excellent performance and vibrant colour output. With IP65 protection, the fixture is suitable for outdoor use.

The bar comes with a magnetic frost filter that transforms it into a soft wash light. It offers full pixel control through an intuitive effect engine or via DMX, Art-Net, or sACN protocols. Users can choose between 11, 20, 24, 76, or 96 DMX channels and benefit from RDM functionality for easy remote setup. It includes smooth 16-bit dimming with adjustable speed and three different curves, along with built-in CCT presets ranging from 1700K to 8000K.

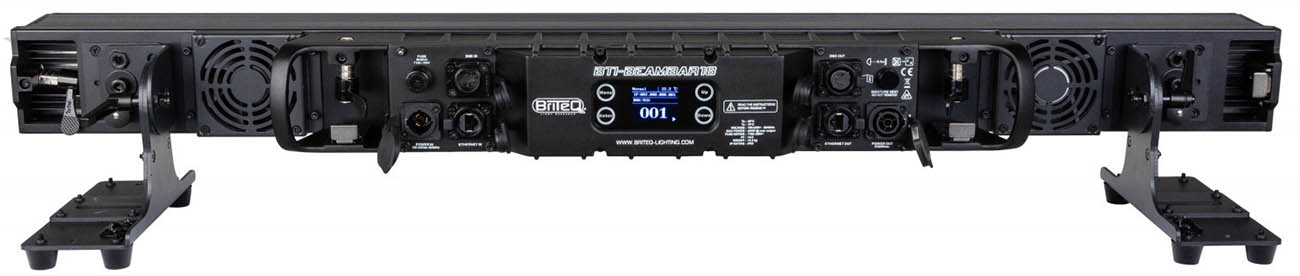

The LED refresh rate is adjustable between 1200Hz and 25000Hz, ensuring high-quality performance in TV applications. A quick-lock system allows for easy mounting of the projectors either horizontally or vertically. An OLED display with touch buttons facilitates straightforward navigation, and Seetronic IP65 5-pin XLR connectors, which can be converted to 3-pin XLR with the BT-XLR5TO3 kit(sold separately). For connectivity, it includes Seetronic IP65 RJ45 connectors for Art-Net and sACN, with built-in Art-Net to DMX conversion.

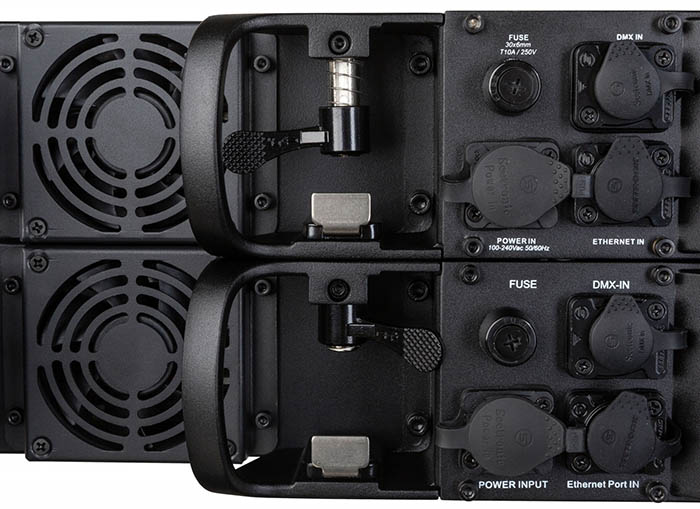

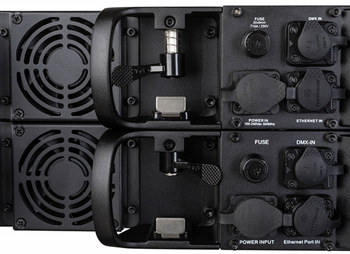

Power connections are made via Seetronic IP65 TRUE1 compatible connectors, and software updates can be performed through a standard RJ45 cable. The fixture also features strong tilt brackets and included omega brackets for quick and efficient installation.
