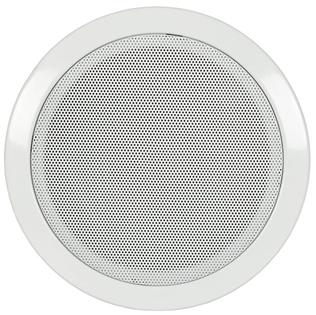

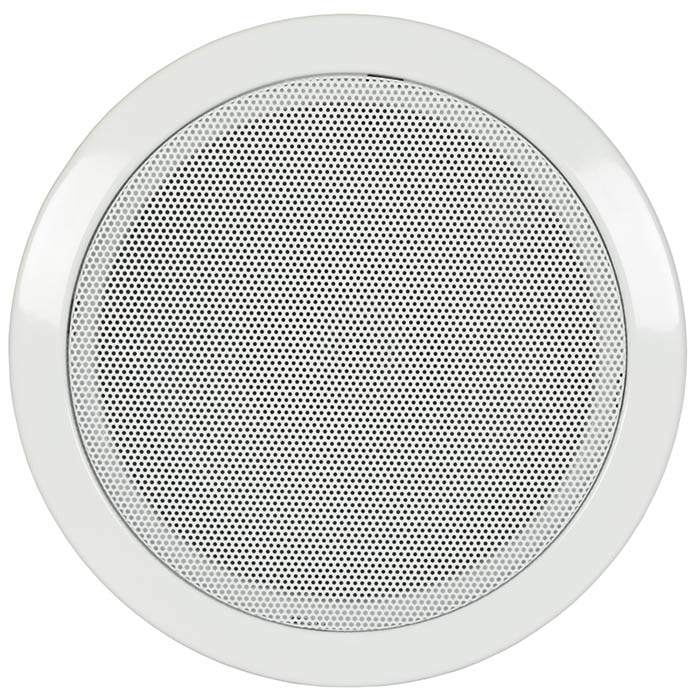

Ceiling Speaker with Fire dome Available in Either 5.25" or 6.5",

Code: CFD
Availability: Please select an option
  • EN54-24 Certified
  • Supplied with Flush Mount Fire Dome
  • 4 x 100V Volume Tappings
  • Spring Loaded Speaker Retainers
  • All Metal Frame and Basket
  • Fire-Resistant Cable to 95°C
  • Ceramic Screw Terminals
Please Select:
Driver Size
From £37.05 inc VAT

100V ceiling speakers, available in either 5.25" or 6.5", both offer a rear dome housing to provide an effective barrier against fire.

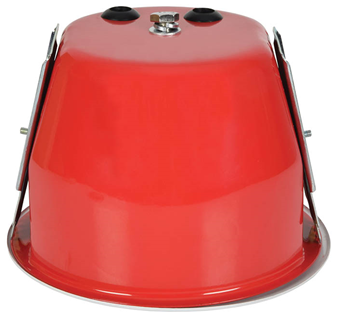

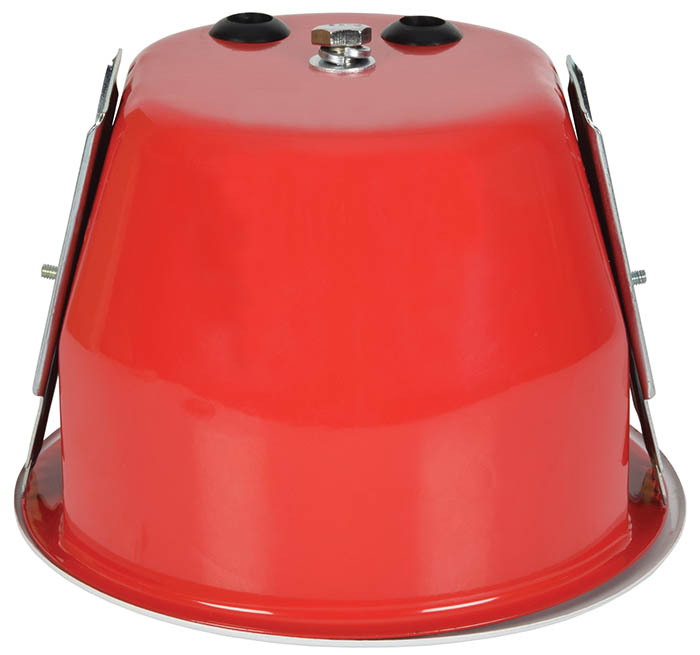

The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spring loaded wire fitting for the speaker unit to pull into the dome for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tapping's at 100V.

Certified to EN54 standard for compliance with fire detection and alarm systems requirements.

Tappings: 0.75W, 1.5W, 3W & 6W
SPL: 92dB
Frequency Response: 130Hz - 15kHz
Cutout: 160mmØ
Driver: 5.25"
Dimensions: 120 x 180mmØ
Weight: 1.23Kg

Tappings: 0.75W, 1.5W, 3W & 6W
SPL: 92dB
Frequency Response: 120Hz - 18kHz
Cutout: 204mmØ
Driver: 6.5"
Dimensions: 135 x 235mmØ
Weight: 1.58Kg
