100V Ceiling Speaker - Choice of Size

Code: KVT
Availability: Please select an option
  • 3 x 100V Volume Tappings via 4 Core Cable
  • 8 Ohm Optional (Bypass Transfomer)
  • Magnetic Low Profile Steel Grille
  • Heavy Duty Glass-Aramid Cone
  • Supplied Individually
Please Select:
From £51.00 inc VAT

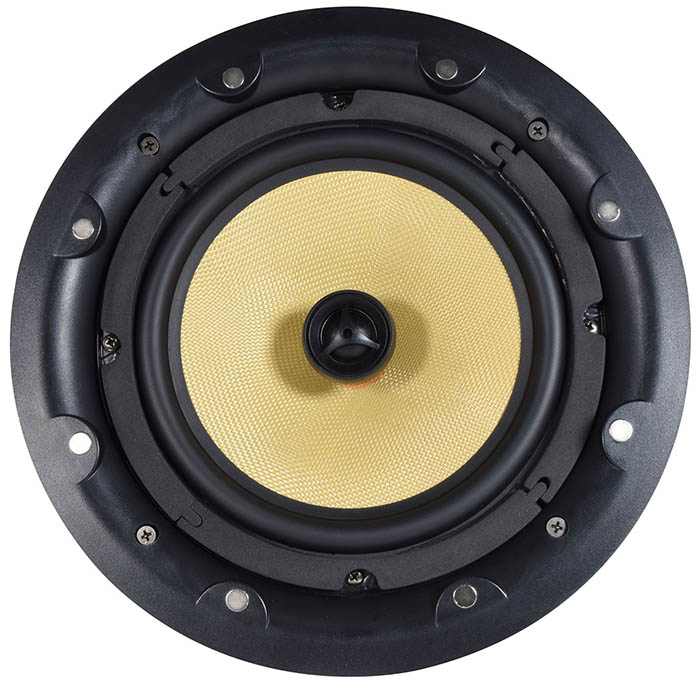

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tapping's. High performance ceiling speakers to integrate with 100V voice and background music systems.

Impedance: 500, 1k, 2k Ohms or 8 Ohms
Tappings: 5W, 10W, 20W or 8 Ohms (20W)
Max SPL: 100dB
Frequency Response: 80Hz-20kHz
Cutout: 180mm
Mounting Depth: 80mm
Dimensions: 80 x 206mm
Weight: 1.5Kg

Impedance: 333, 666, 1.3k Ohms or 8 Ohms
Tappings: 7.5W, 15W, 30W or 8 Ohms (60W)
Max SPL: 103dB
Frequency Response: 50Hz-20kHz
Cutout: 205mm
Mounting Depth: 95mm
Dimensions: 94 x 232mm
Weight: 1.9Kg

Impedance: 250,500, 1.3k Ohms or 8 Ohms
Tappings: 10W, 20W, 40W or 8 Ohms (80W)
Max SPL: 105dB
Frequency Response: 50Hz-20kHz
Cutout: 255mm
Mounting Depth: 110mm
Dimensions: 110 x 281mm
Weight: 2.1Kg
